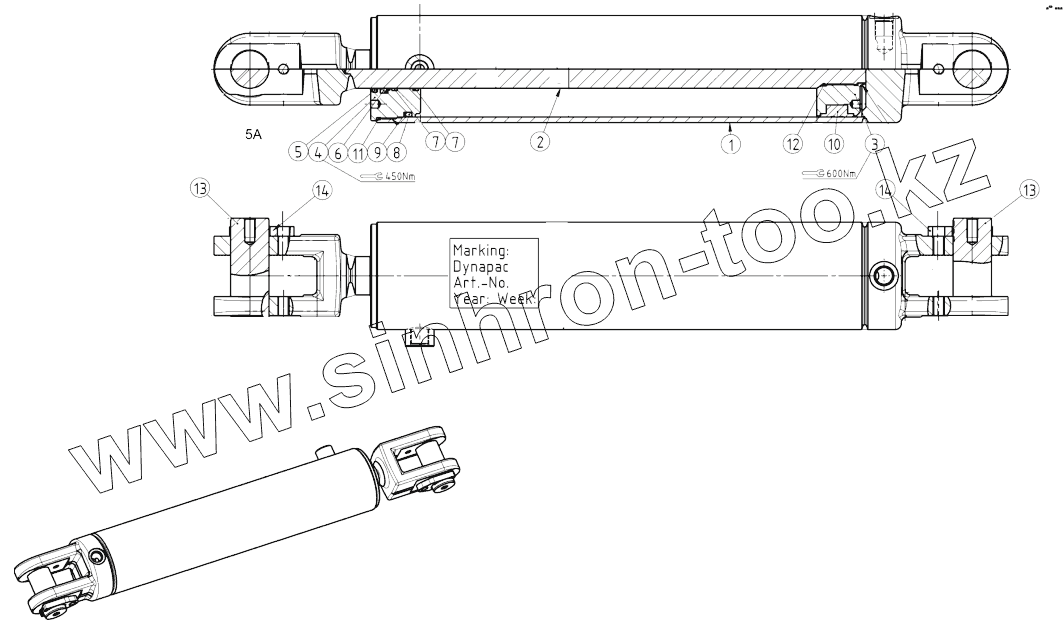

Позиция на иллюстрации
Заводской номер детали
Название детали
4812121948
4812121948
Hydraulic cylinder
1
Cylinderpipe
Cylinder pipe
2
Pistonrod
Piston rod
3
Piston
Piston
4
Guideblock
Guide block
5A
4700950417
Seal kit
5
Wiper
Wiper
6
Rodseal
Rod seal
7
GuideRing
Guide Ring
8
O-ring
O-ring
9
Backupring
Backup ring
10
Pistonseal
Piston seal
11
O-ring
O-ring
12
O-ring
O-ring
13
Pin
Pin
14
Washer
Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
