Каталог запасных частей к технике: DYNAPAC CA252D. Scraper

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Service kits 939568 Service kit 50 h 939569 Service kit 500 h 939570 Service kit 1000 h 938558 Steering hitch kit 938894 Eccentric shaft kit 938891 Drum rotation kit 938880 Shock absorber kit, drum Frames Scraper Scrapers, Urethan Rubber Up to 66X10316 Scrapers, Urethan Rubber From 66X10317 Scrapers, Spring Steel Up to 66X10316 Scrapers, Spring Steel From 66X10317 Hitch Structure Hood latch control Option Noise suppression, air inlet Option Drum shroud From 66X10317 Drum Drum cartridge Up to 66X10574 Drive side Drum cartridge From 66X10575 Drive side Drum cartridge Up to 66X10574 Vibration side Drum cartridge From 66X10575 Vibration side 372987 Drum gear Engine Up to 66X10329 Deutz BF4M2012C Engine From 66X10330 Deutz BF4M2012C Cooling system Cooling system Combustion air system Up to 66X10262 Combustion air system From 66X10263 Fuel system Exhaust system High mounted exhaust system Rear axle and wheels Up to 66X10466 Rear axle and wheels From 66X10467 Up to 66X10519 Rear axle and wheels From 66X10520 383857 Rear axle Differential with limited slip Differential housing and brakes Planet gear 383856 Rear axle No-Spin, Option Differential with No-Spin Planet gear Propulsion system, Front 371509 Propulsion motor Propulsion system, Rear 374137 Propulsion motor Up to 66X10287 373361 Propulsion motor From 66X10288 Vibration system 380145 Hydraulic motor, vibration Steering system 392002 Steering cylinder 375031 Steering cylinder Up to 66X10572 372424 Pilot valve, steering Brake system Hydraulic oil tank Hydraulic oil tank Central test panel hydraulic Dual speed drum drive Option Electric system Relay and Fuses Instrument box Instrument panel Main Instrument panel Upper left Instrument panel Upper right Instrument panel Lower left Instrument panel Lower right Emergency stop panel Up to 66X10287 Emergency stop panel From 66X10288 Working lights Option Driving lights Option Rotating beacon Option Compaction meter Option Up to 66X10285 Compaction meter Option From 66X10286 Speedometer and frequency meter Up to 66X10327 Option Speedometer and frequency meter From 66X10328 Option Tachograph, platform Option Tachograph , cab Option Tachograph, simple cab Option Back-up alarm Up to 66X10374 Option Back-up alarm From 66X10375 Option Protecting cover, Headlight Option Field computer assembly Option Compaction Analyzer From 66X10286 Option Geodynamic Compaction indicator Option Drivers platform Drivers platform, for cab Drivers seat Standard platform Drivers seat Turn-over platform Drivers seat Turn-over in cab 359918 Steering column Steering system Turning Controls Turning Carrier Forward and reverse control Speed limiter Option Engine control Up to 66X10323 Engine control From 66X10324 Rops and fops Cab Interior Cab Inside panels Cab Screens Cab Door Cab Wipers front and rear Cab Mirror, Sun curtain Cab Electric Cab Heater system 385434 Cab heater, cpl Cab Cable harness Cab Work lights Cab Exterior, rear mirror Radio and cassette/cd player Option Cab, 12V contact Rear mirror Option Simple Cab mounting Option Cab Screens Cab Door, left side Cab Interior rear mirror Wiper arm with blade, front Cab Electric Cab mounting Cab Screens Cab Door, left side Decals Decals Standard equipment Tool equipment SMV-sign, First aid box Canopy Levelling blade, metal parts Levelling blade, hydraulic parts Levelling blade control Air conditioner assembly Condensor assembly Compressor assembly Evaporator assembly Anti-spin CA Anti-spin CA Anti spin, Potentiometer installation Anti spin, Hydraulic Roof hatch Pad shell Scraper and beam Pad shell Fire extinguisher assembly Heater, Simple cab Option 385222 Heater

1

1

2

3

4

5

6

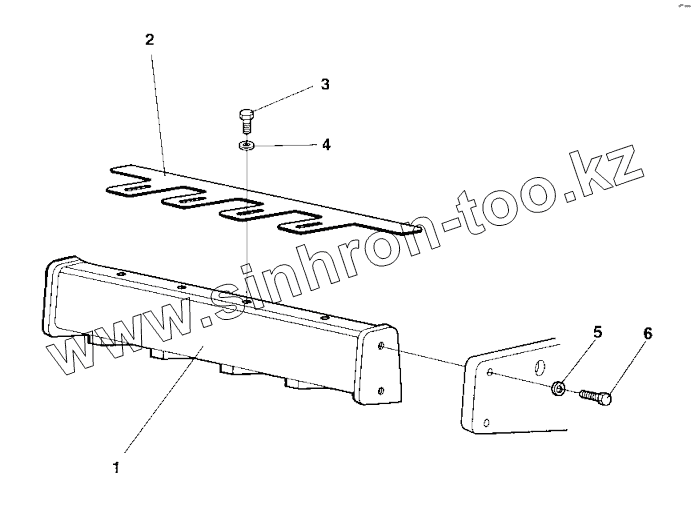

Позиция на иллюстрации	Заводской номер детали		Название детали
1	382259		Cross beam
1	389907		Cross beam
2	384048		Scraper
3	500102		Screw M16x45
4	904558		Washer 17x30x6
5	904234		Washer 25x45x4
6	500130		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
