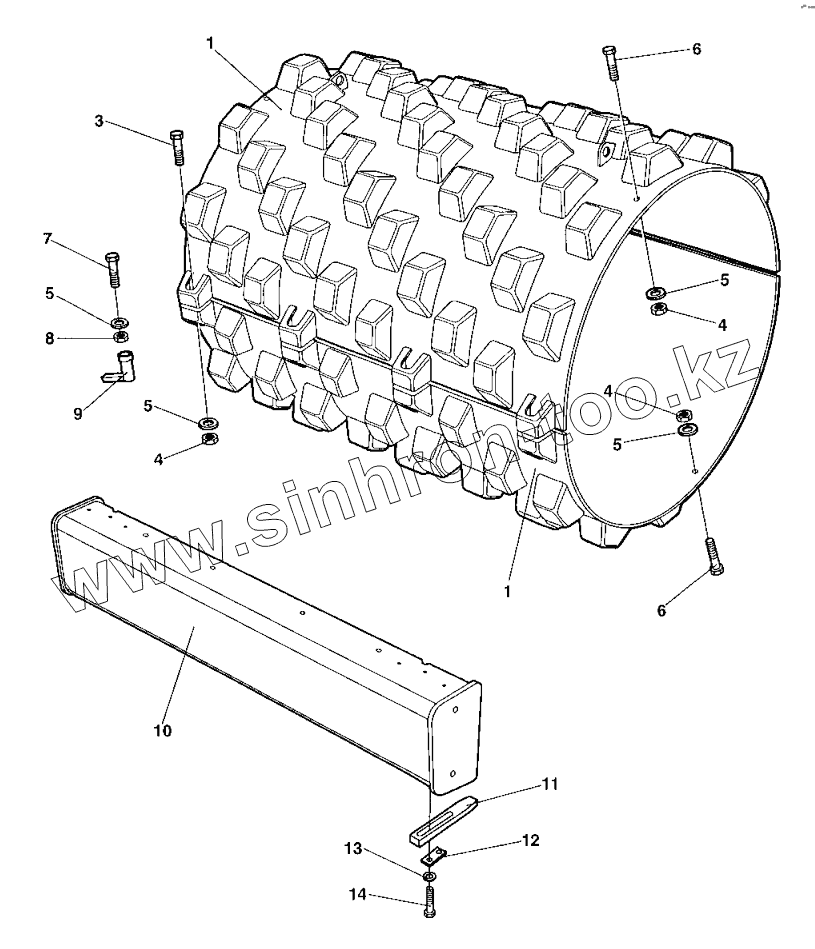

Pad shell
Scraper and beam
Pad shell
Fire extinguisher assembly
Heater, Simple cab Option
385222 Heater
1
1
3
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
382139
Pad shell
3
500286
Screw
4
586022
Lock nut M20
5
904233
Washer 21x36x3
6
500206
Screw
7
382572
Mounting screw
8
570015
Nut M20
9
382571
Hexagon sleeve
10
Crossbeam
Cross beam
11
376551
Scraper tooth
12
376622
Holder
13
904232
Washer 17x30x3
14
500165
Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
