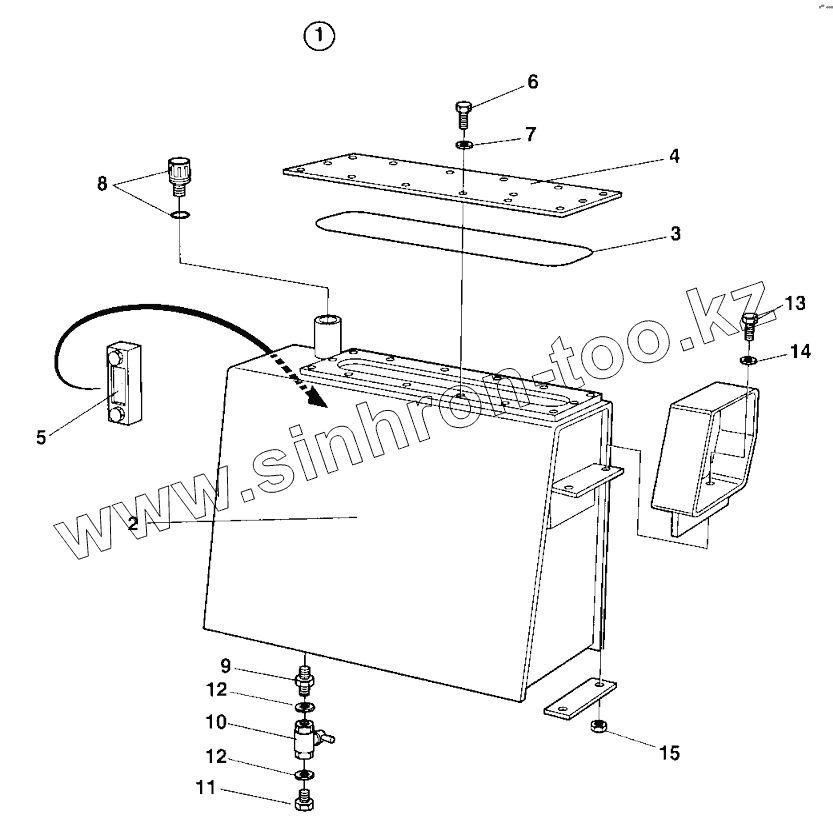

Позиция на иллюстрации
Заводской номер детали
Название детали
1
372044
Hydraulic oil tank, CPL
2
372029
Hydraulic oil tank
3
349880
O-ring
4
349879
Cover
5
989151
Oil level gauge
6
500019
Screw
7
904229
Washer 8,4x16x1,5
8
357138
Ventilating filter
9
791119
Adapter G3/4
10
233304
Ball valve
11
232039
Plug G3/4
12
791120
Sealing washer G3/4
13
500192
Screw M10x80
14
904567
Washer 10,5x28x6
16
570006
Nut
