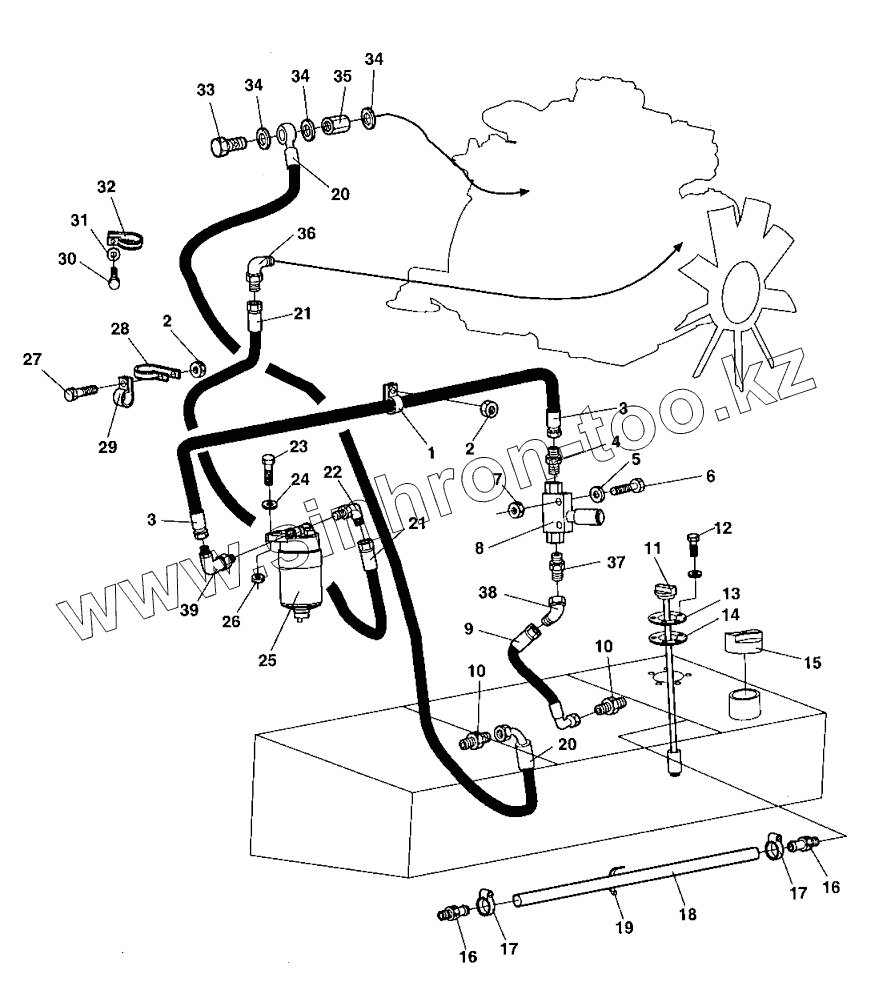

Каталог запасных частей к технике: DYNAPAC CA252D. Fuel system
791575
939468
1
1
2
2
3
3
3
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
17
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 791575 | 791575 | Elbow | |
| 939468 | 939468 | Fuel filter element | |
| 1 | 921031 | Clamp | |
| 1 | 903670 | Clamp | |
| 2 | 902285 | Lock nut M6 | |
| 3 | 388144 | Fuel hose | |
| 3 | 386957 | Fuel hose | |
| 4 | 234382 | Adapter | |
| 4 | 925723 | Connector | |
| 5 | 904639 | Washer 6,7x14x1,5 | |
| 6 | 500079 | Screw | |
| 7 | 902285 | Lock nut M6 | |
| 8 | 939466 | Fuel pump | |
| 9 | 386934 | Fuel hose | |
| 10 | 334117 | Adapter | |
| 11 | 387112 | Fuel sender | |
| 12 | 904206 | Screw | |
| 13 | 372718 | Lid | |
| 14 | 370745 | Flange, cpl | |
| 15 | 373460 | Fuel cap | |
| 16 | 373574 | Hose connection | |
| 17 | 313002 | Hose clamp | |
| 18 | 244054 | Hose reinforced | |
| 19 | 313041 | Cable ties | |
| 20 | 386958 | Fuel hose | |
| 21 | 386956 | Fuel hose | |
| 22 | 928908 | Adapter | |
| 23 | 500030 | Screw | |
| 24 | 904230 | Washer 10,5x22x2 | |
| 25 | 939467 | Fuel filter, cpl | |
| 26 | 586018 | Lock nut M10 | |
| 27 | 500040 | Screw | |
| 28 | 921050 | Clamp | |
| 29 | 903670 | Clamp | |
| 30 | 500043 | Hex. screw | |
| 31 | 904230 | Washer 10,5x22x2 | |
| 32 | 921104 | Clamp | |
| 33 | Hollowscrew | Hollow screw | |
| 34 | 747282 | Copper washer | |
| 35 | 387994 | Spacer | |
| 36 | 928908 | Adapter | |
| 37 | 925723 | Connector | |
| 38 | 234662 | Elbow 45 | |
| 39 | 928908 | Adapter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
