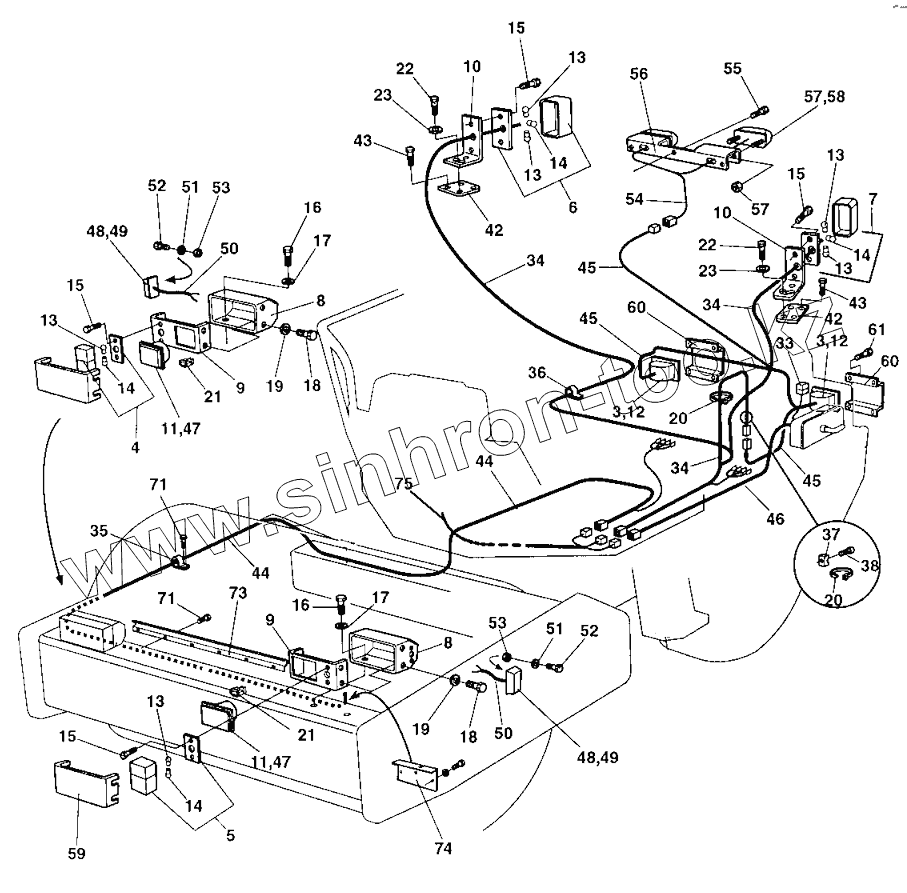

Каталог запасных частей к технике: DYNAPAC CA252D. Driving lights Option
904313
904313
937107
937106
937108
937109
3
3
4
5
6
7
8
8
9
9
10
10
11
11
12
12
13
13
13
13
13
13
14
14
14
14
15
15
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
33
34
34
34
35
36
37
38
42
42
43
43
44
44
45
45
45
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
55
56
57
57
58
59
60
60
61
71
71
73
74
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 904313 | 904313 | Head light | |
| 937107 | 937107 | Lamp glass | |
| 937106 | 937106 | Lamp glass | |
| 937108 | 937108 | Lamp glass | |
| 937109 | 937109 | Lamp glass | |
| 3 | 902227 | Work lamp | |
| 4 | 904316 | Direction lamp | |
| 5 | 904315 | Direction lamp | |
| 6 | 904318 | Direction lamp | |
| 7 | 904317 | Direction lamp | |
| 8 | 374029 | Lamp shield | |
| 9 | 374030 | Bracket | |
| 10 | 374089 | Bracket | |
| 11 | 900790 | Bulb 60/55w H4 | |
| 12 | 901369 | Bulb 55w H3 | |
| 13 | 928502 | Bulb | |
| 14 | 985014 | Bulb | |
| 15 | 533010 | Screw | |
| 16 | 500043 | Hex. screw | |
| 17 | 904230 | Washer 10,5x22x2 | |
| 18 | 500040 | Screw | |
| 19 | 904228 | Washer 6,4x12x1,5 | |
| 20 | 925802 | Cable ties | |
| 21 | 903899 | Connector | |
| 22 | 500019 | Screw | |
| 23 | 904229 | Washer 8,4x16x1,5 | |
| 27 | 541703 | Screw M6x16 | |
| 28 | 313041 | Cable ties | |
| 33 | 904038 | Fuse | |
| 34 | 374168 | Cable harness | |
| 35 | 921028 | Clamp | |
| 36 | 921028 | Clamp | |
| 37 | 904543 | Cable tie holder | |
| 38 | 903852 | Screw | |
| 42 | 374088 | Holder plate | |
| 43 | 513009 | Screw | |
| 44 | 374194 | Cable harness | |
| 45 | 374195 | Cable harness | |
| 46 | 373184 | Cable harness | |
| 47 | 902066 | Head light | |
| 48 | 902064 | Direction lights | |
| 49 | 985013 | Bulb | |
| 50 | 374526 | Cable harness | |
| 51 | 904281 | Washer 5,3x10x1 | |
| 52 | 926611 | Screw | |
| 53 | 586001 | Lock nut M5 | |
| 54 | 374196 | Cable harness | |
| 55 | 903969 | Screw | |
| 56 | 374184 | Licence plate light bracket | |
| 57 | 929455 | Licence plate light | |
| 58 | 985013 | Bulb | |
| 59 | 374120 | Protection cover | |
| 60 | 374327 | Protection cover | |
| 61 | 541535 | Screw | |
| 71 | 500012 | Screw | |
| 73 | 384162 | Cable holder | |
| 74 | 384163 | Protection | |
| 75 | 385263 | Cable harness |
