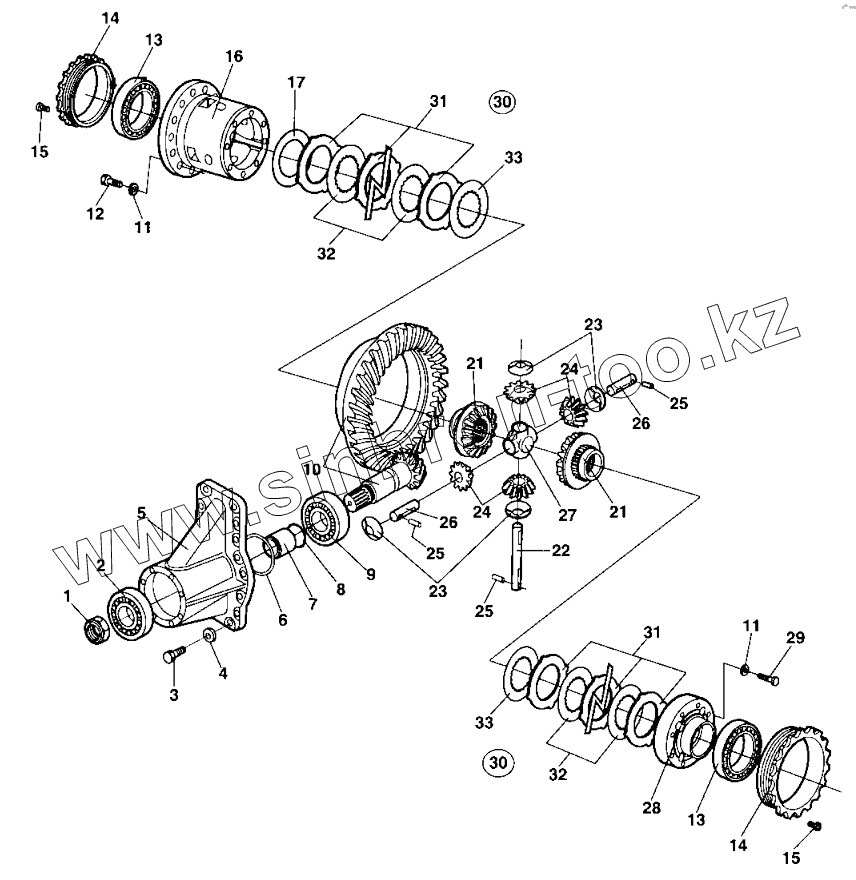

Каталог запасных частей к технике: DYNAPAC CA252D. Differential with limited slip
1
2
3
4
5
6
6
6
6
7
8
8
8
8
8
9
10
11
11
12
13
13
14
14
15
15
16
17
17
17
21
21
22
23
23
24
24
25
25
25
26
26
27
28
29
30
30
31
31
32
32
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 929638 | Nut | |
| 2 | 909574 | Roller bearing | |
| 3 | 939257 | Bolt | |
| 4 | 909572 | Spring washer | |
| 5 | 908485 | Housing | |
| 6 | 909568 | Shim | |
| 6 | 909569 | Shim | |
| 6 | 909570 | Shim | |
| 6 | 939258 | Shim | |
| 7 | 909567 | Spacer | |
| 8 | 909580 | Shim | |
| 8 | 939260 | Shim | |
| 8 | 929644 | Shim | |
| 8 | 909576 | Shim | |
| 8 | 939259 | Shim | |
| 9 | 909581 | Roller bearing | |
| 10 | 212553 | Bevel gear set | |
| 11 | 929628 | Washer | |
| 12 | 929629 | Screw | |
| 13 | 923342 | Bearing | |
| 14 | 939261 | Nut | |
| 15 | 938989 | Screw | |
| 16 | 909550 | Differential carrier | |
| 17 | 909551 | Shim | |
| 17 | 909552 | Shim | |
| 17 | 909553 | Shim | |
| 21 | 909558 | Differential gear | |
| 22 | 909566 | Shaft | |
| 23 | 909559 | Friction washer | |
| 24 | 939262 | Differential pinion | |
| 25 | 909561 | Rolled pin | |
| 26 | 909560 | Shaft | |
| 27 | 909565 | Shaft retainer | |
| 28 | 909562 | Differential carrier cover | |
| 29 | 909563 | Screw | |
| 30 | 935644 | Disc kit | |
| 31 | Limitedslipdisc | Limited slip disc | |
| 32 | Limitedslipdisc | Limited slip disc | |
| 33 | Limitedslipdisc | Limited slip disc |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
