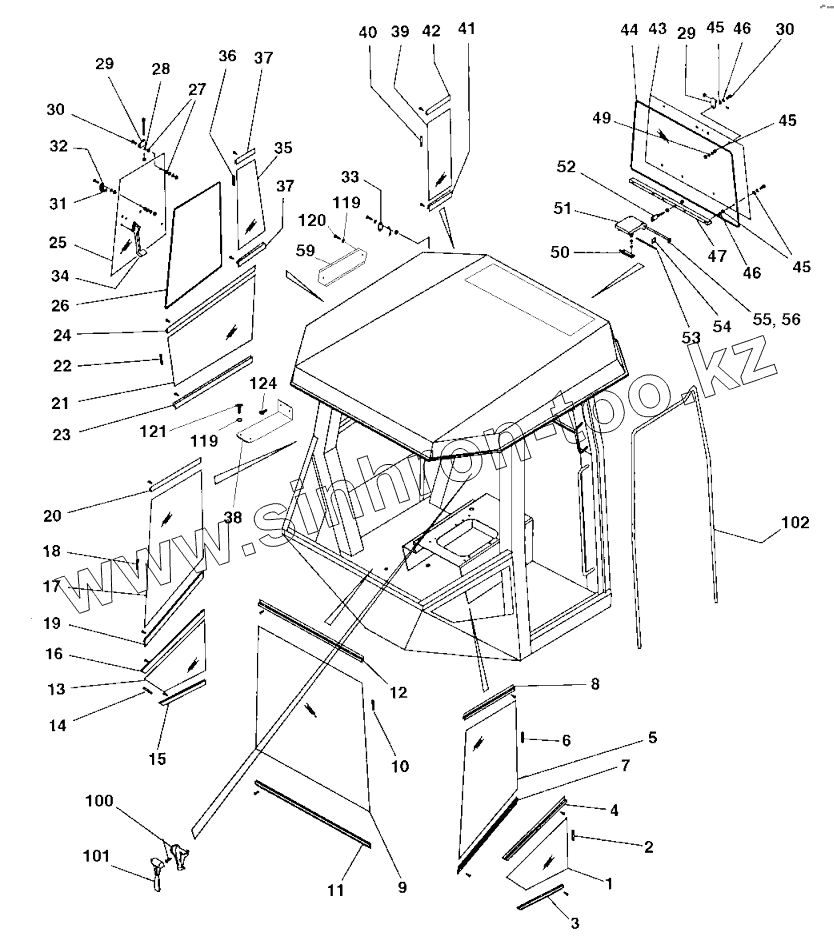

Каталог запасных частей к технике: DYNAPAC CA252D. Cab Screens
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
45
45
46
46
47
49
50
51
52
53
54
55
56
59
100
101
102
119
119
120
121
124
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 937380 | Screen | |
| 2 | 908545 | Seal list | |
| 3 | 935278 | List | |
| 4 | 935279 | List | |
| 5 | 937381 | Screen, left | |
| 6 | 908545 | Seal list | |
| 7 | 935280 | List | |
| 8 | 935281 | List | |
| 9 | 937382 | Screen | |
| 10 | 908545 | Seal list | |
| 11 | 935282 | List | |
| 12 | 935283 | List | |
| 13 | 937383 | Screen | |
| 14 | 908545 | Seal list | |
| 15 | 935284 | List | |
| 16 | 935285 | List | |
| 17 | 937384 | Screen | |
| 18 | 908545 | Seal list | |
| 19 | 935286 | List | |
| 20 | 935287 | List | |
| 21 | 937385 | Screen | |
| 22 | 908545 | Seal list | |
| 23 | 935288 | List | |
| 24 | 935289 | List | |
| 25 | 938290 | Screen | |
| 26 | 908499 | Rubber list | |
| 27 | 935271 | Washer, Flexible | |
| 28 | 935272 | Washer, Black | |
| 29 | 935273 | Hinge | |
| 30 | 935274 | Screw | |
| 31 | 935275 | Rubber washer | |
| 32 | 935276 | Bracket | |
| 33 | 935277 | Lock pin | |
| 34 | 935290 | Window lock, right | |
| 35 | 938291 | Screen | |
| 36 | 908545 | Seal list | |
| 37 | 935291 | List | |
| 38 | 379608 | Cover | |
| 39 | 938292 | Screen | |
| 40 | 908545 | Seal list | |
| 41 | 935293 | List | |
| 42 | 938659 | List | |
| 43 | 937389 | Screen | |
| 44 | 908499 | Rubber list | |
| 45 | 935271 | Washer, Flexible | |
| 46 | 935272 | Washer, Black | |
| 47 | 935295 | Screen holder | |
| 49 | 935296 | Washer | |
| 50 | 935297 | Bracket | |
| 51 | 935298 | Bracket | |
| 52 | 935299 | Bolt | |
| 53 | 935300 | Shaft | |
| 54 | 935301 | Lock | |
| 55 | 935302 | Rod | |
| 56 | 935303 | Ring | |
| 59 | 379236 | Cover | |
| 100 | 908506 | Holder | |
| 101 | 908507 | Emergency hammer | |
| 102 | 908499 | Rubber list | |
| 119 | 904229 | Washer 8,4x16x1,5 | |
| 120 | 500019 | Screw | |
| 121 | 500053 | Screw | |
| 124 | 903782 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
