Anti-spin CA
Anti-spin CA
Anti spin, Potentiometer installation
Anti spin, Hydraulic
Roof hatch
Pad shell
Scraper and beam
Pad shell
Fire extinguisher assembly
Heater, Simple cab Option
385222 Heater
1
2
2
3
4
5
6
6
6
7
9
10
11
11
12
13
14
15
16
17
18
19

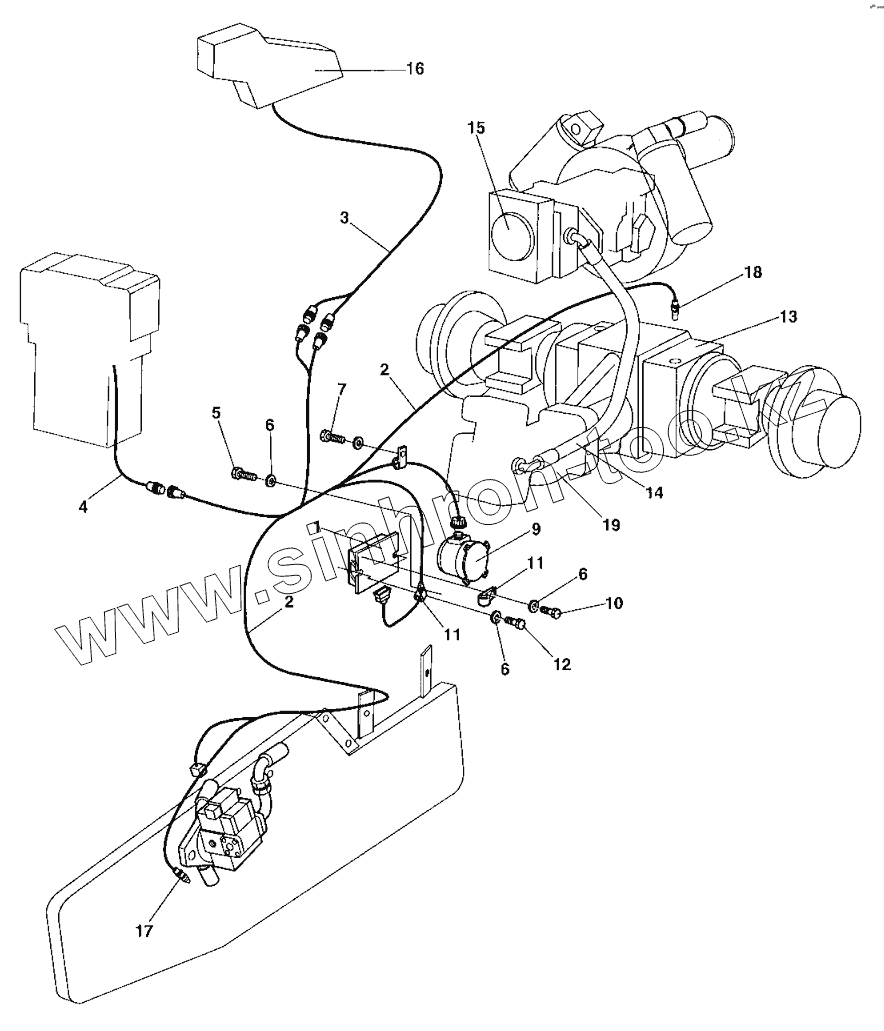

Позиция на иллюстрации
Заводской номер детали
Название детали
1
382098
Control unit
2
378131
Cable harness
3
378132
Cable harness
4
378133
Cable harness
5
500019
Screw
6
904734
Washer 8,4x26x4
7
925846
Screw
8
921039
Pipe clamp
9
373902
Sensor
10
500022
Screw
11
960727
Clamp
12
500021
Screw
13
383856
Rear axle No-Spin, Option
14
483483
Hydraulic hose
15
382133
Hydraulic pump
16
Antispin
Anti spin
17
904217
Sensor
18
904216
Sensor
19
382089
Hydraulic motor
