Каталог запасных частей к технике: DYNAPAC CA250D. Structure
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
19
20
20
20
20
20
21
21
21
21
22
23
23
24
25
25
25
25
25
25
25
25
25
25
25
25
25
26
27
27
28
28
29
30
35
36
37
38
39
40
41
42
42
43
43
44
44
44
45
46
47
48
49
50
60

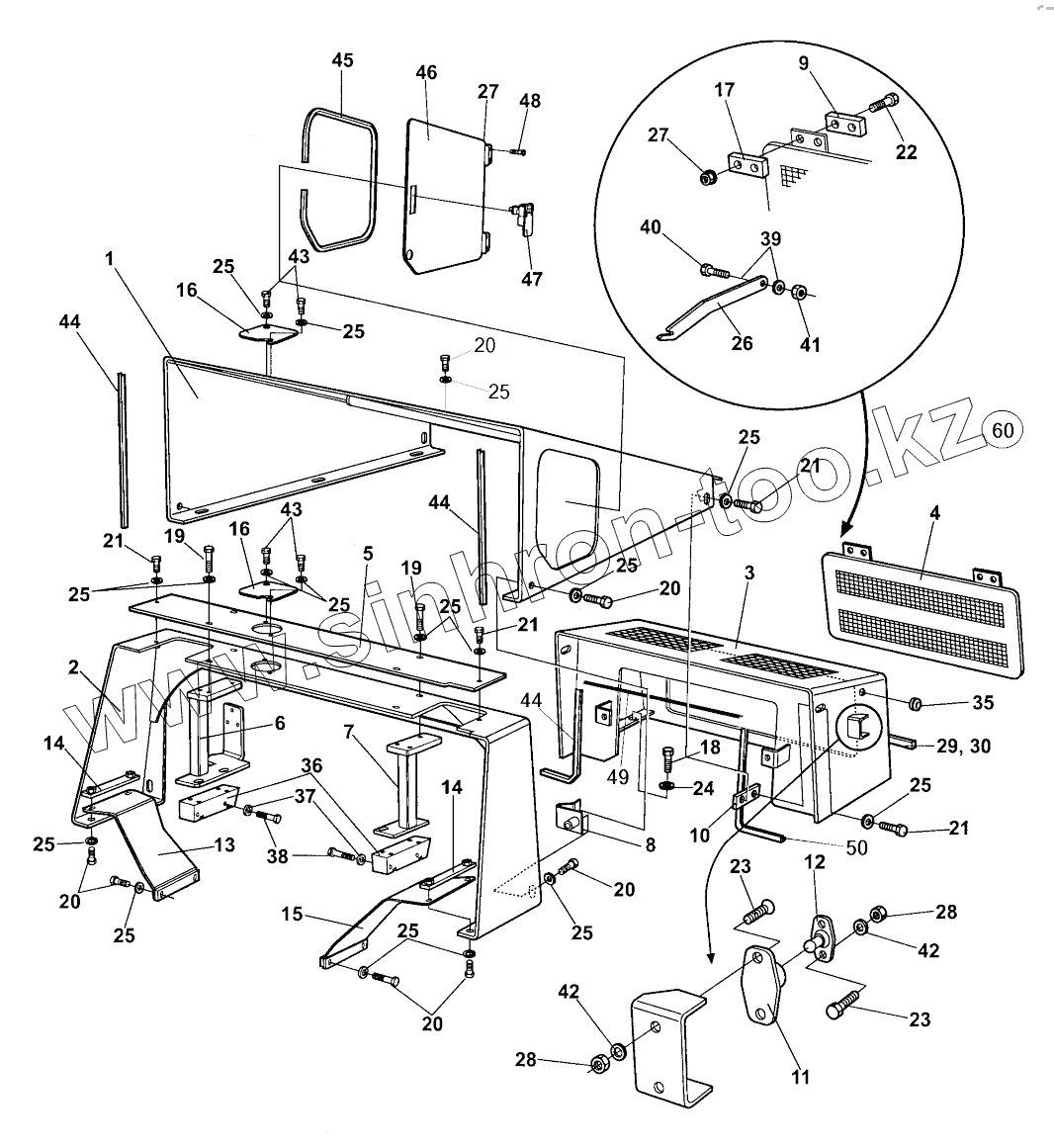

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700392911 | Hood | |
| 2 | 4700376340 | Protecting cover | |
| 3 | 4700392912 | Hood | |
| 4 | 4700382406 | Rear cover | |
| 5 | 4700376354 | Cover | |
| 6 | 4700392786 | Holder, right | |
| 7 | 4700376349 | Holder, left | |
| 8 | 4700376366 | Holder | |
| 9 | 4700380755 | Holder | |
| 10 | 4700380109 | Holder | |
| 11 | 4700450066 | Door bumper | |
| 12 | 4700450067 | Door bumper | |
| 13 | 4700381348 | Holder | |
| 14 | 4700381330 | Holder | |
| 15 | 4700381347 | Holder | |
| 16 | 4700381297 | Cover | |
| 17 | 4700380012 | Holder | |
| 18 | 4700500031 | Screw | |
| 19 | 4700500047 | Hexagon head screw | |
| 20 | 4700500022 | Hex. screw | |
| 21 | 4700500053 | Hex. screw | |
| 22 | 4700924875 | Screw | |
| 23 | 4700904504 | Screw | |
| 24 | 4700904557 | Washer | |
| 25 | 4700904640 | Washer | |
| 26 | 4700382411 | Hook | |
| 27 | 4700902285 | Nut | |
| 28 | 4700586001 | Lock nut | |
| 29 | 4700902379 | Edge trim | |
| 30 | 4700902379 | Edge trim | |
| 35 | 4700791475 | Grommet | |
| 36 | 4700381989 | Holder | |
| 37 | 4700904231 | Washer | |
| 38 | 4700500133 | Screw | |
| 39 | 4700904228 | Steel plain washer | |
| 40 | 4700500040 | Screw | |
| 41 | 4700586002 | Lock nut | |
| 42 | 4700904281 | Washer | |
| 43 | 4700500021 | Hex. screw | |
| 44 | 4700902166 | Edge trim | |
| 45 | 4700902379 | Edge trim | |
| 46 | 4700393857 | Cover | |
| 47 | 4700792549 | Lock | |
| 48 | 4700513012 | Screw | |
| 49 | 4700791597 | Rubber strip | |
| 50 | 4700902166 | Edge trim | |
| 60 | 4700950398 | Engine hood Cpl |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
