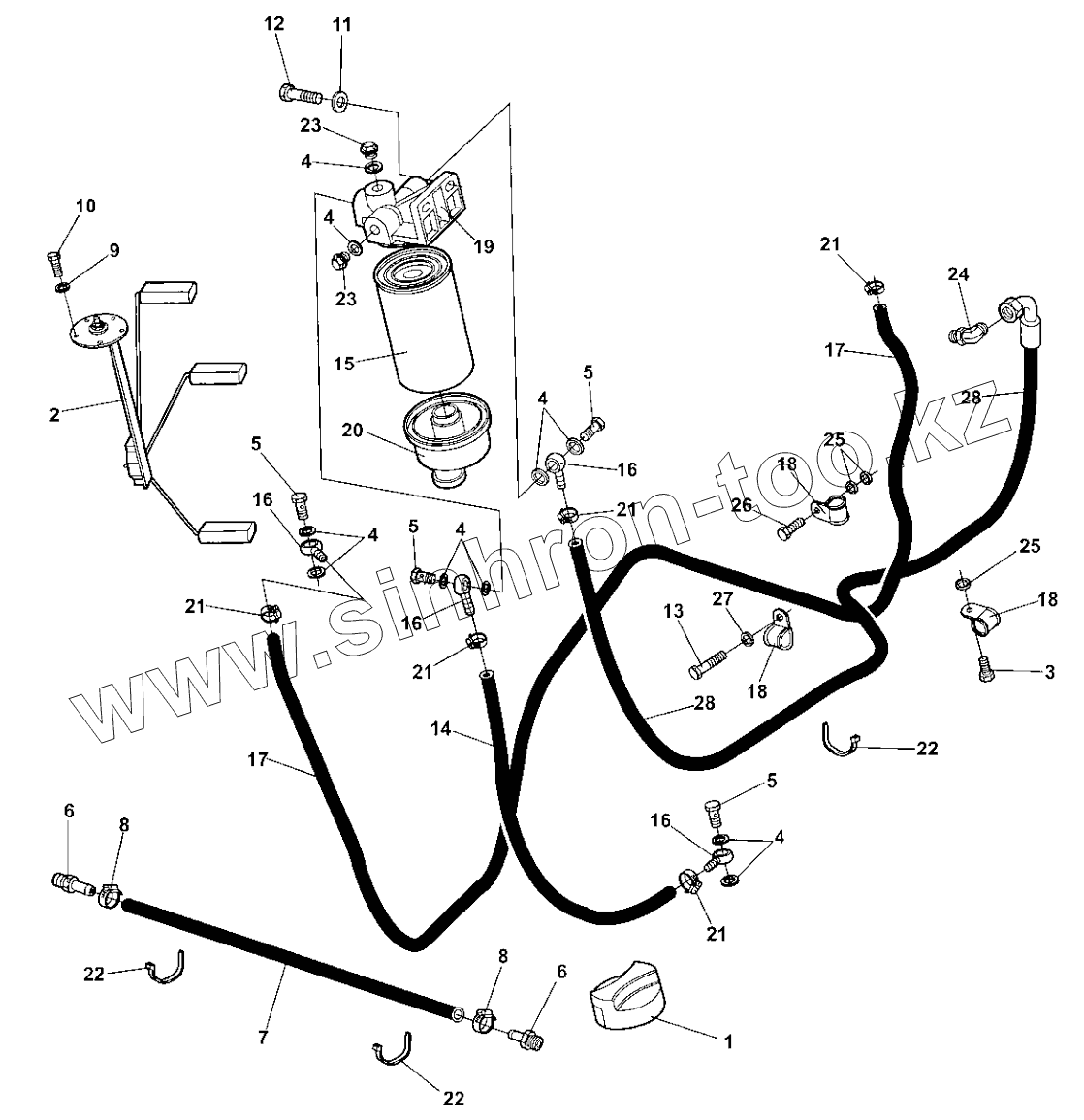

Каталог запасных частей к технике: DYNAPAC CA250D. Fuel system
1
2
3
4
4
4
4
4
4
5
5
5
5
6
6
7
8
8
9
10
11
12
13
14
14
15
16
16
16
16
16
17
17
17
18
18
18
19
20
21
21
21
21
21
22
22
22
23
23
24
25
25
26
27
28
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700945777 | 4700945777 | Gasket | |
| 1 | 4700373460 | Fuel cap | |
| 2 | 4700904695 | Fuel level sender | |
| 3 | 4700500021 | Hex. screw | |
| 4 | 4700747282 | Copper washer | |
| 5 | 4700330171 | Hollow screw | |
| 6 | 4700373574 | Hose connection | |
| 7 | 4700244054 | Hose reinforced | |
| 8 | 4700313002 | Hose clamp | |
| 9 | 4700904281 | Washer | |
| 10 | 4700500006 | Hex. screw | |
| 11 | 4700904230 | Washer | |
| 12 | 4700500029 | Hex. screw | |
| 13 | 4700500067 | Screw | |
| 14 | 4700904984 | Fuel hose | |
| 14 | 4700904985 | Fuel hose, fire-resistant | |
| 15 | 4700939404 | Pre-fuel filter element | |
| 16 | 4700901121 | Banjo nipple | |
| 16 | 4700330170 | Banjo coupling | |
| 17 | 4700904984 | Fuel hose | |
| 17 | 4700904985 | Fuel hose, fire-resistant | |
| 18 | 4700902558 | Clamp | |
| 19 | 4700939403 | Filter head | |
| 20 | 4700939405 | Bowl | |
| 21 | 4700313001 | Clamp | |
| 22 | 4700313041 | Cable tie | |
| 23 | 4700903190 | Steel plug | |
| 24 | 4700234619 | Adapter | |
| 25 | 4700603018 | Washer | |
| 26 | 4700500022 | Hex. screw | |
| 27 | 4700904229 | Washer | |
| 28 | 4700390705 | Fuel hose |
