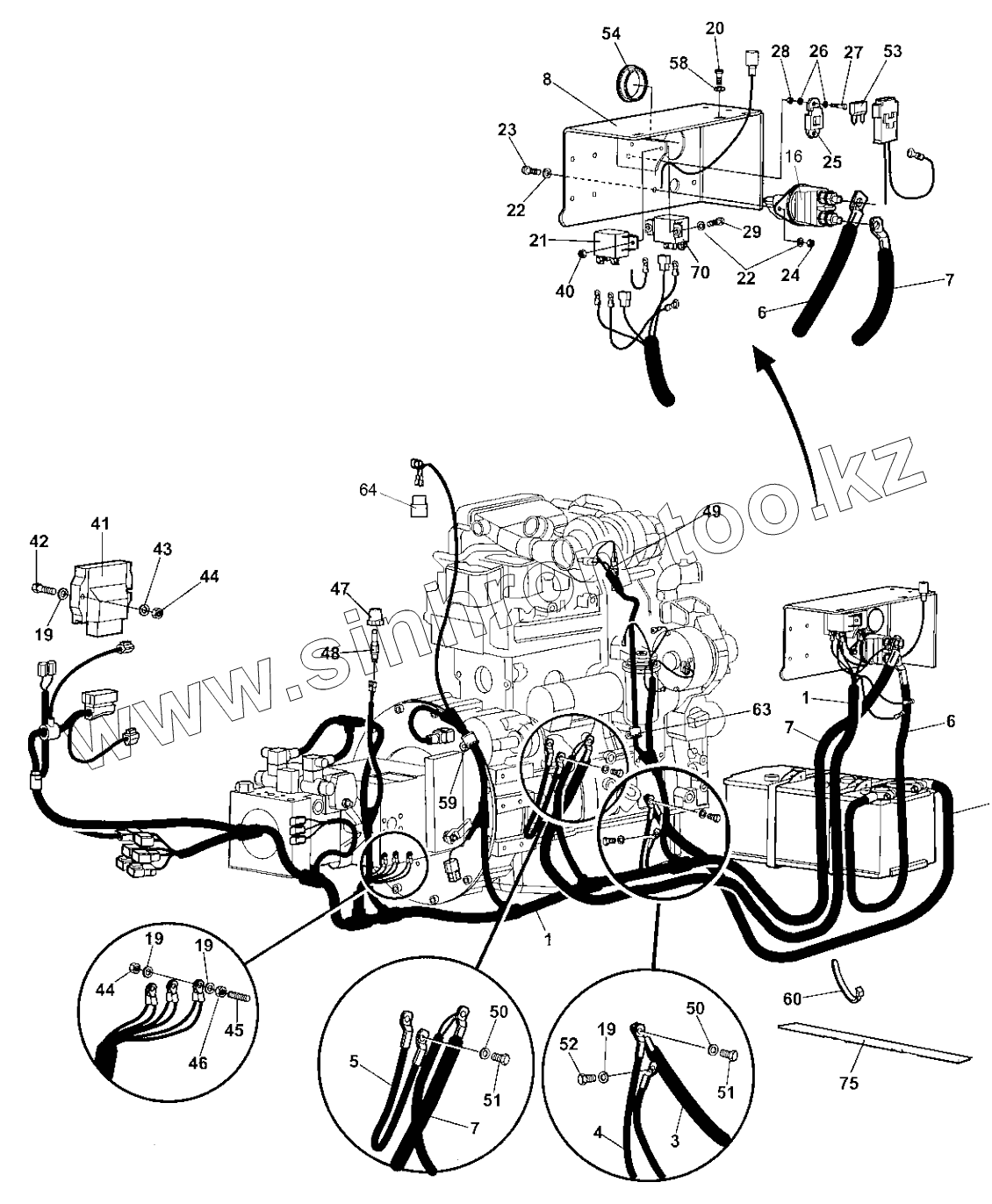

Каталог запасных частей к технике: DYNAPAC CA250D. Electric system
1
1
3
4
5
6
6
7
7
7
8
16
19
19
19
19
20
21
22
22
23
24
25
26
27
28
29
40
41
42
43
44
44
45
46
47
48
49
50
50
51
51
52
53
54
58
59
60
63
64
70
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700903641 | 4700903641 | Key | |
| 1 | 4700395821 | Cable harness | |
| 3 | 4700904020 | Battery cable | |
| 4 | 4700903760 | Connection cable, coarse | |
| 5 | 4700335607 | Connection cable, coarse | |
| 6 | 4700791503 | Battery cable | |
| 7 | 4700792052 | Connection cable, coarse | |
| 8 | 4700386999 | Holder | |
| 16 | 4700903640 | Battery switch | |
| 19 | 4700904229 | Washer | |
| 20 | 4700500053 | Hex. screw | |
| 21 | 4700791183 | Relay | |
| 22 | 4700904228 | Steel plain washer | |
| 23 | 4700500013 | Hex. screw | |
| 24 | 4700570004 | Hex. nut | |
| 25 | 4700904036 | Fuse holder | |
| 26 | 4700904281 | Washer | |
| 27 | 4700500060 | Screw | |
| 28 | 4700586001 | Lock nut | |
| 29 | 4700500075 | Screw, | |
| 40 | 4700902285 | Nut | |
| 41 | 4812114386 | Control unit, ECU | |
| 42 | 4700500025 | Screw | |
| 43 | 4700904556 | Steel plain washer | |
| 44 | 4700586003 | Hexagon lock nut | |
| 45 | 4700903768 | Threaded stud | |
| 46 | 4700570005 | Hex. nut | |
| 47 | 4700813434 | Reducer | |
| 48 | 4700903631 | Temperature sensor Hydraulic oil | |
| 49 | 4700903632 | Temperature sensor Engine | |
| 50 | 4700904231 | Washer | |
| 51 | 4700500051 | Hex. screw | |
| 52 | 4700500019 | Hex. screw | |
| 53 | 4700904038 | Fuse | |
| 54 | 4700345870 | Plug | |
| 58 | 4700904230 | Washer | |
| 59 | 4700921080 | Clamp | |
| 60 | 4700313041 | Cable tie | |
| 63 | 4700921072 | Clamp | |
| 64 | 4700929023 | Indicator | |
| 70 | 4700791183 | Relay | |
| 75 | 4812110818 | Rubber cloth |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
