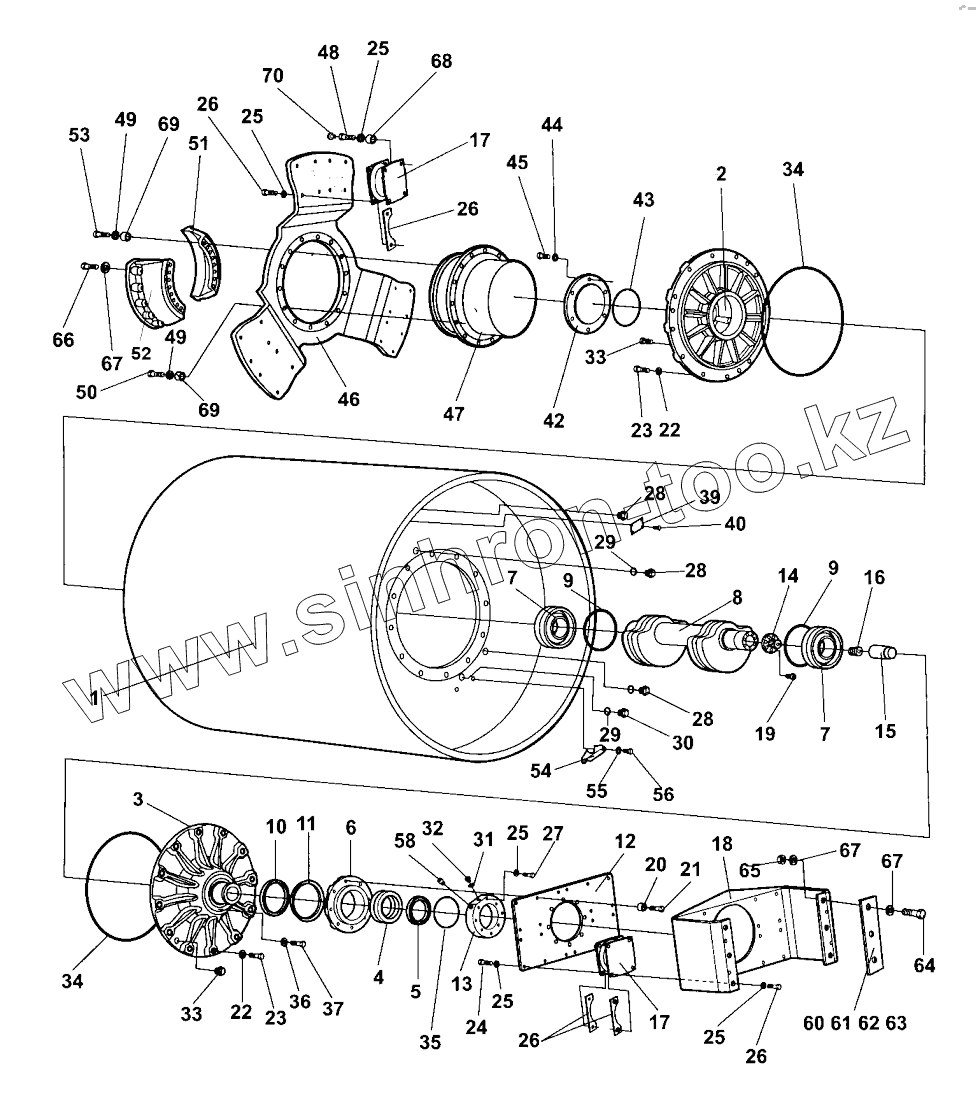

Каталог запасных частей к технике: DYNAPAC CA250D. Drum
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
23
24
25
25
25
25
25
26
26
26
26
27
28
28
28
29
29
30
31
32
33
33
34
34
35
36
37
39
40
42
43
44
45
46
47
48
49
49
50
51
52
53
54
55
56
58
60
61
62
63
64
65
66
67
67
67
68
69
69
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700392822 | Drum | |
| 2 | 4700389063 | Bearing housing | |
| 3 | 4700391206 | Bearing housing | |
| 4 | 4700116041 | Taper roller bearing | |
| 5 | 4812112413 | Shaft nut | |
| 6 | 4700343318 | Bearing housing | |
| 7 | 4700388089 | Bearing | |
| 8 | 4700391194 | Eccentric shaft | |
| 9 | 4700791927 | Retaining ring | |
| 10 | 4700167023 | Seal ring | |
| 11 | 4700929447 | V-ring | |
| 12 | 4700343322 | Holder plate | |
| 13 | 4812110878 | Motor adapter | |
| 14 | 4700380018 | Splined shaft | |
| 15 | 4700381027 | Splined sleeve | |
| 16 | 4700349715 | Spring | |
| 17 | 4700801187 | Shock absorber | |
| 18 | 4700396030 | Bracket | |
| 19 | 4700791156 | Screw | |
| 20 | 4700384114 | Spacer | |
| 21 | 4700500082 | Screw | |
| 22 | 4700904232 | Steel plain washer | |
| 23 | 4700500165 | Hex. screw | |
| 24 | 4812110444 | Hexagon head screw Tuflok | |
| 25 | 4700904231 | Washer | |
| 26 | 4700383436 | Holder | |
| 27 | 4700500196 | Screw | |
| 28 | 4700232210 | Plug | |
| 29 | 4700162017 | Seal ring | |
| 30 | 4700343744 | Magnetic plug | |
| 31 | 4700162018 | Sealing | |
| 32 | 4700370231 | Plug | |
| 33 | 4700900775 | Plug | |
| 34 | 4700904737 | O-ring | |
| 35 | 4700160105 | O-ring | |
| 36 | 4700230277 | Copper washer | |
| 37 | 4700904177 | Screw | |
| 39 | 4700343801 | Sign plate | |
| 40 | 4700527002 | Drive screw | |
| 42 | 4700383783 | Bearing cover | |
| 43 | 4700160358 | O-ring | |
| 44 | 4700904230 | Washer | |
| 45 | 4700500029 | Hex. screw | |
| 46 | 4812114420 | Drive disc | |
| 47 | 4700380462 | Drum gear | |
| 48 | 4812110640 | Hexagon socket head cap screw | |
| 49 | 4700904233 | Steel plain washer | |
| 50 | 4812110520 | Screw | |
| 51 | 4700373442 | Gear holder | |
| 52 | 4700373443 | Gear holder | |
| 53 | 4700903919 | Screw | |
| 54 | 4700359955 | Drop plate | |
| 55 | 4700904229 | Washer | |
| 56 | 4700500019 | Hex. screw | |
| 58 | 4700926736 | Breather | |
| 60 | 4700393276 | Shim | |
| 61 | 4700393277 | Shim | |
| 62 | 4700393278 | Shim | |
| 63 | 4700393279 | Shim | |
| 64 | 4700903792 | Screw | |
| 65 | 4700792464 | Nut | |
| 66 | 4700928231 | Screw | |
| 67 | 4700904234 | Steel plain washer | |
| 68 | 4812110346 | Spacer | |
| 69 | 4812110366 | Spacer | |
| 70 | 4811000127 | Cover cap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
