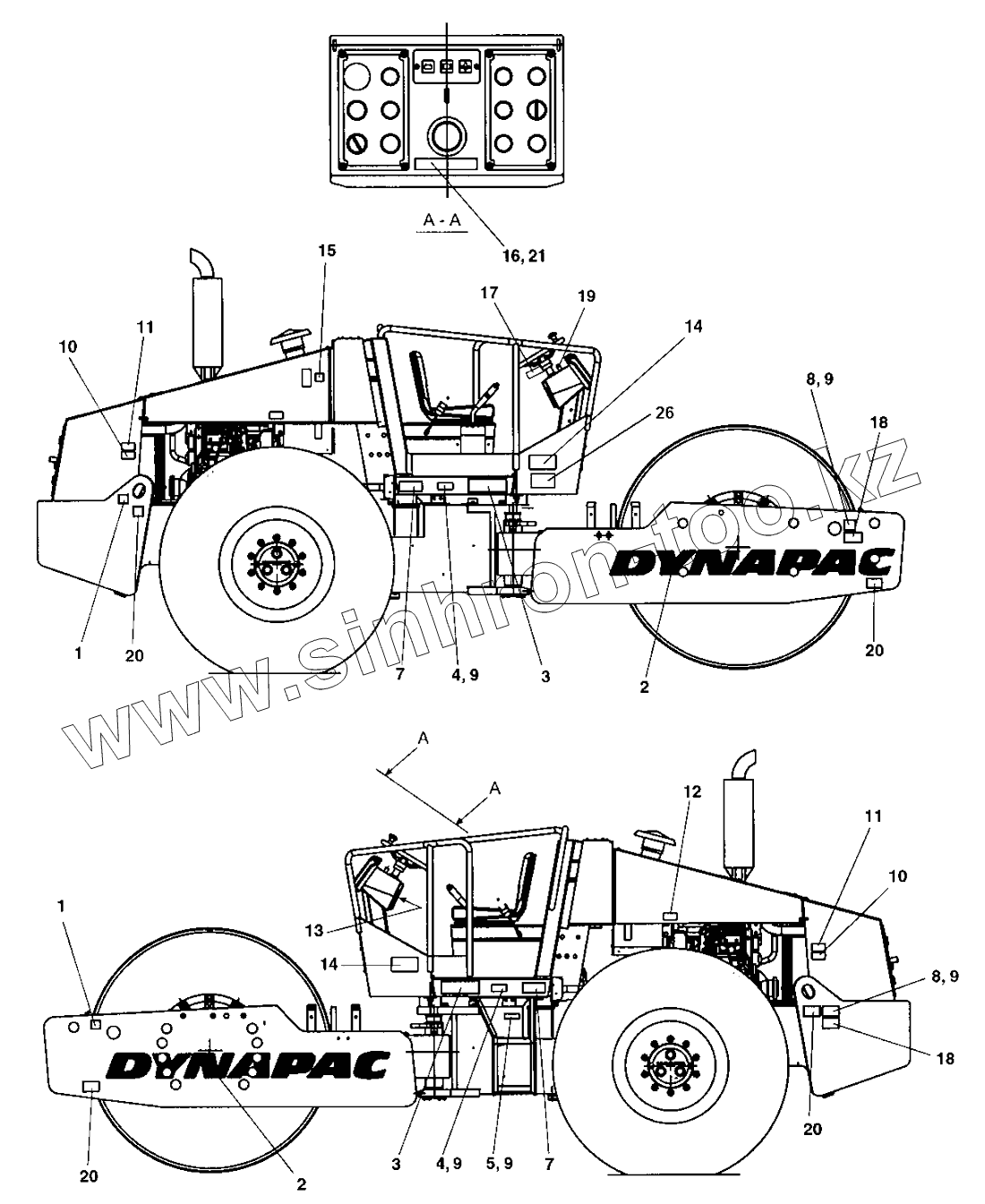

Каталог запасных частей к технике: DYNAPAC CA250D. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
5
5
5
7
7
8
8
9
9
9
9
9
10
10
11
11
12
12
13
14
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
18
19
20
20
20
20
26
Позиция на иллюстрации Заводской номер детали Название детали
4700791277 4700791277 Decal Sound power level 107dB
4700792222 4700792222 Decal MODEL CODE Red
1 4700588176 Decal LIFT POINT
2 4700904068 Decal DYNAPAC
3 4700904723 Decal MODEL CODE White
4 4700377744 Reflector, yellow
5 Identificationplate Product identification plate
5 Identificationplate Product identification plate
5 Identificationplate Product identification plate
6 4700902915 Screw
7 4700903459 Decal SAFETY
8 4700904870 Lifting data plate
9 4700624005 Blind rivet 3,2x6,1
10 4700903424 Safety decal HOT SURFACE
11 4700903423 Safety label, Rotating engine components
12 4700991990 Decal TYRE PRESSURE 110-150kPA/16-21psi
12 4700390900 Decal TYRE PRESSURE
13 4700903425 Safety decal READ SAFETY INSTRUCTIONS
14 4700903422 Safety decal CRUSH AREA
15 4700272373 Decal HYDRAULIC LEVEL
16 47349248NL Decal WARNING Dutch
16 47349248CN Decal WARNING Chinese
16 47349248IS Decal WARNING Icelandic
16 47349248GR Decal WARNING Greek
16 47349248SE Decal WARNING Swedish
16 47349248PT Decal WARNING Portuguese
16 47349248FI Decal WARNING Finnish
16 47349248DK Decal WARNING Danish
16 47349248NO Decal WARNING Norwegian
16 47349248FR Decal WARNING French
16 47349248ES Decal WARNING Spanish
16 47349248IT Decal WARNING Italian
16 47349248DE Decal WARNING German
16 47349248EN Decal WARNING English
17 4700384159 Instructions Loading-Unloading
18 4700908229 Safety decal
19 4700358881 Pad lock
20 4700382751 Decal SECURING POINT/TIE DOWN
25 4700791642 Decal WARNING Use of starting fluid prohib.
26 4700791279 Decal Sound power level 109dB
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
