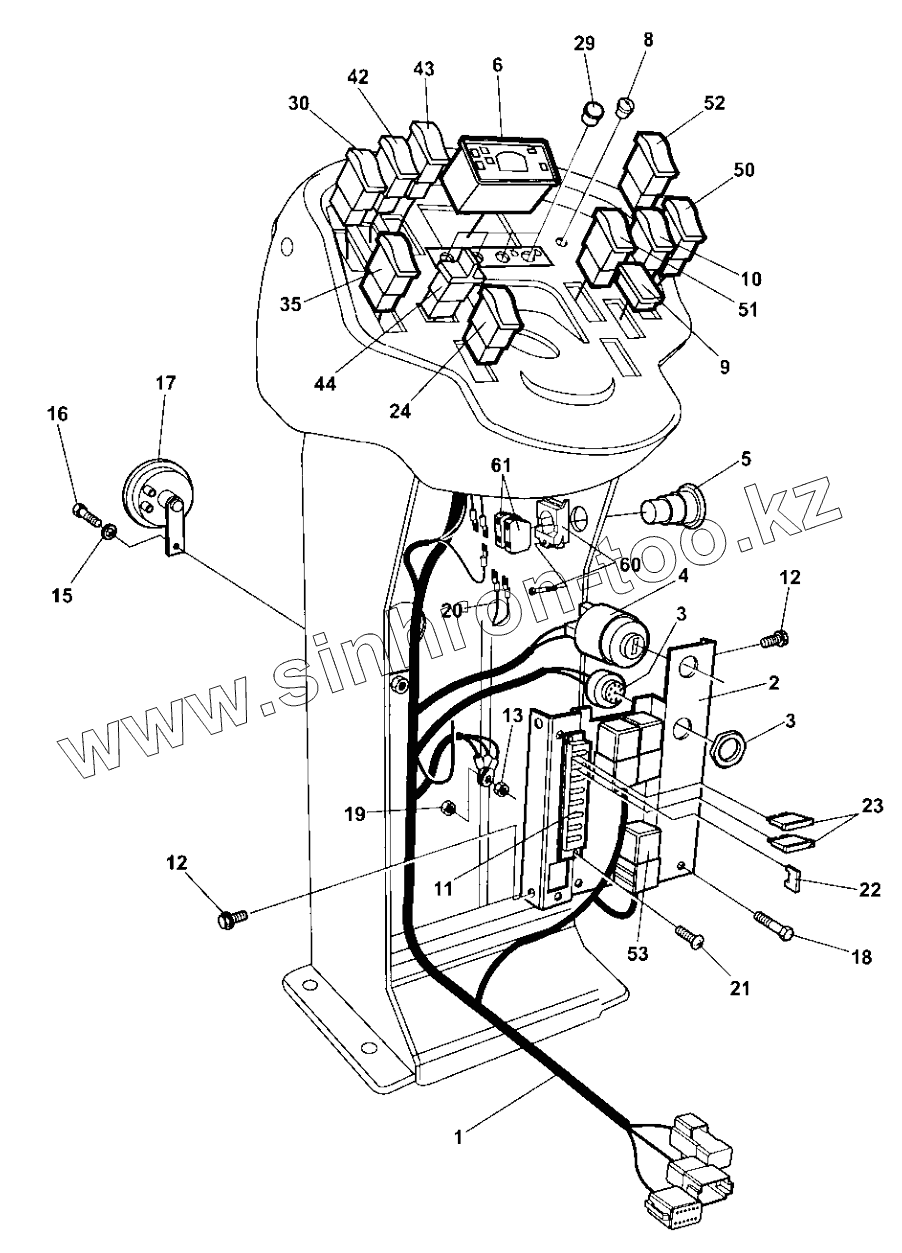

Каталог запасных частей к технике: DYNAPAC CA250D. Control panel
1
2
3
3
4
5
6
8
9
10
11
12
12
13
15
16
17
18
19
20
21
22
23
24
29
30
35
42
43
44
50
51
52
53
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700792315 | 4700792315 | Contact block Yellow | |
| 4700901227 | 4700901227 | Fuse | |
| 4700792463 | 4700792463 | Switch, Power distribution | |
| 4700940451 | 4700940451 | Ignition key | |
| 4700791657 | 4700791657 | Switch, Hi-Lo Speed | |
| 1 | 4700396968 | Cable harness | |
| 2 | 4700387683 | Distribution control plate | |
| 3 | 4700385599 | Buzzer | |
| 4 | 4700238158 | Ignition switch | |
| 5 | 4700791739 | Emergency stop | |
| 6 | 4700392996 | Control panel | |
| 8 | 4700792083 | Plug | |
| 9 | 4700791588 | Panel plug | |
| 10 | 4700792461 | Switch, vibration | |
| 11 | 4700791185 | Fuse box | |
| 12 | 4700903782 | Screw | |
| 13 | 4700570004 | Hex. nut | |
| 15 | 4700904229 | Washer | |
| 16 | 4700500053 | Hex. screw | |
| 17 | 4700999027 | Horn | |
| 18 | 4700500075 | Screw, | |
| 19 | 4700586002 | Lock nut | |
| 20 | 4700343550 | Connection cable | |
| 21 | 4700901767 | Screw | |
| 22 | 4700791211 | Contact bridge | |
| 23 | 4700901228 | Fuse | |
| 24 | 4700791582 | Switch, parking brake | |
| 29 | 4700792320 | Plug | |
| 30 | 4700791587 | Switch, working light | |
| 35 | 4700791585 | Switch, rotating beacon | |
| 42 | 4700791583 | Switch, driving light | |
| 43 | 4700791584 | Switch, hazard flashers | |
| 44 | 4700792413 | Switch, drive direction | |
| 50 | 4700791588 | Panel plug | |
| 51 | 4700791578 | Switch, horn | |
| 52 | 4700792462 | Switch, TC & TM | |
| 53 | 4700903956 | Relay | |
| 60 | 4700791733 | Fixing collar | |
| 61 | 4700791723 | Connector N/C |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
