Каталог запасных частей к технике: DYNAPAC CA250D. Air conditioner and heater, Simple cab

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
11
12
12
13
13
14
15
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
42
42
43
43
43
44
44
44
44
44
44
45
46
47
47
48
48
49
50
51
51
51
52
53
55
56
56
57
57
59
60
61
61
63
66
72
73
76
78
79
80
81
81
82
83
83
83
83

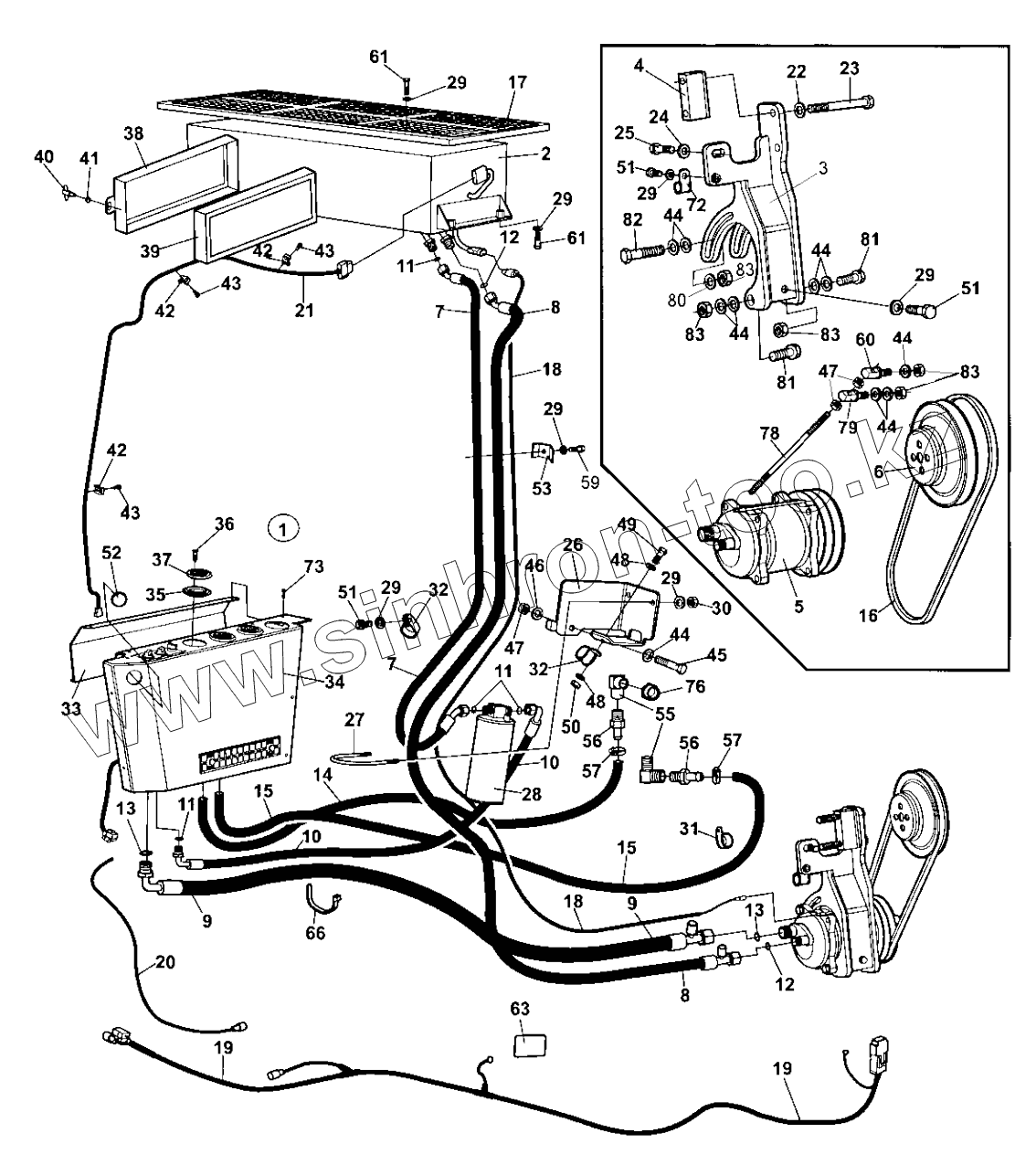

Позиция на иллюстрации Заводской номер детали Название детали
1 Airconditioner Air conditioner and heater unit
2 4700383413 Condensor, cpl
3 4700377937 Bracket
4 4700379643 Spacer
5 4700379304 Compressor
6 4700379280 Pulley
7 4700384876 Hose
8 4700379330 Hose
9 4700379331 Hose
10 4700384875 Hose
11 4700384877 O-ring
12 4700384878 O-ring Size 8
13 4700384879 O-ring Size
14 4700937737 Hose
15 4700937737 Hose
16 4700902924 V-belt
17 4700384589 Cover
18 4700385908 Cable harness
19 4700387466 Cable harness
20 4700387467 Cable harness
21 4700379275 Cable harness
22 4700904703 Plain washer
23 4700500122 Screw
24 4700904213 Washer
25 4700903906 Hexagon head screw m
26 4700390483 Holder
27 4700313093 Pipe clamp
28 4700383424 Drying filter
29 4700904229 Washer
30 4700586003 Hexagon lock nut
31 4700921161 Pipe clamp
32 4700921056 Clamp
33 4700379285 Panel
34 4700379286 Panel
35 4700385443 Ring
36 4700938691 Screw
37 4700385442 Air nozzle
38 4700908501 Filter frame
39 4700908502 Filter
40 4700908504 Handle
41 4700908503 O-ring
42 4700904543 Cable tie holder
43 4700903852 Screw
44 4700904230 Washer
45 4700500192 Hexagon head screw
46 4700904567 Washer
47 4700570006 Hex. nut
48 4700904228 Steel plain washer
49 4700500013 Hex. screw
50 4700570004 Hex. nut
51 4700500053 Hex. screw
52 4700345870 Plug
53 4700346230 Clamp
55 4700234365 Elbow
56 4700387638 Hose connection
57 4700313004 Hose clamp
59 4700500023 Screw
60 4700388470 Screw
61 4700500022 Hex. screw
63 4700904165 Safety decal Toxic gases
66 4700313102 Cable ties
72 4700902558 Clamp
73 4700792248 Screw
76 NU Not used on this model
78 4700377965 Set screw
79 4700377378 Set screw
80 4700904557 Washer
81 4700500031 Screw
82 4700500161 Screw
83 4700791172 Lock nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
