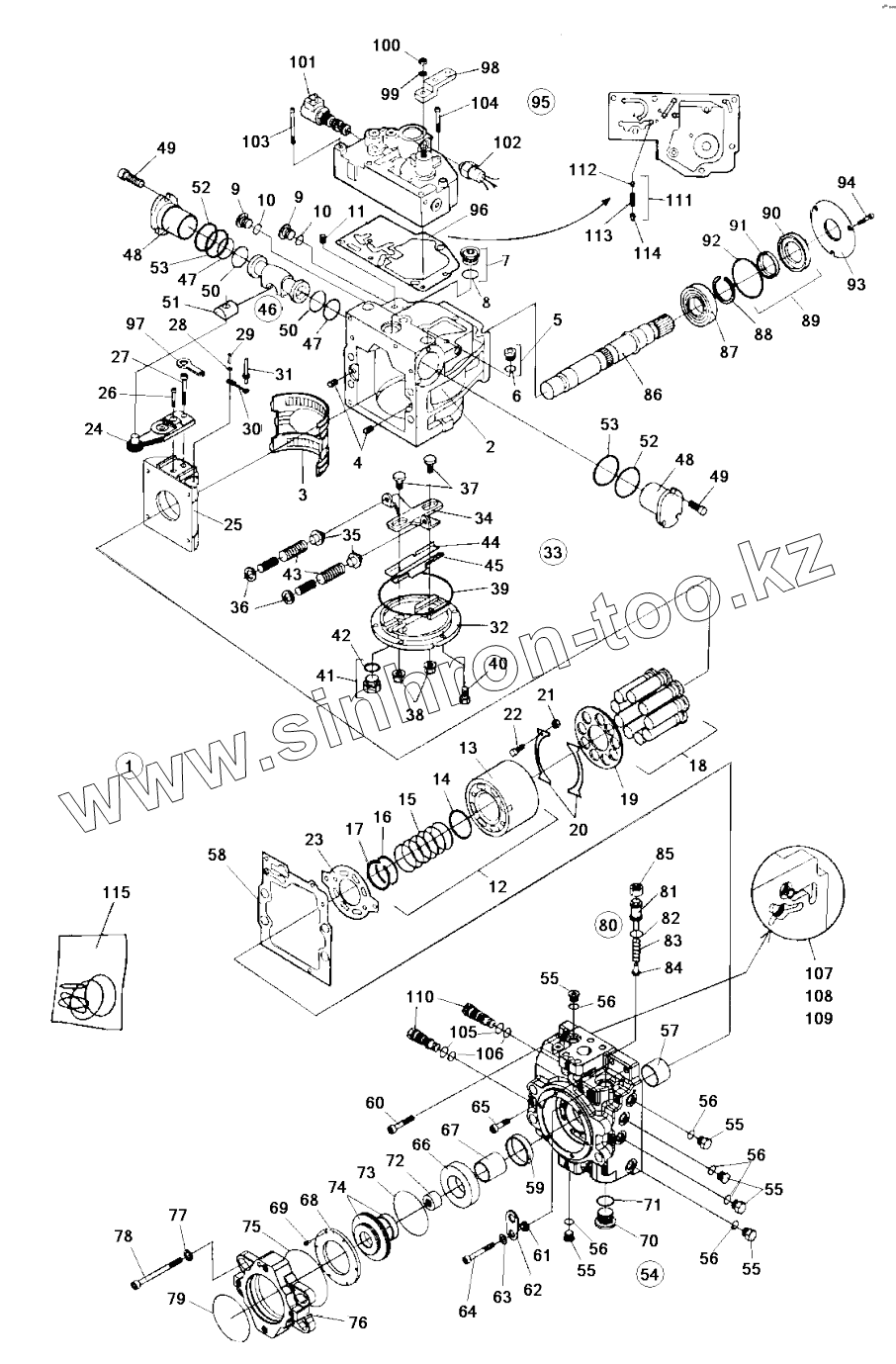

Каталог запасных частей к технике: DYNAPAC CA250D. 4700395385 Hydraulic pump

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
48
49
49
50
50
51
52
52
53
53
54
55
55
55
55
55
56
56
56
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
Позиция на иллюстрации Заводской номер детали Название детали
1 4700395385 Hydraulic pump
2 Housing Housing
3 Bearing Bearing
4 Pin Pin
5 Plug Plug connector see engine Gr. 9
6 O-ring O-ring
7 Plug Plug connector see engine Gr. 9
8 O-ring O-ring
9 Plug Plug connector see engine Gr. 9
10 O-ring O-ring
11 Filterelement Filter element
12 4700901455 Cylinder block, cpl
13 Cylinderblock Cylinder block
14 Ring Ring
15 Spring Spring
16 Springretainer Spring retainer
17 Ring Ring
18 4700903570 Piston
19 4700903571 Pressure plate
20 4700901458 Retainer guide
21 4700935856 Spacer
22 4700909382 Screw
23 4700936547 Valve plate
24 Servoarm Servo arm
25 Swashplate Swashplate
26 Screw Screw
27 Screw Screw
28 Washer Washer
29 Pin Pin
30 4700909391 Link
31 4700909392 Pin
32 Cover Cover
33 4700936548 Cover assembly
34 Lever Lever
35 Springretainer Spring retainer
36 Shim Shim
37 Guidepost Guide post
38 4700909398 Seal lock nut
39 4700936551 O-ring
40 4700936553 Screw
41 4700902928 Plug
42 O-ring O-ring
43 4700908352 Spring
44 Guide Guide
45 Guide Guide
46 4700936582 Piston, cpl
47 O-ring O-ring
48 Servosleeve Servo sleeve
49 4700936559 Screw
50 Pistonring Piston ring
51 Guide Guide
52 4700936557 O-ring
53 O-ring O-ring
54 4700936560 End cap, cpl
55 Plug Plug connector see engine Gr. 9
56 O-ring O-ring
57 Bushing Bushing
58 4700936561 Gasket
59 Bearing Bearing
60 4700936562 Screw
61 Spacer Spacer
62 Liftingbracket Lifting bracket
63 4700900188 Washer
64 4700936563 Screw
65 4700936564 Screw
66 4700950283 Spacer
67 4700950284 Spacer
68 4700935857 Retaining plate
69 4700936566 Screw
70 4700936567 Plug, cpl
71 O-ring O-ring
72 4812156460 Coupling
73 4700937150 O-ring
74 Coverassembly Cover assembly
75 4700909399 O-ring
76 4700937151 Adapter
77 4700936571 Washer
78 Screw Screw
79 4700937155 O-ring
80 4700936583 Pressure relief valve, cpl
81 Screw Screw
82 O-ring O-ring
83 Spring Spring
84 Valvecone Valve cone
85 Nut Nut
86 Bearing Bearing
87 4700901466 Shaft
88 Snapring Snap ring
89 Shaftsealassy Shaft seal assy
90 Seal Seal
91 Lipseal Lip seal
92 O-ring O-ring
93 Retainingplate Retaining plate
94 4700908773 Screw
95 4700938170 Control valve, cpl
96 4700939489 Control valve gasket
97 Link Link
98 4700909432 Control lever
99 Washer Washer
100 4700909429 O-ring
101 4700938252 Solenoid valve
102 4700938253 Neutral start switch
103 4700937857 Screw
104 Screw Screw
105 O-ring O-ring
106 O-ring O-ring
107 Valve Valve
108 Plug Plug connector see engine Gr. 9
109 O-ring O-ring
110 Valve Valve
111 4700212336 Orifice valve cpl
112 4700909435 Orifice
113 4700908447 Compression spring
114 4700908448 Spring retainer
115 4700901328 Seal kit
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
