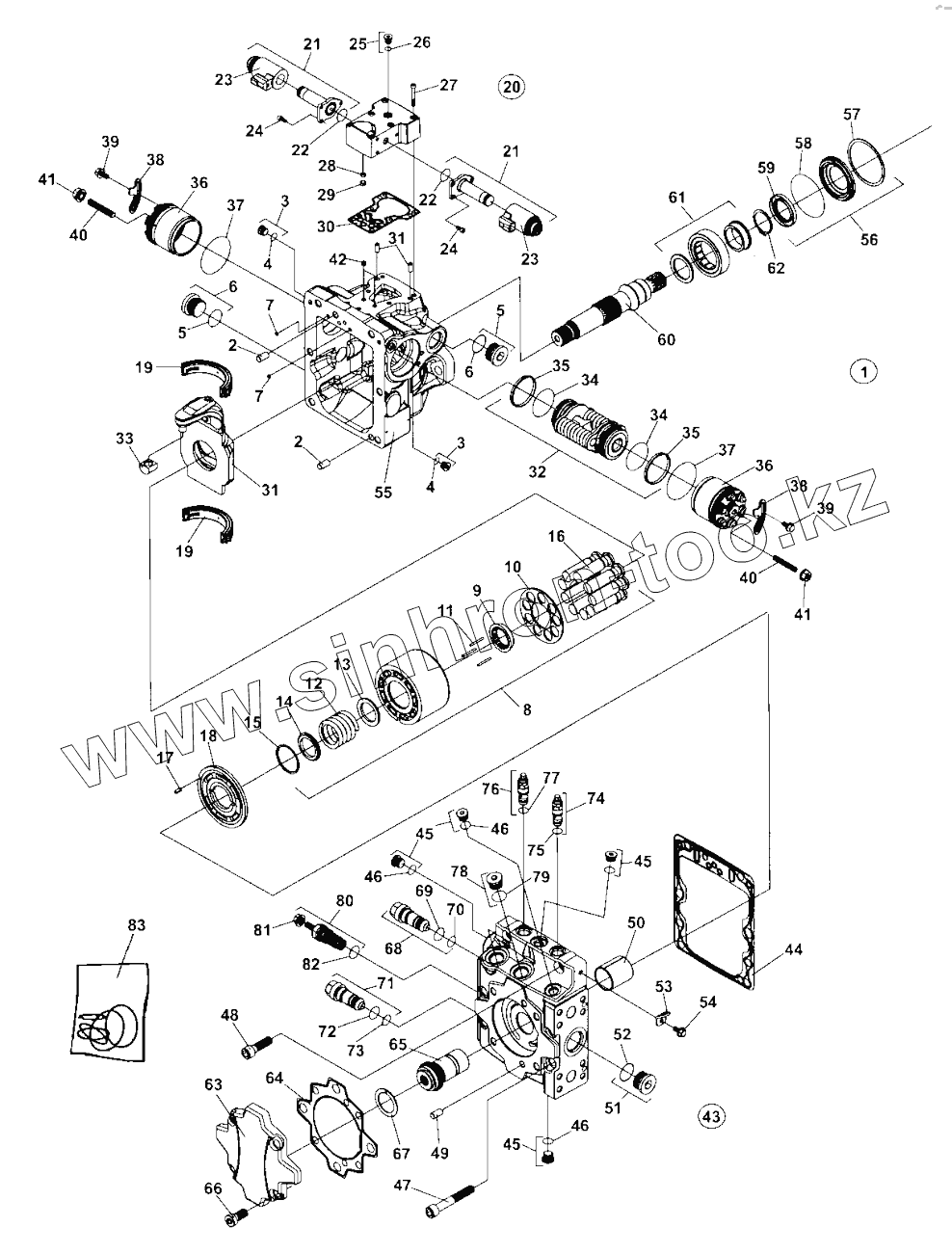

Каталог запасных частей к технике: DYNAPAC CA250D. 4700395384 Vibration pump
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
21
22
22
23
23
24
24
25
26
27
28
29
30
31
31
32
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
43
44
45
45
45
46
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700395384 | Vibration pump | |
| 2 | Pin | Pin | |
| 3 | Plug | Plug connector see engine Gr. 9 | |
| 4 | O-ring | O-ring | |
| 5 | Plug | Plug connector see engine Gr. 9 | |
| 6 | O-ring | O-ring | |
| 7 | Screen | Screen | |
| 8 | 4700950618 | Cylinderblock kit | |
| 9 | Retainerguide | Slipper retainer guide | |
| 10 | Pressureplate | Pressure plate | |
| 11 | Pin | Pin | |
| 12 | Spring | Spring | |
| 13 | Washer | Washer | |
| 14 | Washer | Washer | |
| 15 | Retainingring | Retaining ring | |
| 16 | Pistonassembly | Piston assembly | |
| 17 | 4700828142 | Spring | |
| 18 | Valveplate | Valve plate | |
| 19 | Swashplatebearingkit | Swashplate bearing kit | |
| 20 | Controlvalve | Control valve, cpl | |
| 21 | Solenoidvalve | Solenoid valve | |
| 22 | O-ring | O-ring | |
| 23 | 4700950617 | Coil | |
| 24 | Screw | Screw | |
| 25 | Plug | Plug connector see engine Gr. 9 | |
| 26 | O-ring | O-ring | |
| 27 | Screw | Screw | |
| 28 | Screw | Screw | |
| 29 | Lockingring | Locking ring | |
| 30 | Gasket | Gasket | |
| 31 | Dowelpin | Cylindrical dowel pin | |
| 32 | Piston | Piston | |
| 33 | Slider | Slider | |
| 34 | O-ring | O-ring | |
| 35 | Pistonring | Piston ring | |
| 36 | Servocylinder | Servo cylinder | |
| 37 | O-ring | O-ring | |
| 38 | Lockingplate | Locking plate | |
| 39 | Screw | Screw | |
| 40 | Screw | Screw | |
| 41 | Sealnut | Seal nut | |
| 42 | Orifice | Orifice | |
| 43 | Endcap | End cap | |
| 44 | Gasket | Gasket | |
| 45 | Plug | Plug connector see engine Gr. 9 | |
| 46 | O-ring | O-ring | |
| 47 | 4700909417 | Screw | |
| 48 | Screw | Screw | |
| 49 | Pin | Pin | |
| 50 | Bearing | Bearing | |
| 51 | Plug | Plug connector see engine Gr. 9 | |
| 52 | O-ring | O-ring | |
| 53 | Liftingbracket | Lifting bracket | |
| 54 | 4700936933 | Screw | |
| 55 | Housing | Housing | |
| 56 | Shaftsealkit | Shaft seal kit | |
| 57 | Retainingring | Retaining ring | |
| 58 | O-ring | O-ring | |
| 59 | Lipseal | Lip seal | |
| 60 | Shaft | Shaft | |
| 61 | Rollerbearing | Roller bearing | |
| 62 | Retainingring | Retaining ring | |
| 63 | Adapter | Adapter | |
| 64 | Gasket | Gasket | |
| 65 | Coupling | Coupling | |
| 66 | Screw | Screw | |
| 67 | Thrustplate | Thrust plate | |
| 68 | 4700950619 | Pressure relief valve | |
| 69 | O-ring | O-ring | |
| 70 | O-ring | O-ring | |
| 71 | 4700950619 | Pressure relief valve | |
| 72 | O-ring | O-ring | |
| 73 | O-ring | O-ring | |
| 74 | 4700950620 | Pressure limiter valve | |
| 75 | O-ring | O-ring | |
| 76 | 4700950620 | Pressure limiter valve | |
| 77 | O-ring | O-ring | |
| 78 | Plug | Plug connector see engine Gr. 9 | |
| 79 | O-ring | O-ring | |
| 80 | Chargereliefvalve | Charge relief valve | |
| 81 | Sealnut | Seal nut | |
| 82 | O-ring | O-ring | |
| 83 | 4700950616 | Seal kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
