Каталог запасных частей к технике: DYNAPAC CA2500D. Control

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
8
9
9
9
10
11
11
12
16
17
18
19
20
20
22
23
25
26
30
31
36
36
37
38
39
40
41
42
42
42
43
44
45
46
47
48
49
50

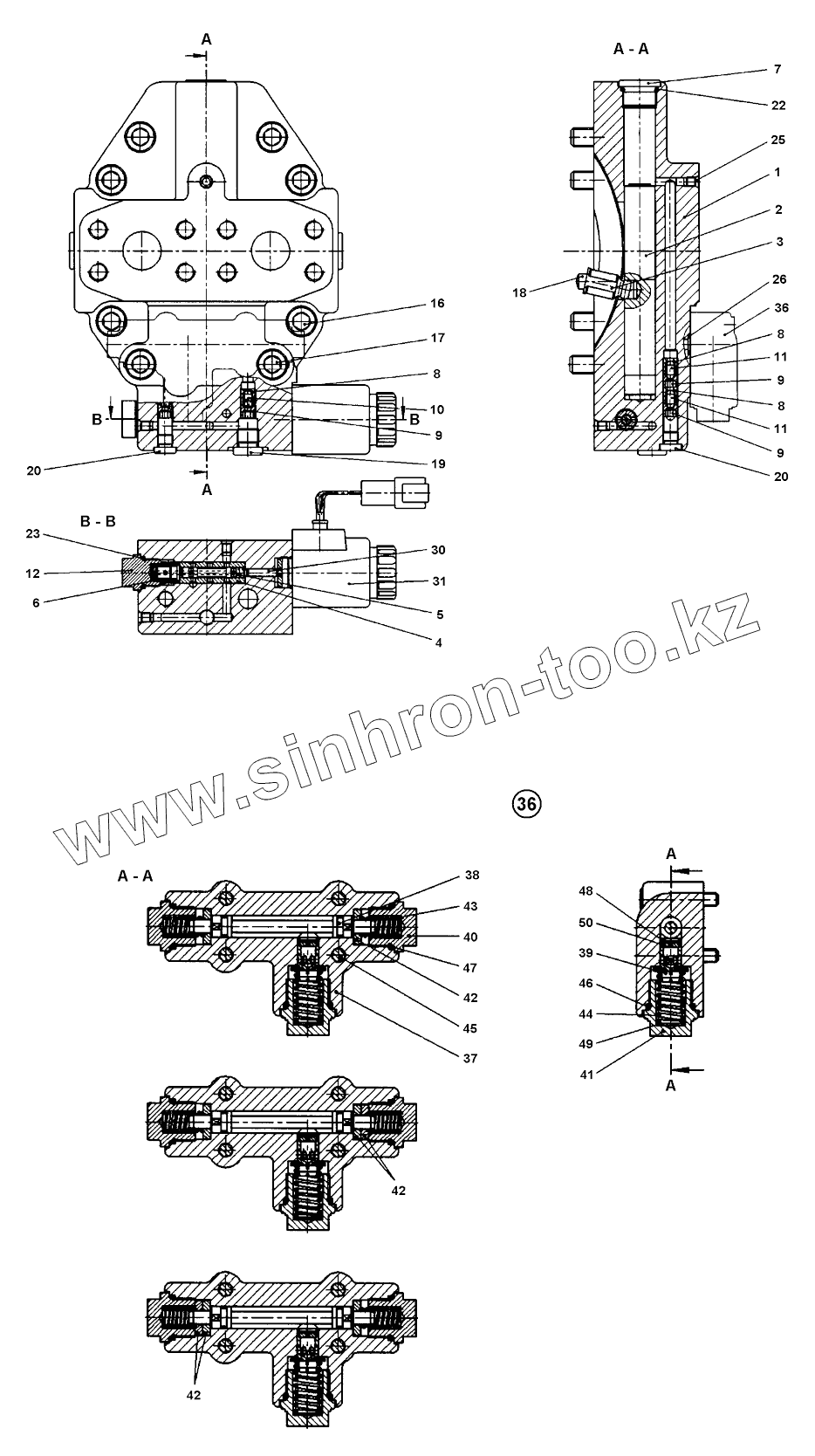

Позиция на иллюстрации Заводской номер детали Название детали
1 Port plate Port plate
2 Positioning piston Positioning piston
3 Positioning trunnion Positioning trunnion
4 Control bush Control bush
5 Control piston Control piston
6 Pressure spring Pressure spring
7 Locking screw Locking screw
8 Throttle screw Throttle screw
9 Throttle screw Throttle screw
10 Valve pin Valve pin
11 Throttle pin Throttle pin
12 Locking screw Locking screw
16 Socket head screw Socket head screw
17 Socket head screw Socket head screw
18 Cylinder pin Cylinder pin
19 Locking screw Locking screw
20 Locking screw Locking screw
22 4812157169 O-ring
23 4812157170 O-ring
25 Double break-off plug Double break-off plug
26 4812158756 O-ring
30 Needle roller Needle roller
31 4812036305 Solenoid valve
36 4812158757 Flush and boost pressure valve
37 Flushing valve housing Flushing valve housing
38 Flushing piston Flushing piston
39 Valve piston Valve piston
40 Locking screw Locking screw
41 Locking screw Locking screw
42 Washer Washer
43 Pressure spring Pressure spring
44 Pressure spring Pressure spring
45 Socket head screw Socket head screw
46 4812157460 O-ring
47 4812157170 O-ring
48 Retaining ring Retaining ring
49 Shim Shim
50 Orifice Orifice
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
