Каталог запасных частей к технике: DYNAPAC CA2500D. Rear view mirror

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано CA2500D/PD (IIIB/T4i) SN 10000138x0A012709- 4812156993 Service kit, 50h Plus 4812159996 Service kit, 50h Plus Limited slip Rear axle 4812158687 Service kit, 500h Plus Cummins QSB 4.5 4812158688 Service kit, 500h Cummins QSB 4.5 4812158689 Service kit, 1000h Plus Cummins QSB 4.5 4812158690 Service kit, 1000h Cummins QSB 4.5 4812158691 Start up kit Cummins QSB 4.5 4812158692 Service kit, 2000h Plus Cummins QSB 4.5 4812158693 Service kit, 2000h Cummins QSB 4.5 Eccentric shaft kit 4812157275 Drum rotation kit 4812158581 Shock absorber kit, drum Fuses Keys Frame, front 4812117507 Steering hitch, cpl Steering hitch module 4812114990 Steering hitch, cpl Scrapers, option Scraper module Steel Scraper module Rubber Scraper assy Scraper module PD Hardox Scraper module PD Heavy duty Scraper mount Frame, rear Cover assembly Step module Step assy Tool box module, Option Engine structure Engine hood 4812120749 Engine hood, cpl 4812118994 Lock handle, cpl Fender module Hinge module Lock handle assy Gas spring module Safety link module Drum, cpl 4812113266 Drum gear 4812112198 Hydraulic motor Vibration motor adapter Tooth wheel module 4812158091 Drum cartridge, vibration side (D version) 4812158096 Drum cartridge with shaft nut, vibration side (D version) 4812158086 Drum cartridge, drive side (D version) 4812158090 Drum cartridge, vibration side (PD version) 4812158095 Drum cartridge with shaft nut, vibration side (PD version) 4812158085 Drum cartridge, drive side (PD version) Pad shell, option Engine Diesel engine Belt guard module Bracket module Cooling system Cooler stand module Hose assy kit Air cleaner Air cleaner module Fuel system Fuel tank module Fuel tank Brackets assy Fuel hoses Draining module Exhaust system Expansion tank assembly Rear axle and wheels 4812113344 Rear axle, limited slip Differential & Bevel gear Brakes Hub reduction 4812113341 Rear axle No spin Differential Central housing and brakes Hub reduction Hydraulic system, drum (D) Traction control, dual speed Hydraulic motor 4812112215 Hydraulic motor Rotary group Flush and boost pressure valve Cover with shaft seal ring Hydraulic valve module 4812113687 Hydraulic valve Hydraulic system, drum (PD) Traction control, dual speed Hydraulic motor 4812112200 Hydraulic motor Loop flushing Hydraulic system, drum Anti-spin system Hydraulic motor 4812112202 Drum motor Drum motor. Front section Loop flushing Drum motor. Rear section Hydraulic system, rear axle Traction control, limited slip Hose holder Hydraulic motor 4812112208 Rear axle motor Front section Rear section Hydraulic system, rear axle Traction control, no slip Hydraulic motor 4812112211 Rear axle motor Loop flusing Hydraulic system, rear axle Anti-spin system Hydraulic motor 4812112210 Rear axle motor Front section Rear section Hydraulic system, rear axle Dual speed Hydraulic motor 4812112207 Axle motor Hydraulic system, oil tank Hydraulic oil tank assembly Connector assy Hydraulic valve module 4812112238 Hydraulic valve Fan module, front 4812117797 Hydraulic motor Fan module, rear 4812117796 Hydraulic motor Hydraulic system, engine room Hydraulic pump module Hydraulic oil filter assy Hydraulic pump module 4812112170 Hydraulic pump, propul pump Front section Rear section Hydraulic pump module 4812118150 Hydraulic pump, steering Hydraulic system, engine room Adjustable frequency, eco opti Hydraulic pump 4812112180 Hydraulic pump Hydraulic pump module 4812118151 Hydraulic pump Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, steering Hydraulic cylinder Steering valve module Hydraulic hoses, steering Hydraulic system, emergency steering 4812112188 Hydraulic pump Emergency steering unit 4812112236 Hydraulic valve Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electrical cables, engine - ECU Horn, back-up alarm Standard ECU assembly Power converter module Inclination sensor module Back-up alarm module Back-up alarm module Bracket module Cable harness kit Power supply cab Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Reversing light module DCA/GPS equipment module, option Holder Computer GPS equipment module GPS equipment assy Speed sensor, frequency sensor, option Pulse sensor module Pre-heater installation, option Heater Rotating beacon, working light, option Working light module H3 Rotating beacon module Bracket, Rotating beacon Tachograph, option Holder assy Power supply module Cable harness, emergency steering, option Displacement shift Compaction meter, option Power supply External emergency stop, option Platform, rops 4812120545 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Decals basic kit Cab symmetric module 4812119366 Cab, cpl Comfort Screens Windshield wiper Roof Heater assy Hose kit heater Cab Interior Heater controls Cab cable harness Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, wiper switch Air channel Sun-blind, inner light 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand 4812119367 Cab, cpl Basic Cab, rear cover Cab, front cover Wiper switch, front Rear view mirror Heater hoses Car stereo module, option Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Seat, fabric suspensioned Seat, galon suspensioned Floor cassette module Control module Seat belt 2" Seat belt 3" Seat belt 2" with reminder Seat belt 3" with reminder Forward reverse control module Display unit Reading light Control panel cover Decals Decals Air conditioning Drying filter module 4812114257 Drying filter assy Condensor assembly AC module 4812113623 Evaporator, cpl Hose kit AC ACC module 4812113624 ACC kit Compressor module Hose assy kit for AC Strike of blade kit Hydraulic and Electrical kit 4812121948 Hydraulic cylinder Strike off blade, mount Locking device, module Indicator, module Fire extinguisher/First Aid Cushion Fire extinguisher Level sensor module, option SMV-sign Cooling box module Lunch box

1

1

2

3

4

4

4

5

5

6

7

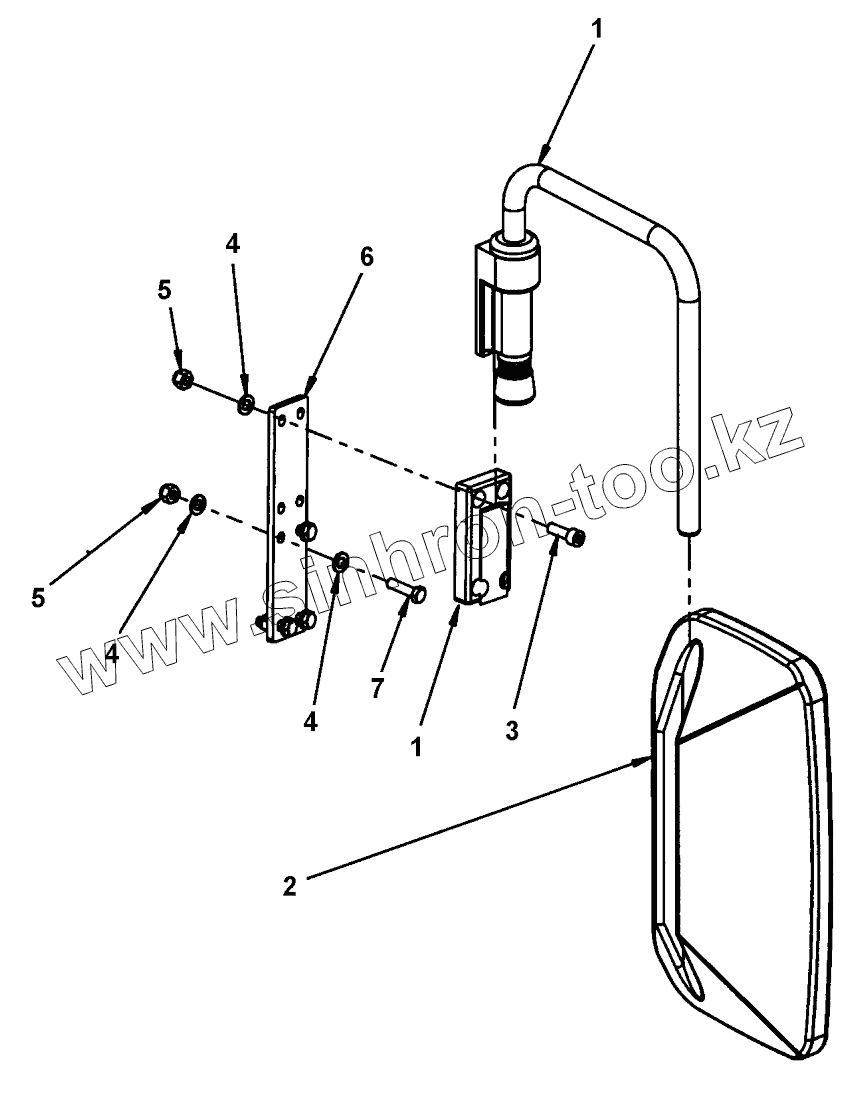

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812110367		Bracket
2	4700381943		Mirror
3	4700508019		Cylinder screw
4	4700904229		Washer
5	4700586003		Hexagon lock nut
6	4812117964		Bracket
7	4700500022		Hex. screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
