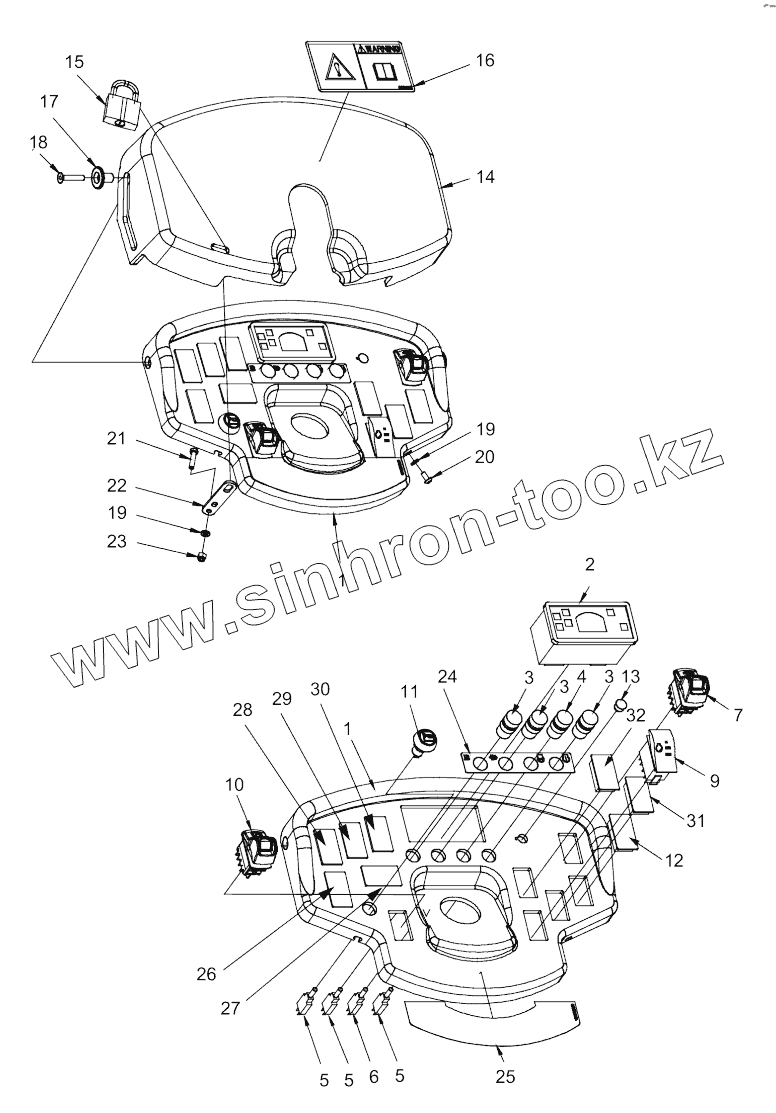

Каталог запасных частей к технике: DYNAPAC CA1400. Instrument panel
1
1
2
3
3
3
4
5
5
5
6
7
9
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
26
27
28
28
29
30
31
31
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812122761 | Control panel | |
| 2 | 4700395394 | Control panel | |
| 3 | 4700792319 | Pilot lamp Yellow | |
| 4 | 4700792435 | Pilot lamp Red | |
| 5 | 4700792315 | Contact block Yellow | |
| 6 | 4700792432 | Contact block Red | |
| 7 | 4812120191 | Switch, engine regeneration | |
| 9 | 4812117490 | Switch, green ECO | |
| 10 | 4812118697 | Switch, parking brake | |
| 11 | 4812122782 | Switch, horn | |
| 12 | 4700791588 | Panel plug | |
| 12 | 4700792240 | Switch, levelling blade | |
| 13 | 4700792083 | Plug | |
| 14 | 4700387227 | Control panel cover | |
| 15 | 4700358881 | Pad lock | |
| 16 | 4700903459 | Decal SAFETY | |
| 17 | 4700357855 | Bushing | |
| 18 | 4700513017 | Screw | |
| 19 | 4700904281 | Washer | |
| 20 | 4700903658 | Screw | |
| 21 | 4700500007 | Screw | |
| 22 | 4700387545 | Latch | |
| 23 | 4700586001 | Lock nut | |
| 24 | 4812117993 | Decal | |
| 25 | 4812120340 | Decal Start instruction | |
| 26 | 4700791588 | Panel plug | |
| 26 | 4700791585 | Switch, rotating beacon | |
| 27 | 4700791588 | Panel plug | |
| 28 | 4700791588 | Panel plug | |
| 28 | 4700791587 | Switch, working light | |
| 29 | 4700791588 | Panel plug | |
| 30 | 4700791588 | Panel plug | |
| 31 | 4700791588 | Panel plug | |
| 31 | 4700792240 | Switch, levelling blade | |
| 32 | 4700791588 | Panel plug | |
| 32 | 4700791657 | Switch, Hi-Lo Speed |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
