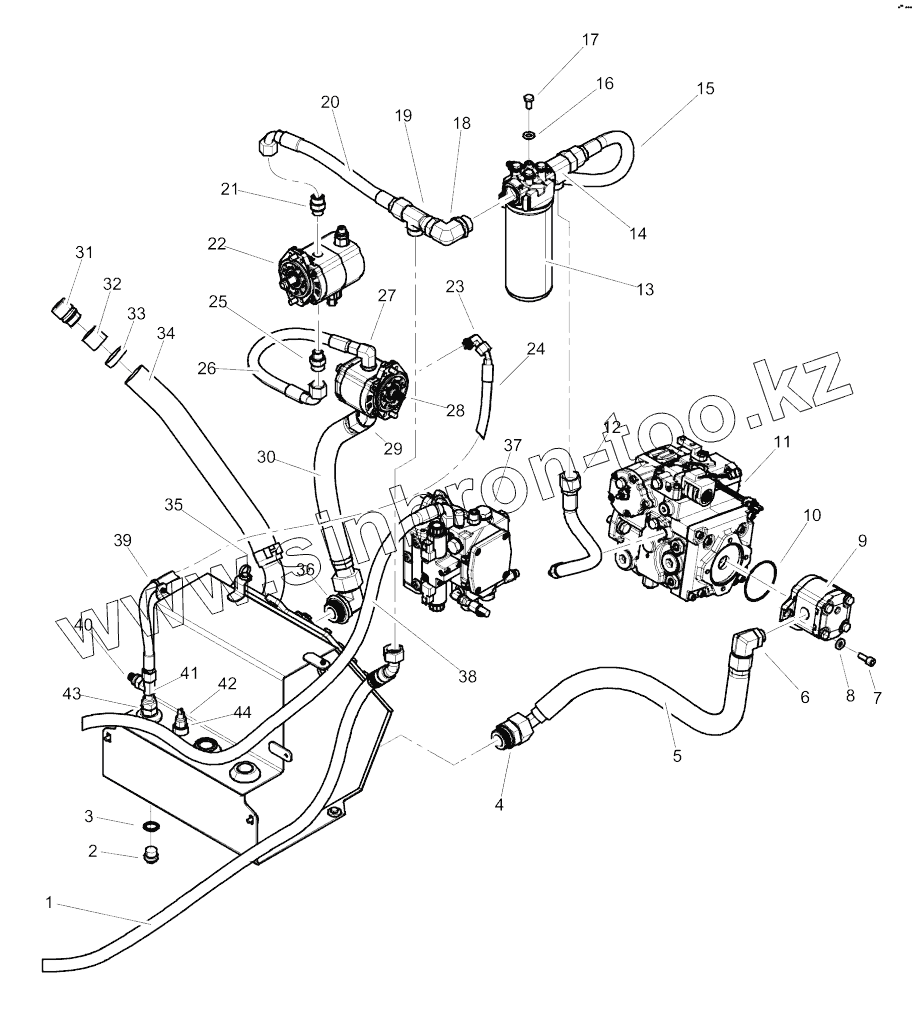

Каталог запасных частей к технике: DYNAPAC CA1400. Hydraulic system, rear frame
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812117083 | Hydraulic hose | |
| 2 | 4700904743 | Steel plug threaded | |
| 3 | 4700162019 | Seal ring | |
| 4 | 4812124545 | Straight connector ORFS | |
| 5 | 4812124534 | Hydraulic hose | |
| 6 | 4700791400 | Elbow | |
| 7 | 4811000389 | Screw | |
| 8 | 4700904557 | Washer | |
| 9 | 4812123628 | Hydraulic pump | |
| 10 | 4700160276 | O-ring | |
| 11 | 4812123627 | Hydraulic pump | |
| 12 | 4812117058 | Hydraulic hose | |
| 13 | 4812112260 | Hydraulic oil filter | |
| 13 | 4812112262 | Hydraulic oil filter element | |
| 14 | 4812117681 | Tee-connector orfs | |
| 15 | 4812124729 | Hydraulic hose | |
| 16 | 4700904230 | Washer | |
| 17 | 4700500048 | Hex. screw | |
| 18 | 4700791321 | Connector elbow 90 orfs | |
| 19 | 4700904496 | Adapter | |
| 20 | 4812121151 | Hydraulic hose | |
| 21 | 4700792074 | Straight connector | |
| 22 | 4812123163 | Fan motor | |
| 23 | 0570704101 | Connector Elbow 90 | |
| 24 | 4812117066 | Hydraulic hose | |
| 25 | 4700792074 | Straight connector | |
| 26 | 4812117064 | Hydraulic hose | |
| 27 | 4700791699 | Elbow 90° | |
| 28 | 4812116870 | Hydraulic pump | |
| 29 | 4700792707 | Elbow 45° | |
| 30 | 4812117063 | Hydraulic hose | |
| 31 | 4700357138 | Ventilating filter | |
| 32 | 4700357139 | Connector | |
| 33 | 4700313008 | Hose clamp | |
| 34 | 4812117535 | Hydraulic hose | |
| 35 | 4700923378 | Hose clamp | |
| 36 | 4812112556 | Connector elbow 90 orfs | |
| 37 | 4812122929 | Hydraulic pump | |
| 38 | 4812124575 | Hydraulic hose | |
| 39 | 4700792441 | Cable tie with holder | |
| 40 | 4700792823 | Adapter | |
| 41 | 4700791798 | Adapter | |
| 42 | 4700792276 | Temperature sensor | |
| 43 | 4700791635 | Straight connector | |
| 44 | 4700330331 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
