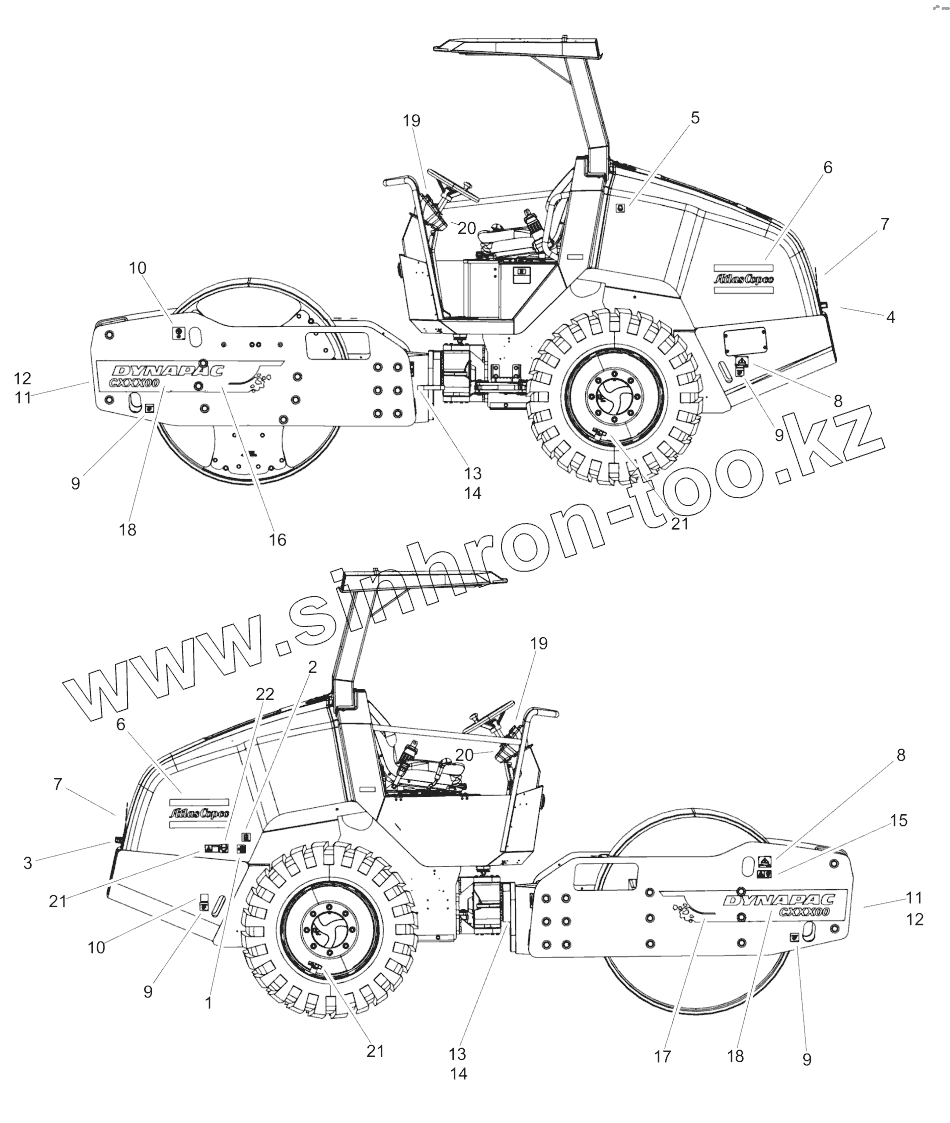

Каталог запасных частей к технике: DYNAPAC CA1400. Decals
1
2
3
4
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
19
21
21
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700272373 | Decal HYDRAULIC LEVEL | |
| 2 | 4700272372 | Decal HYDRAULIC OIL | |
| 3 | 4700903423 | Safety label, Rotating engine components | |
| 4 | 4700903424 | Safety decal HOT SURFACE | |
| 5 | 4700388449 | Decal ENGINE COOLANT FILL | |
| 6 | 4812120126 | Decal AC - logotype | |
| 7 | 4812120122 | Decal AC logotype White, H=190 | |
| 8 | 4700904870 | Lifting data plate | |
| 9 | 4700382751 | Decal SECURING POINT/TIE DOWN | |
| 10 | 4700357587 | Label, lift point | |
| 11 | 4812120126 | Decal AC - logotype | |
| 12 | 4700377743 | Reflector, white | |
| 13 | 4700903422 | Safety decal CRUSH AREA | |
| 14 | 4700377742 | Reflector, red | |
| 15 | 4700908229 | Safety decal | |
| 16 | 4812120096 | Decal COMPACTING ROCKS Left | |
| 17 | 4812120097 | Decal COMPACTING ROCKS Right | |
| 18 | 4812120112 | Decal MODEL CODE | |
| 19 | 4700903459 | Decal SAFETY | |
| 20 | Instructionsdecal | Starting instructions decal | |
| 21 | 4700903985 | Decal SAFETY | |
| 22 | 4700355983 | Decal TYRE PRESSURE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
