SOLAR 420LC-V
UPPER ROLLER (10050 -)

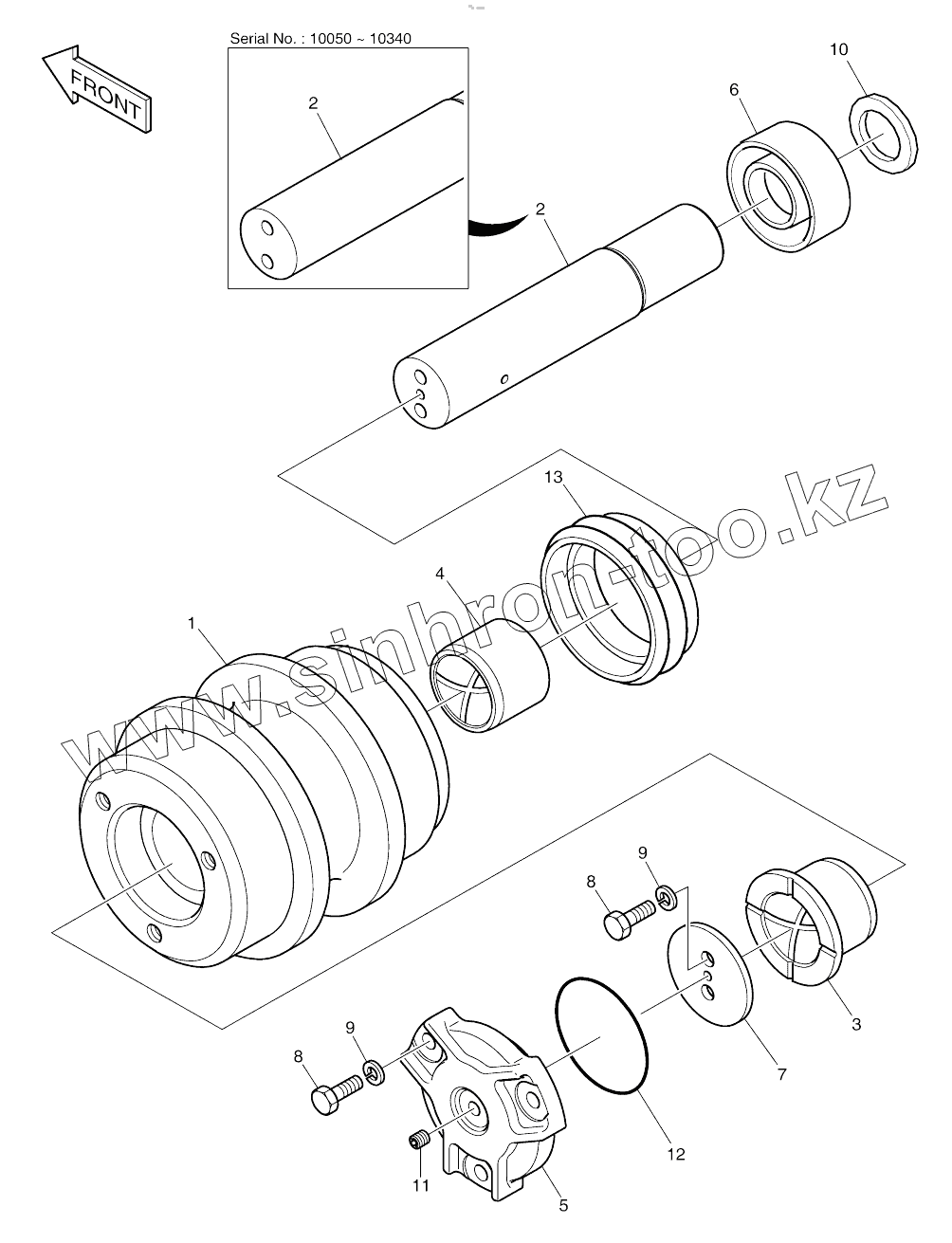

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. UPPER ROLLER (10050 -)
