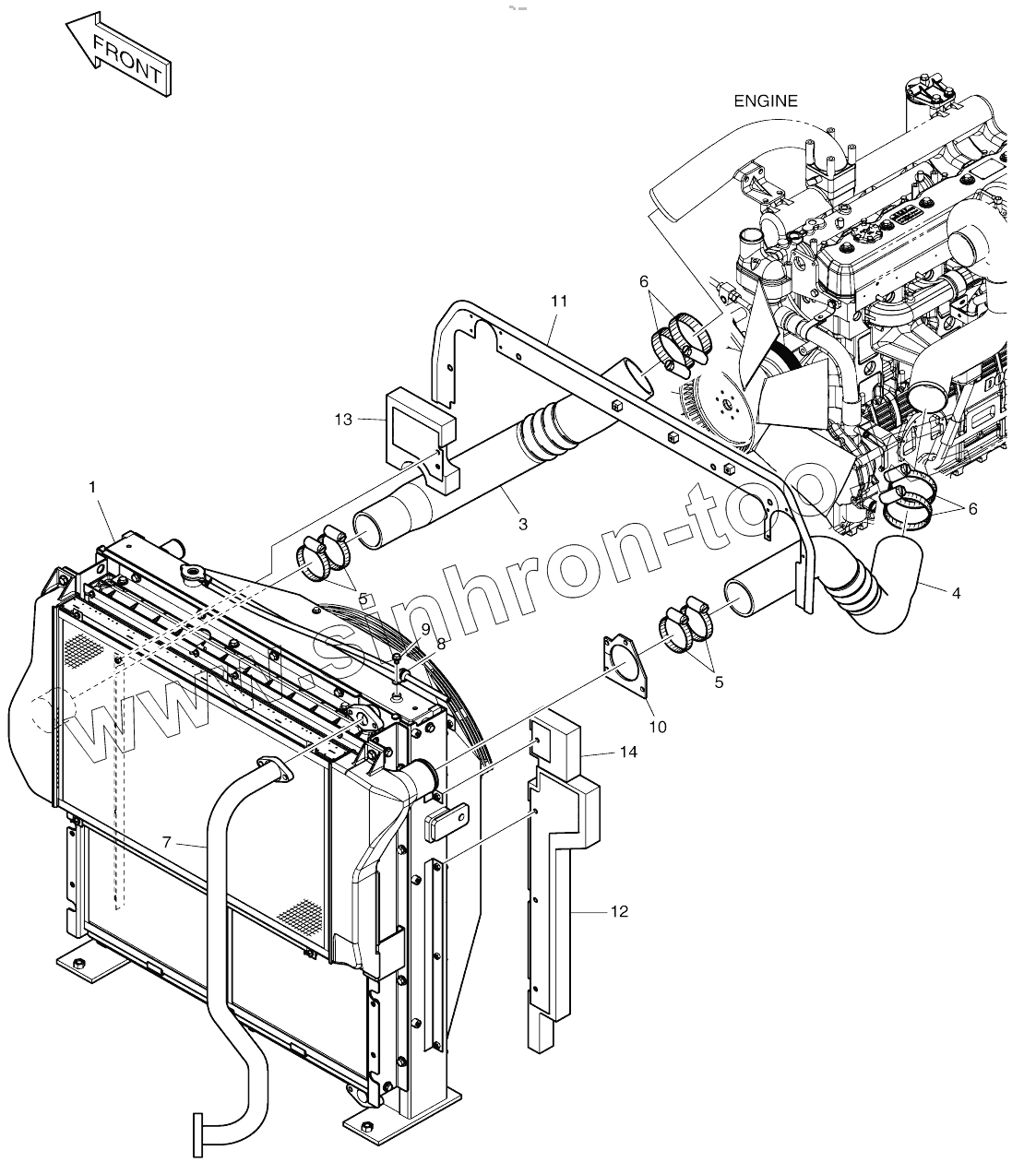

TROPICAL PARTS - TIER 2
RADIATOR - TROPICAL
1
3
4
5
5
6
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
150109-01257
150109-01257
ENGINE ASSY, TROPICAL
1
440211-00521
RADIATOR ASSY
3
420101-00844
HOSE,AIR
4
420101-00846
HOSE,AIR
5
S8500130
CLAMP, HOSE
6
S8500118
CLAMP, HOSE
7
420207-02401
PIPE
8
124-00208D2
CLIP D14/M8
9
K1001029
BOLT
10
180308-00524
RUBBER
11
110508-18398
COVER
12
110508-18399
COVER
13
110508-18400
COVER
14
110508-18401
COVER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
