516-00018
516-00018

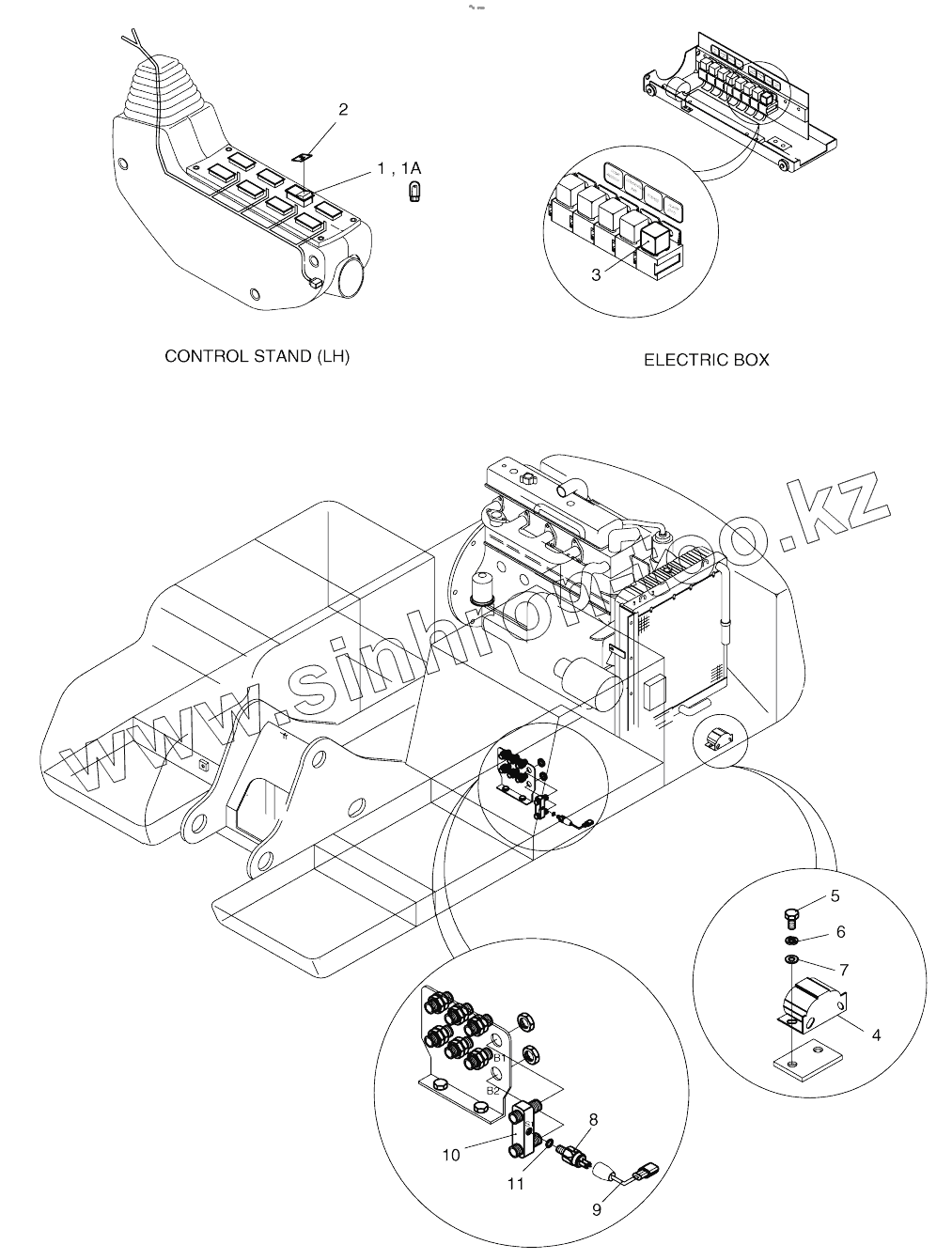

TRAVEL/SWING ALARM ASSY
1
2549-9109
SWITCH;LAMP
1A
K9000353
LAMP;PILOT
2
2190-2584D13
INSERT;TRAVEL/SWING ALARM
3
2544-9033
RELAY
4
516-00011
BUZZER;ALARM
5
S0508653
BOLT M8X1.25X16
6
S5102503
WASHER;SPRING
7
S5010513
WASHER;PLAIN M8
8
2549-9407
SWITCH;PRESSURE
9
2530-1423A
HARNESS;LOW PRESS SW
10
420-00282
VALVE, SHUTTLE
11
S8180221
PACKING
