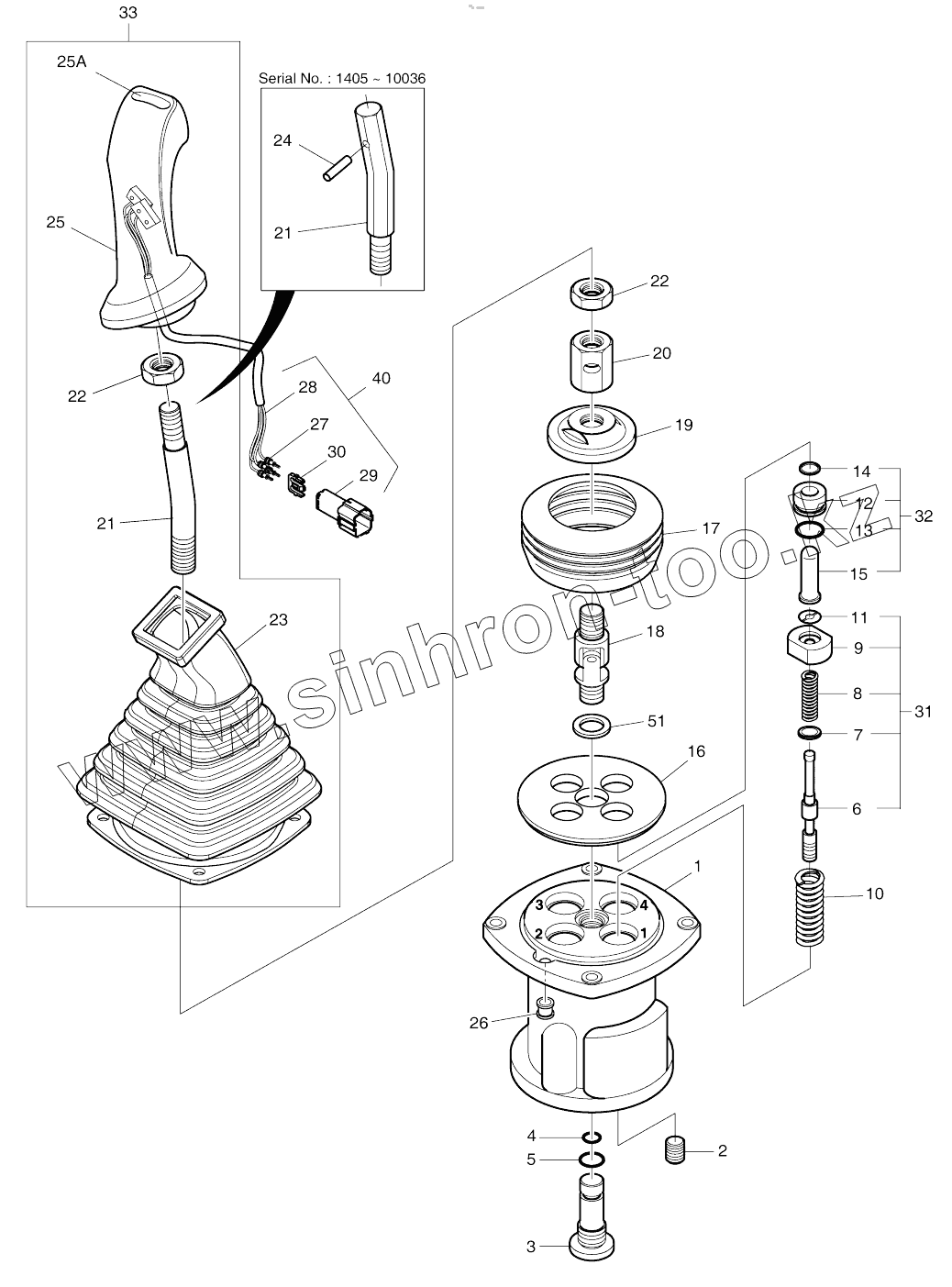

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. REMOTE CONTROL VALVE (1405 - )
420-00355A
410113-00069
410113-00069A
410113-00069B
420-00356A
410113-00070
410113-00070A
410113-00070B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
19
19
19
20
21
21
21
21
22
22
22
22
23
24
25
25
25
25
25A
25A
26
27
28
29
30
31
31
32
32
32
33
33
33
33
33
33
40
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420-00355A | 420-00355A | REMOTE CONTROL VALVE | |
| 410113-00069 | 410113-00069 | REMOTE CONTROL VALVE | |
| 410113-00069A | 410113-00069A | VALVE,REMOTE CONTROL, LH | |
| 410113-00069B | 410113-00069B | VALVE,REMOTE CONTROL, LH | |
| 420-00356A | 420-00356A | REMOTE CONTROL VALVE | |
| 410113-00070 | 410113-00070 | REMOTE CONTROL VALVE | |
| 410113-00070A | 410113-00070A | VALVE,REMOTE CONTROL | |
| 410113-00070B | 410113-00070B | VALVE,REMOTE CONTROL | |
| 1 | 1.402-00001 | Case | |
| 2 | 2181-1116D1 | Plug | |
| 3 | K9002911 | Plug | |
| 4 | S8002701 | O-ring | |
| 5 | S8000141 | O-RING | |
| 6 | 1.424-00015 | Spool | |
| 7 | 1.114-00012 | Shim | |
| 8 | 1.131-00027 | SPRING | |
| 9 | 1.427-00014 | SEAT, SPRING | |
| 10 | 1.131-00023 | Spring | |
| 11 | 161-00171 | STOPPER | |
| 12 | PLUG | Plug | |
| 13 | S8000201 | O-RING | |
| 14 | K9001127 | Seal, rod | |
| 15 | 1.428-00235 | ROD,PUSH | |
| 16 | 1.412-00017 | PLATE | |
| 16 | 250201-02097 | Plate | |
| 17 | 1.160-00004 | BOOT | |
| 17 | K9001128 | Boot | |
| 18 | 1.138-00004 | Joint assy | |
| 19 | 1.412-00131 | Plate, swash | |
| 19 | 1.412-00131A | PLATE,SWASH | |
| 19 | K9001129A | Plate, swash | |
| 19 | 400901-00076 | Plate, swash | |
| 20 | 1.121-00028 | Nut | |
| 21 | 1.178-00004 | Bar, handle | |
| 21 | K9009875 | BAR, HANDLE | |
| 22 | S4012833 | Nut | |
| 22 | S4012833 | Nut | |
| 23 | 1.160-00007 | Boot | |
| 24 | S5740800 | Pin, spring | |
| 25 | K9001224 | Handle assy | |
| 25 | K9009876 | HANDLE ASSY | |
| 25 | K9001225 | Handle assy | |
| 25 | K9009877 | HANDLE ASSY | |
| 25A | 1.161-00016 | CAP;PEANUT | |
| 25A | 1.161-00021 | CAP;PEANUT | |
| 26 | 1.110-00169 | Bushing | |
| 27 | TERMINAL | Terminal | |
| 28 | WIRE,SEAL | WIRE, SEAL | |
| 29 | HOUSING | Housing | |
| 30 | HOLDER,REAR | HOLDER, REAR | |
| 31 | 1.424-00035 | SPOOL KIT | |
| 31 | 410207-00529 | SPOOL KIT | |
| 32 | 1.181-00085A | PLUG KIT | |
| 32 | 430221-00916 | KIT, PLUG | |
| 32 | 430221-00916B | PLUG KIT | |
| 33 | K9001228 | Handle kit | |
| 33 | 110925-00116 | HANDLE KIT | |
| 33 | 110925-00253 | HANDLE KIT | |
| 33 | K9001229 | Handle kit | |
| 33 | 110925-00117 | HANDLE KIT | |
| 33 | 110925-00254 | HANDLE KIT | |
| 40 | K9001001 | SWITCH ASS'Y | |
| 51 | 110951-01142 | Spacer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
