Каталог запасных частей к технике: Doosan SOLAR 420LC-V. OVER HAUL GASKET KIT - ALL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
65.99601-8042
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
22
23
24
25
26
27
27
28
29
29
30
30
31
31
32
33
34
35

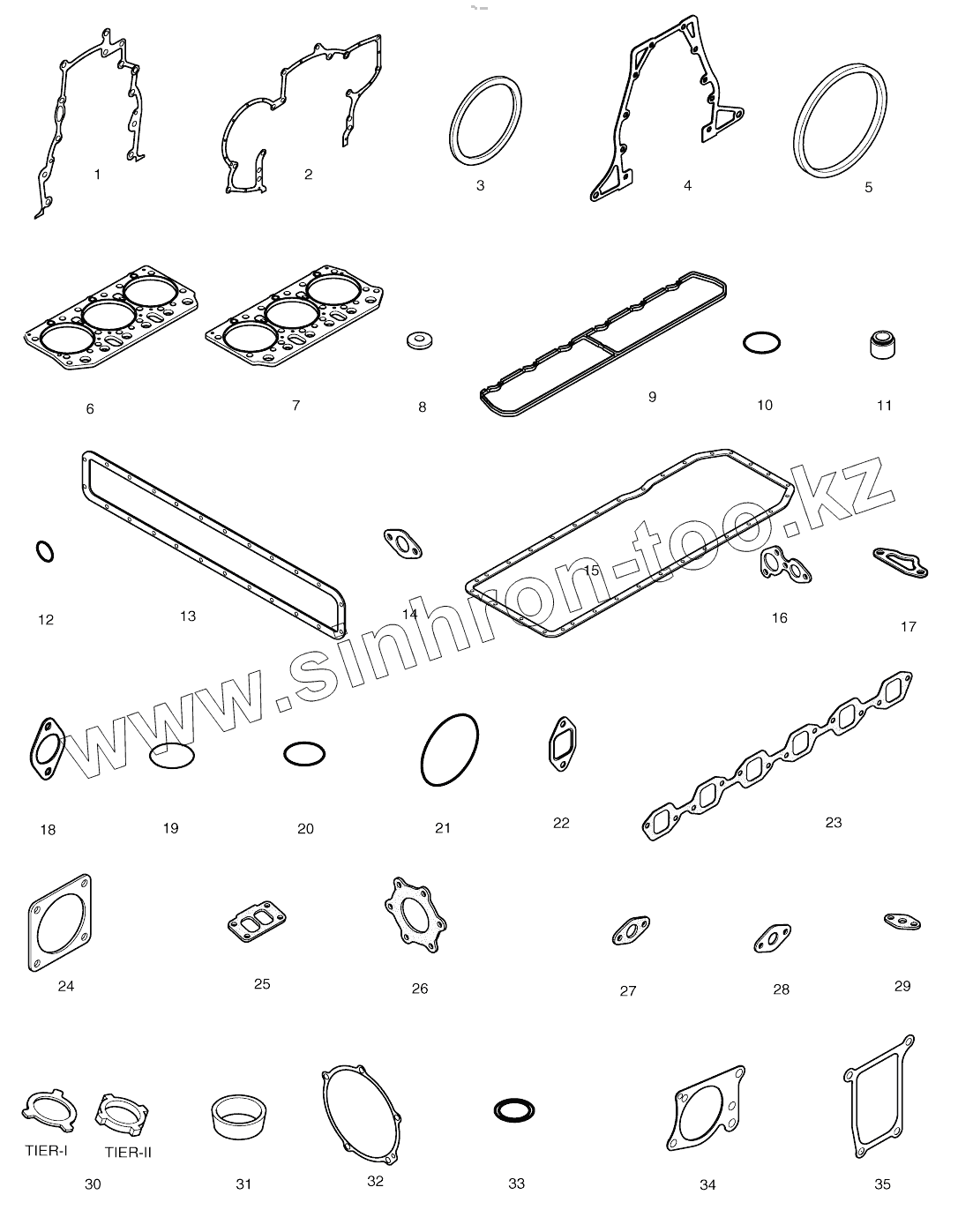

Позиция на иллюстрации Заводской номер детали Название детали
65.99601-8042 65.99601-8042 OVER HAUL GASKET KIT-ALL
1 65.01903-0048B GASKET
2 65.01903-0050 GASKET, T.G.C COVER
3 65.01510-0157 SEAL, OIL
4 65.01904-0022A GASKET, F.W.H
5 65.01510-0158 SEAL
6 65.03901-0063B GASKET, CYLINDER HEAD
6 65.03901-0072 GASKET, CYLINDER HEAD
7 65.03901-0064B GASKET, CYLINDER HEAD
7 65.03901-0073 GASKET, CYLINDER HEAD
8 65.03905-0023A GASKET;CYLINDER HEAD COVER MOUNTIN
9 65.03905-0020 PACKING
10 65.96501-0033B O-RING
11 65.04902-0010 SEAL, VALVE STEM
12 65.96501-0061 O-RING
13 65.01907-0008A GASKET
14 65.05903-0030A GASKET, OIL RETURN PIPE
15 65.05904-0096A GASKET, OIL PAN
16 65.05903-0027A GASKET
17 65.06903-0018 GASKET, COOLING WATER PIPE
17 65.06903-0028 GASKET, COOLING WATER PIPE
18 65.06903-0020A GASKET
18 65.06903-0020 GASKET
19 65.06901A0069 Gasket
20 06.56342-1208 O-ring
21 65.96501-0068 O-RING
22 65.08901A0012 GASKET, EXHAUST MANIFOLD
22 65.08901-0044 GASKET, EXHAUST MANIFOLD
23 65.08902-0025 GASKET, INTAKE MANIFOLD
24 65.09904-0008 GASKET
25 65.09901-0033 Gasket
26 65.08901-0063 Gasket
27 65.96601-0067 Gasket
27 65.96601-0045A GASKET
28 65.96601-0012 GASKET, T/C OIL RETURN
29 65.96601-0046A Gasket
29 65.96601-0046B Gasket
30 65.98701-0010 SEAL, RING
30 65.98701-0012 SEAL, RING
31 65.96401-0011 SEAL, DUST NOZZLE
31 65.96401-0012 SEAL, DUST NOZZLE
32 65.11902-0017 GASKET
33 06.56180-0712 Ring
34 65.47901-0010 GASKET, P/S PUMP
35 65.54901-0025A GASKET, AIR COMPRESSOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
