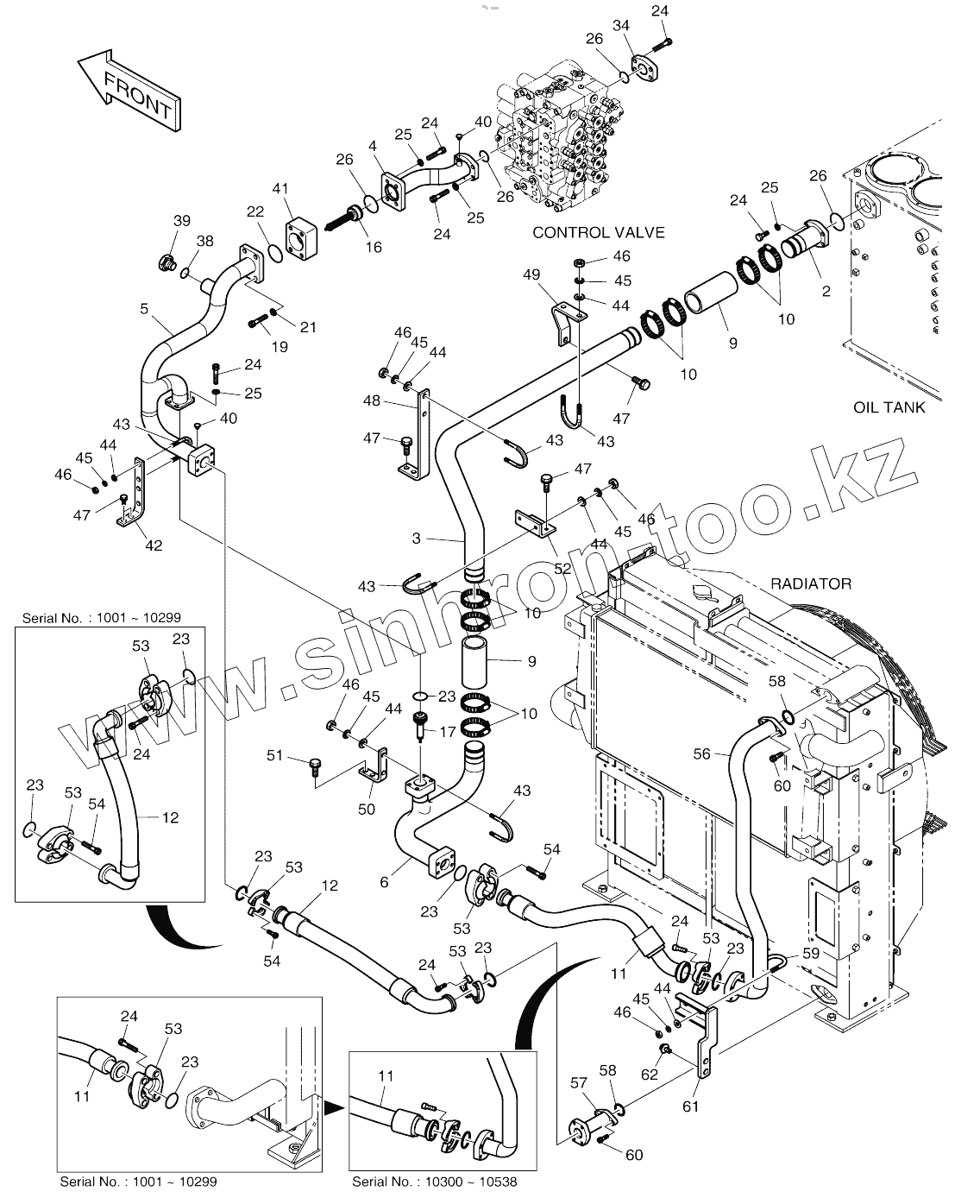

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. OIL COOLER PIPING (2)
420212-06197
400-00738
2
3
4
5
5
6
6
9
9
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
16
16
17
19
21
22
23
23
23
23
23
23
23
23
24
24
24
24
24
24
24
24
24
25
25
25
25
26
26
26
26
34
38
39
40
40
41
42
43
43
43
43
43
44
44
44
44
44
44
44
44
44
44
44
44
45
45
45
45
45
45
45
45
45
45
45
45
46
46
46
46
46
46
46
46
46
46
46
46
47
47
47
47
48
49
50
51
52
53
53
53
53
53
53
53
54
54
54
56
57
58
58
59
60
60
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420212-06197 | 420212-06197 | PIPING,OIL COOLER | |
| 400-00738 | 400-00738 | OIL COOLER PIPING | |
| 2 | 140-00867 | PIPE | |
| 3 | 140-00940A | PIPE | |
| 4 | 140-00941A | PIPE | |
| 5 | 140-00942A | PIPE | |
| 5 | 140-00942B | PIPE | |
| 6 | 140-00943B | PIPE | |
| 6 | 140-00943C | PIPE | |
| 9 | 2185-1776D11 | HOSE, RUBBER | |
| 10 | S8450082 | CLAMP;HOSE | |
| 11 | DS2038112 | HOSE | |
| 11 | DS2038158 | HOSE | |
| 11 | DS2039252 | HOSE ASSY,HYDRAULIC | |
| 12 | DS2040396 | HOSE | |
| 12 | DS2045292 | HOSE | |
| 16 | 422-00041 | Valve, by-pass | |
| 16 | 420-00261B | Valve, bypass | |
| 17 | 420-00304 | Valve, by-pass | |
| 19 | S2221566 | BOLT;SOCKET M16X2.0X45 | |
| 21 | S5110903 | WASHER;SPRING | |
| 22 | 2180-1026D32 | O-RING | |
| 23 | 2180-1026D27 | O-RING | |
| 24 | S2215466 | BOLT;SOCKET | |
| 25 | S5110703 | Washer | |
| 26 | 2180-1026D31 | O-RING | |
| 34 | 2181-2157D9 | FLANGE, COVER | |
| 38 | S8000291 | O-RING | |
| 39 | 2181-1950D9 | PLUG PFO1 | |
| 40 | 2181-2047A | PLUG | |
| 41 | 423-00114A | Block | |
| 42 | 195-01615A | BRACKET | |
| 43 | 120-00269A | U-BOLT | |
| 44 | 2114-1058D46 | WASHER | |
| 44 | 2114-1058D46 | WASHER | |
| 45 | S5102703 | WASHER;SPRING M10 | |
| 45 | S5102703 | WASHER;SPRING M10 | |
| 46 | S4012733 | NUT M12 | |
| 46 | S4012733 | NUT M12 | |
| 47 | 2120-2196D8 | Bolt | |
| 48 | 195-01649B | BRACKET | |
| 49 | 195-01650B | BRACKET | |
| 50 | 195-01651 | BRACKET | |
| 51 | 2120-2196D11 | BOLT;SET | |
| 52 | 195-01652A | BRACKET | |
| 53 | 4215-1003D6 | Flange, split | |
| 54 | S2215266 | BOLT | |
| 56 | 420207-01535 | PIPE | |
| 57 | K1000954B | PIPE | |
| 58 | 2180-1026D28 | O-RING | |
| 59 | 2120-1413D12 | BOLT;U | |
| 60 | S2215366 | BOLT;SOCKET M12X1.75X35 | |
| 61 | 110406-01586 | BRACKET | |
| 62 | DS0025018 | BOLT |
