Каталог запасных частей к технике: Doosan SOLAR 420LC-V. MAIN PIPING - PE3C
K1044305
K1044305
K1044305
K1007562F1
K1007562F1
K1007562F1
1
1
1
1
1
1
1
1
1
2
3
3
3
3
3
3
4
5
6
6
7
7
8
9
10
11
11
11
11
12
12
12
12
13
13
13
13
14
14
14
14
15
15
15
15
15
15
16
16
17
17
18
18
18
18
18
18
19
19
19
19
20
20
20
20
21
21
22
22
22
22
22
23
23
23
23
23
23
23
23
23
23
24
24
24
24
24
24
24
24
25
26
27
28
28
29
29
29
30
31
32
33
34
34

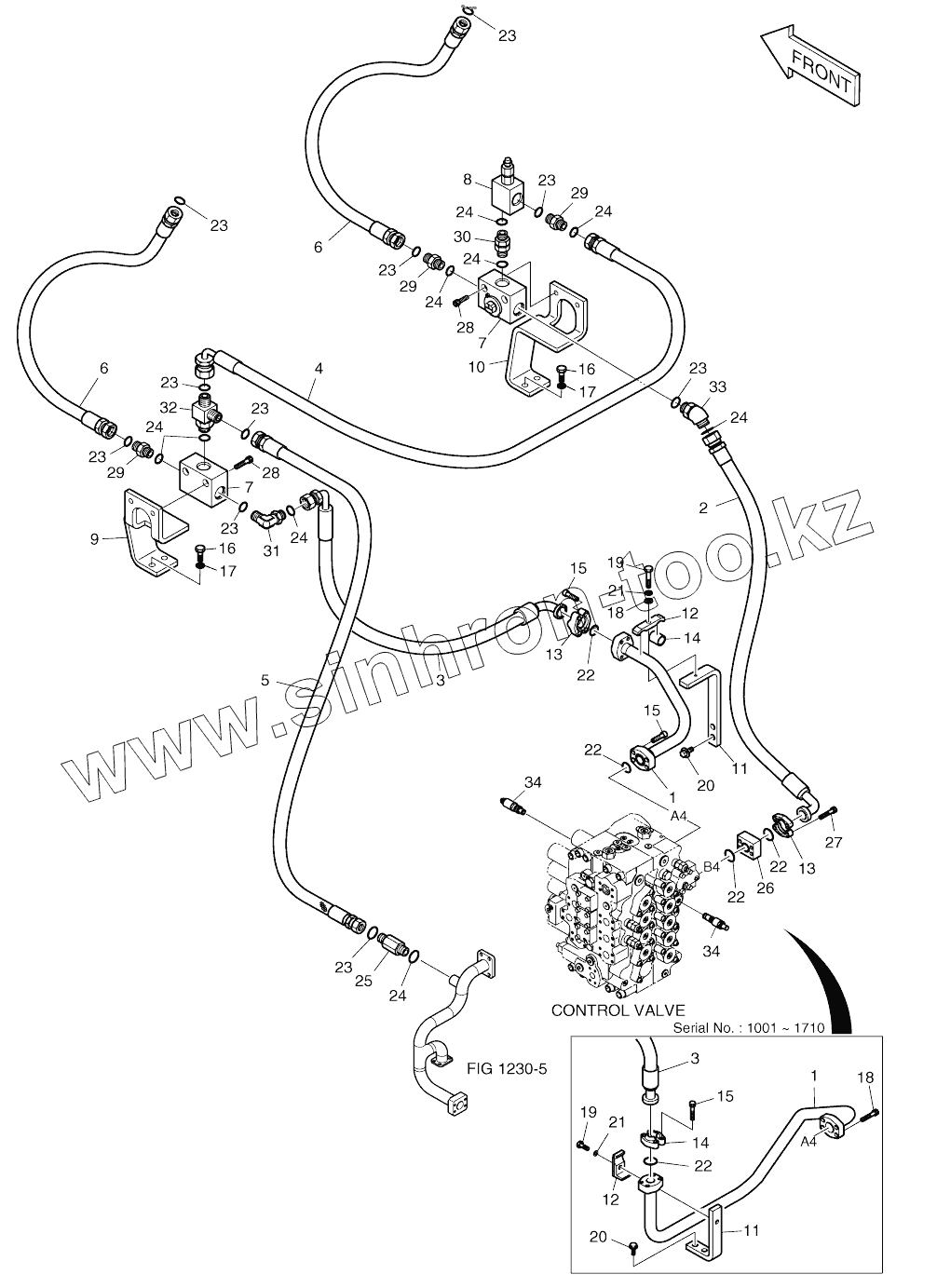

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| K1044305 | K1044305 | MAIN PIPING-PE3C | |
| K1007562F1 | K1007562F1 | MAIN PIPING-PE3C | |
| 1 | K1012113 | PIPE | |
| 1 | 420207-00720 | PIPE | |
| 1 | 140-01189 | PIPE | |
| 2 | DS2018103 | HOSE 1430L | |
| 3 | DS2025054 | HOSE 1250L | |
| 3 | DS2026122 | HOSE | |
| 4 | DS2013624 | HOSE 1600L | |
| 5 | DS2011444 | HOSE 1300L | |
| 6 | DS2011445 | HOSE 1650L | |
| 7 | K1002695A | Valve, switch | |
| 8 | 2420-9627B | VALVE;RELIEF | |
| 9 | K1007584 | BRACKET | |
| 10 | K1007585 | BRACKET | |
| 11 | 195-01944 | BRACKET | |
| 11 | K1012114A | BRACKET | |
| 12 | 2124-1026D3 | CLAMP;PIPE | |
| 12 | 2124-1025D5 | Clamp | |
| 13 | 2181-9081 | FLANGE;SPLIT | |
| 13 | 2181-9081 | FLANGE;SPLIT | |
| 14 | 2181-9078 | Flange | |
| 14 | DS7831048 | PIPE | |
| 15 | S2212266 | BOLT;SOCKET M10X1.5X30 | |
| 15 | S2215566 | BOLT | |
| 16 | S0512253 | BOLT M10X1.5X30 | |
| 17 | S5102603 | WASHER;SPRING M10 | |
| 18 | S2215466 | BOLT;SOCKET | |
| 18 | S5010713 | WASHER;PLAIN | |
| 19 | S0561053 | BOLT M12X1.75X65 | |
| 19 | S0561066 | BOLT | |
| 20 | 2120-2196D11 | BOLT;SET | |
| 20 | DS0025020 | BOLT | |
| 21 | S5102703 | WASHER;SPRING M10 | |
| 22 | 2180-1026D19 | O-RING | |
| 23 | S8030161 | O-RING | |
| 24 | S8000291 | O-RING | |
| 25 | 2181-4133D54 | ADAPTER | |
| 26 | 423-00158 | BLOCK | |
| 27 | S2216266 | BOLT | |
| 28 | S2215766 | Bolt | |
| 29 | 2181-4133D6 | ADAPTER PFO1-UNF1 7/16 | |
| 30 | 2181-2818 | ADAPTER;SP | |
| 31 | 2181-2815D1 | ELBOW | |
| 32 | 2181-2293D4 | Tee | |
| 33 | 2181-2816D2 | ELBOW | |
| 34 | 420-00258 | RELIEF VALVE |
