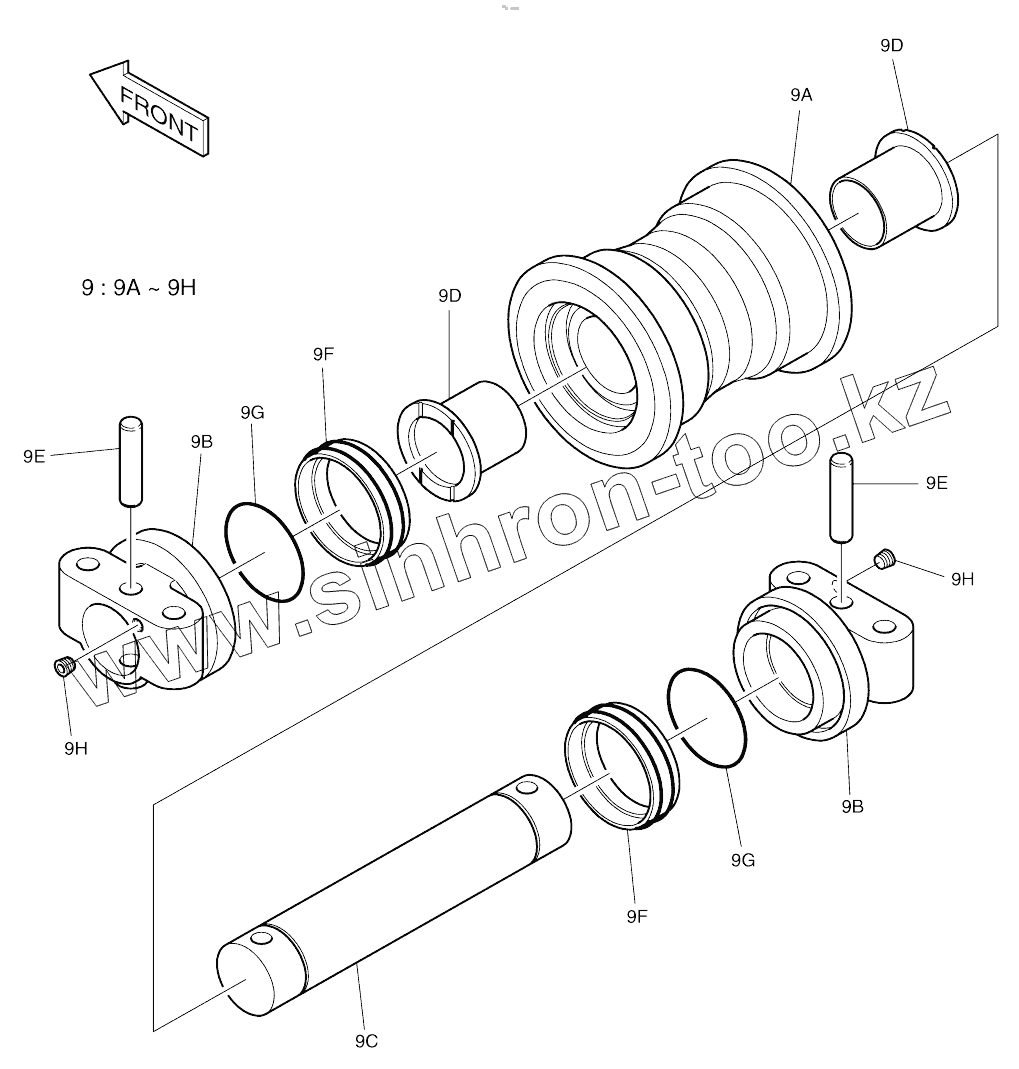

9A
9B
9B
9C
9D
9D
9E
9E
9F
9F
9G
9G
9H
9H
Позиция на иллюстрации
Заводской номер детали
Название детали
604-00142
604-00142
TRACK ASSY
9
2270-9404A
ROLLER, LOWER
9A
2270-6083
ROLLER
9B
2271-6020
COLLAR
9C
2112-6013
SHAFT
9D
2110-6070
BUSHING
9E
2123-6085
PIN
9F
2180-6080
SEAL, GROUP
9G
2180-6081
O-RING
9H
PLUG
Plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
