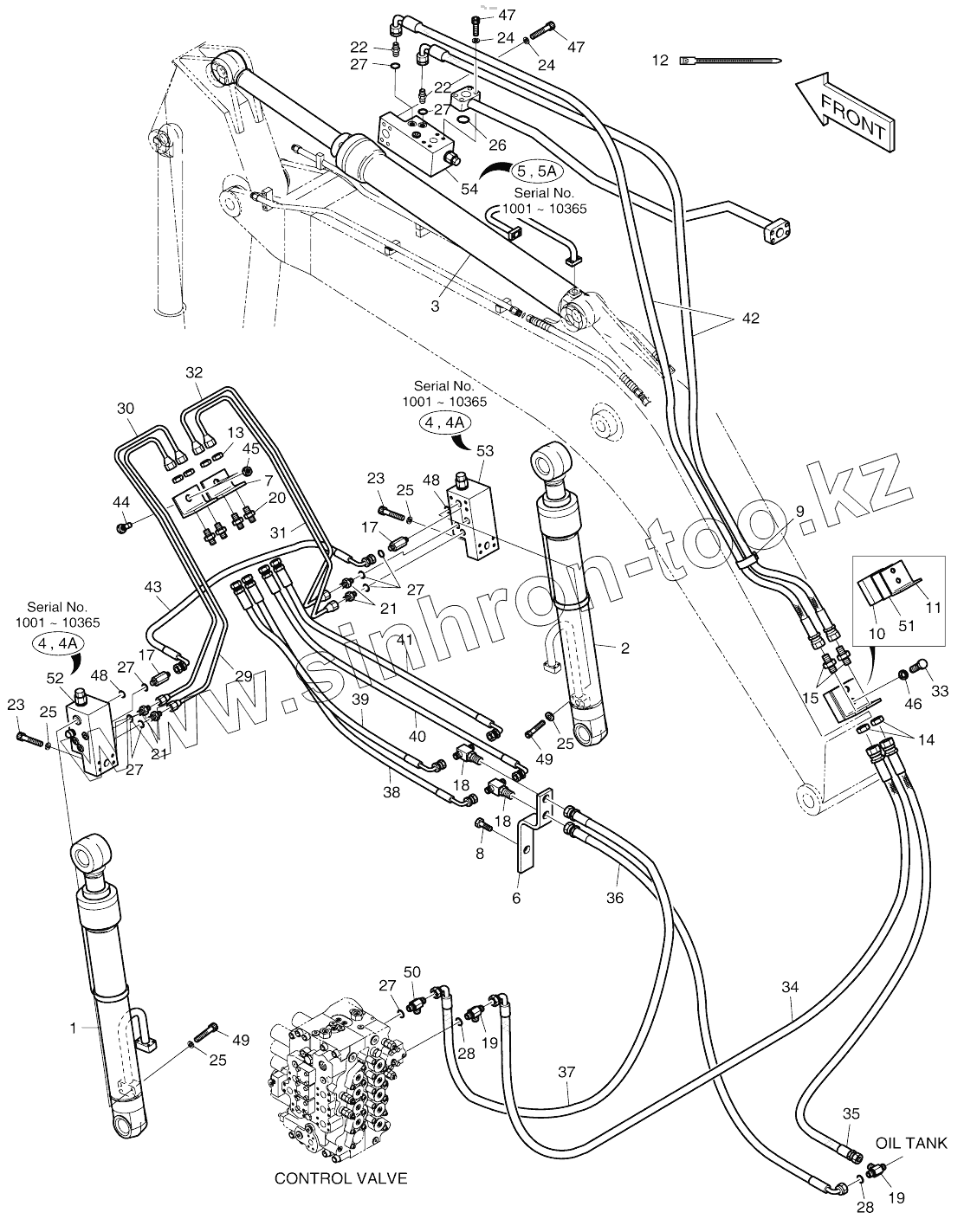

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. LOCK VALVE PIPING
400-00918A
420212-06582
1
1
2
2
3
3
4
4
4A
4A
5
5A
6
7
8
9
10
11
12
13
14
15
17
17
18
18
19
19
20
21
21
22
22
23
23
24
24
25
25
25
25
26
27
27
27
27
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
48
49
49
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-00918A | 400-00918A | LOCK VALVE PIPING | |
| 420212-06582 | 420212-06582 | PIPING,BOOM, BOOM LOCK | |
| 1 | 440-00055 | BOOM CYLINDER(L.H)-LOCK VALVE | |
| 1 | 440-00055A | BOOM CYLINDER(L.H)-LOCK VALVE | |
| 2 | 440-00056 | BOOM CYLINDER(R.H)-LOCK VALVE | |
| 2 | 440-00056A | BOOM CYLINDER(R.H)-LOCK VALVE | |
| 3 | 440-00322 | ARM CYLINDER-LOCK VALVE | |
| 3 | 440-00322A | ARM CYLINDER-LOCK VALVE | |
| 4 | 420-00004A | Valve, lock | |
| 4A | K9000999 | Seal kit | |
| 5 | 420-00021A | VALVE,LOCK | |
| 5A | K9001000 | SEAL KIT | |
| 6 | 195-01890 | BRACKET | |
| 7 | 195-01535A | BRACKET | |
| 8 | S0566666 | BOLT M16X2.0X120 | |
| 9 | 124-00199D5 | Clip | |
| 10 | 2114-1180D20 | SHIM | |
| 11 | 195-00163 | BRACKET | |
| 12 | 2124-1084D2 | CLIP;BAND | |
| 13 | S4032833 | NUT M14X1.5 | |
| 14 | 121-00010D1 | NUT | |
| 15 | 181-00078D5 | ADAPTER PF1/4-PF3/8 | |
| 17 | 2181-1126D34 | ADAPTER PFO1/4-PF1/4 | |
| 18 | 181-00008 | TEE | |
| 19 | 2181-1951D16 | TEE | |
| 20 | 2181-1923D12 | Adapter | |
| 21 | 2181-1916D5 | Adapter | |
| 22 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 23 | S2215766 | Bolt | |
| 24 | S5110803 | WASHER | |
| 25 | S5110703 | Washer | |
| 26 | S8000401 | O-RING | |
| 27 | S8000111 | O-RING | |
| 28 | S8000141 | O-RING | |
| 29 | 140-01155 | PIPE | |
| 30 | 140-01156 | PIPE | |
| 31 | 140-01157 | PIPE | |
| 32 | 140-01158 | PIPE | |
| 33 | S0563366 | BOLT | |
| 34 | 2184-1046D283 | HOSE PF3/8-2100L | |
| 35 | 2184-1045D194 | HOSE PF1/4-2800L | |
| 36 | DS2055541 | HOSE | |
| 37 | 2184-1046D284 | HOSE PF3/8-1800L | |
| 38 | 2184-1046D107 | Hose | |
| 39 | 2184-1046D108 | HOSE PF1/4-1300L | |
| 40 | 2184-1046D107 | Hose | |
| 41 | 2184-1046D108 | HOSE PF1/4-1300L | |
| 42 | 2184-1046D262 | HOSE | |
| 43 | DS2059383 | HOSE PF1/4-800L | |
| 44 | S0561353 | BOLT M12X1.75X80 | |
| 45 | S4012733 | NUT M12 | |
| 46 | S5102803 | Washer | |
| 47 | S2218966 | BOLT | |
| 48 | S8000341 | O-ring | |
| 49 | S2215866 | BOLT;SOCKET | |
| 50 | 2181-1951D20 | TEE | |
| 51 | 2114-1180D15 | SHIM | |
| 52 | 410114-00050 | VALVE,LOCK | |
| 53 | 410114-00049 | VALVE,LOCK | |
| 54 | 410114-00055 | VALVE,LOCK |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
