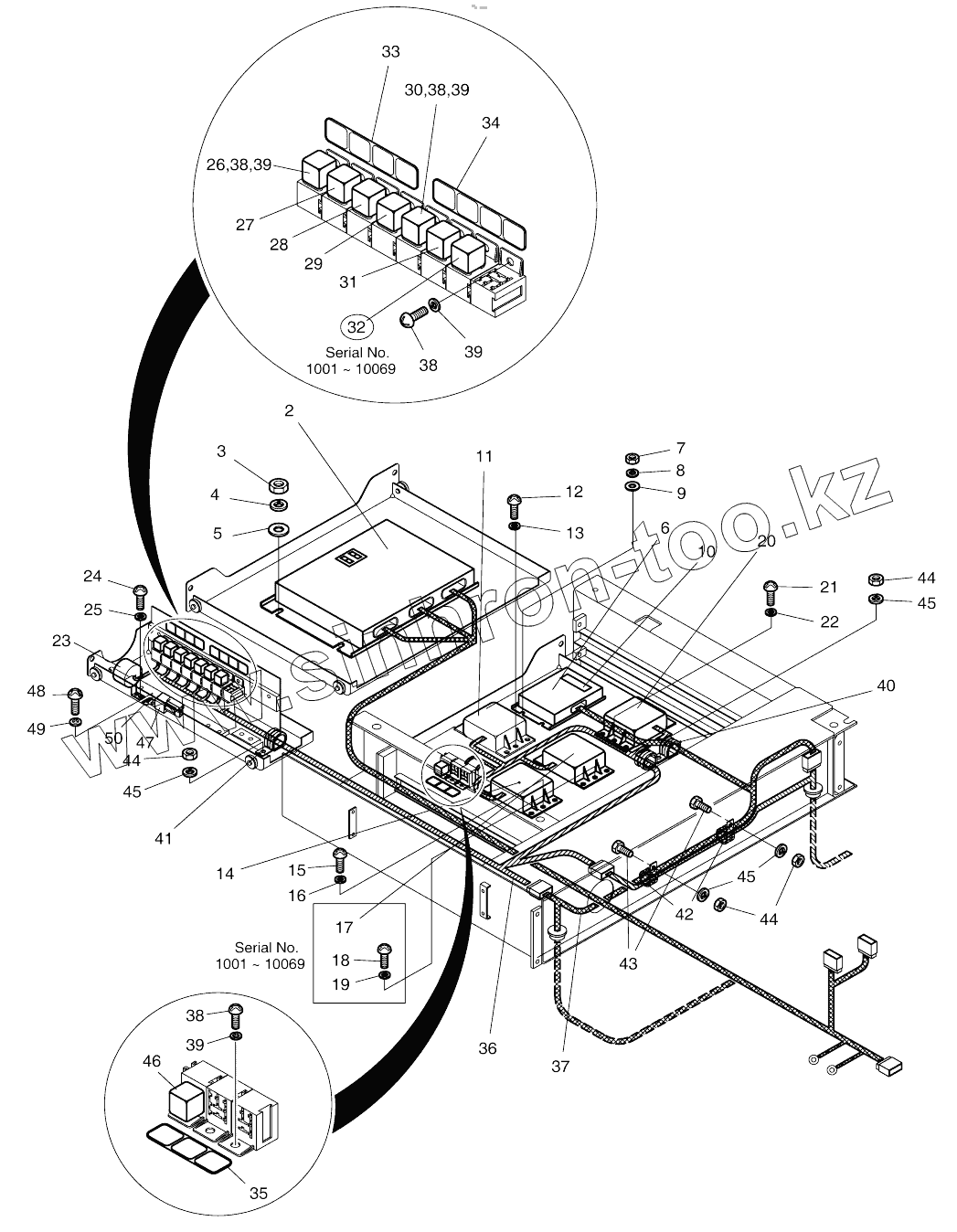

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. ELECTRIC BOX ASSY (2) - ELECTRIC PARTS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
500-00128C
500-00128B
300706-00666A
300706-00411B
300706-00411
300706-00063B
500-00128I
500-00128G
500-00128E
300706-00017
2
2
2
2
2
2
2
3
4
5
6
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
35
35
36
36
36
37
37
37
37
37
38
38
38
38
39
39
39
39
40
41
42
43
44
44
44
45
45
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
500-00128C 500-00128C ELECTRIC BOX ASSY
500-00128B 500-00128B ELECTRIC BOX ASSY
300706-00666A 300706-00666A BOX ASSY,ELECTRIC
300706-00411B 300706-00411B BOX ASSY,ELECTRIC
300706-00411 300706-00411 BOX ASSY,ELECTRIC
300706-00063B 300706-00063B BOX ASSY,ELECTRIC
500-00128I 500-00128I ELECTRIC BOX ASSY
500-00128G 500-00128G ELECTRIC BOX ASSY
500-00128E 500-00128E ELECTRIC BOX ASS`Y
300706-00017 300706-00017 BOX ASSY,ELECTRIC
2 543-00058A CONTROLLER, E-EPOS
2 543-00058B CONTROLLER, E-EPOS
2 543-00058C CONTROLLER, E-EPOS
2 543-00058E CONTROLLER, E-EPOS
2 300611-00157 CONTROLLER,EPOS
2 300611-00157A CONTROLLER,EPOS
2 300611-00157B CONTROLLER,EPOS
3 S4012633 NUT M10X1.5
4 S5102603 WASHER;SPRING M10
5 S5010613 WASHER;PLAIN
6 300611-00123 Controller, engine throttle
6 543-00074 CONTROLLER;THROTTLE
6 300611-00004 CONTROLLER,ENGINE THROTTLE
7 S4012333 NUT M6X1.0
8 S5102303 WASHER;SPRING M6
9 S5010313 WASHER;PLAIN
10 2190-3231D19 PLATE, NAME
10 2190-3231D23 PLATE, NAME
11 2543-9015 STARTER;CONTROLLER
12 S3450943 SCREW M6X1.0X10
13 S5102303 WASHER;SPRING M6
14 2537-9008 TIMER;WIPER
15 S3450943 SCREW M6X1.0X10
16 S5102303 WASHER;SPRING M6
17 2531-1003 CONVERTER;DC-DC (2)
18 S3450953 SCREW M6X1.0X12
19 S5102303 WASHER;SPRING M6
20 2531-1003 CONVERTER;DC-DC (2)
21 S3450953 SCREW M6X1.0X12
22 S5102303 WASHER;SPRING M6
23 2516-1116 BUZZER;PILOT
24 S3450943 SCREW M6X1.0X10
25 S5102303 WASHER;SPRING M6
26 2544-9033 RELAY
27 2544-9033 RELAY
28 2544-9033 RELAY
29 2544-9033 RELAY
30 2544-9033 RELAY
31 2544-9033 RELAY
32 2544-9033 RELAY
33 2190-2037D19 PLATE;NAME
33 2190-2037D100 Plate, name, relay
34 2190-2037D20 PLATE;NAME
34 2190-2037D103 Plate, name, relay
35 2190-2037D56 PLATE;NAME
35 2190-2037D99 Plate, name
36 310207-00997 Harness, electric box
36 530-00207A HARNESS;ELECTRIC BOX
36 530-00207B Harness, electric box
37 530-00208A HARNESS;CABIN
37 530-00208B HARNESS;CABIN
37 530-00208E Harness, cabin
37 310207-00998 Harness, cabin
37 310207-03192A Harness, cabin
38 S3450823 SCREW M5X0.8X10
39 S5100203 WASHER;SPRING
40 124-00208D3 CLIP D20/M8
41 124-00208D5 CLIP D32/M8
42 124-00208D6 CLIP D38/M8
43 S0508853 BOLT M8X1.25X20
44 S4012533 NUT M8X1.25
45 S5102503 WASHER;SPRING
46 2544-9033 RELAY
47 301202-00042 Relay
48 S3450953 SCREW M6X1.0X12
49 S5102303 WASHER;SPRING M6
50 2190-2037D101 Plate, name, relay
