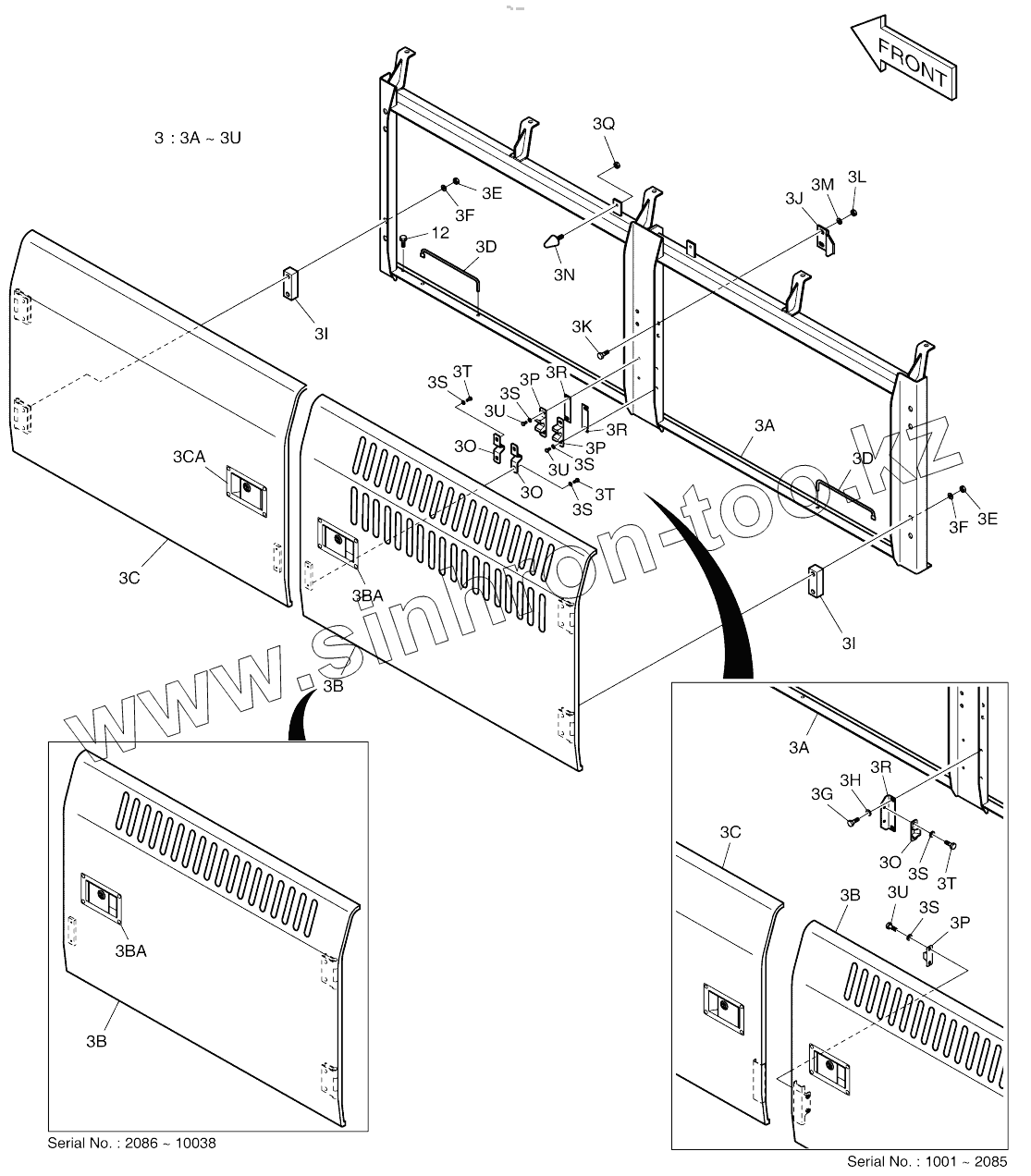

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. COVER (2)
3A
3A
3A
3A
3A
3A
3A
3A
3A
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3B
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3BA
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3C
3CA
3CA
3CA
3CA
3D
3D
3E
3E
3F
3F
3G
3H
3I
3I
3J
3K
3L
3M
3N
3O
3O
3O
3O
3O
3O
3O
3O
3P
3P
3P
3P
3P
3P
3Q
3R
3R
3R
3R
3R
3R
3R
3R
3S
3S
3S
3S
3S
3S
3T
3T
3T
3T
3T
3T
3T
3T
3U
3U
3U
3U
3U
3U
3U
3U
12
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 621-01744 | 621-01744 | COVER ASS`Y | |
| 110508-00131 | 110508-00131 | COVER ASSY | |
| 3 | 621-01642C | SIDE DOOR ASSY | |
| 3 | 621-01642E | SIDE DOOR ASSY | |
| 3 | 621-01642G | SIDE DOOR ASSY | |
| 3 | 621-01642H | SIDE DOOR ASSY | |
| 3 | 621-01642I | SIDE DOOR ASSY | |
| 3 | 110982-00268 | DOOR ASSY,SIDE, RADIATOR | |
| 3 | 110982-00410 | DOOR ASSY,SIDE | |
| 3A | 195-01553C | SUPPORT | |
| 3A | 195-01553E | SUPPORT | |
| 3A | 110958-00355 | SUPPORT, SIDE DOOR | |
| 3B | 621-01641A | DOOR, SIDE | |
| 3B | 621-01641B | DOOR, SIDE | |
| 3B | 621-01641C | DOOR, SIDE | |
| 3B | 621-01641E | DOOR, SIDE | |
| 3B | 110982-00269 | DOOR, SIDE | |
| 3B | 110517-00035 | DOOR, SIDE | |
| 3BA | 125-00034 | LOCK | |
| 3BA | 125-00082 | LOCK | |
| 3BA | 125-00082A | LOCK | |
| 3BA | K1006422 | LOCK | |
| 3C | 621-01645A | SIDE DOOR | |
| 3C | 621-01645B | SIDE DOOR | |
| 3C | 621-01645C | SIDE DOOR | |
| 3C | 621-01645E | SIDE DOOR | |
| 3C | 110982-00270 | DOOR,SIDE, AIRCLEANER ROOM | |
| 3CA | 125-00035 | LOCK(R.H.) | |
| 3CA | 125-00083 | LOCK(R.H.) | |
| 3CA | 125-00083A | LOCK(R.H.) | |
| 3CA | K1006423 | LOCK(R.H.) | |
| 3D | 2145-1237 | STAY | |
| 3E | S4012733 | NUT M12 | |
| 3F | 2114-1058D30 | WASHER;PLAIN | |
| 3G | S0508753 | BOLT M8X1.25X18 | |
| 3H | S5010513 | WASHER;PLAIN M8 | |
| 3I | 2891-1912 | SEAT, SCREW | |
| 3J | 161-00320 | PLATE, STOPPER | |
| 3K | S0512053 | BOLT M10X1.5X25 | |
| 3L | S4012633 | NUT M10X1.5 | |
| 3M | 2114-1058D10 | WASHER | |
| 3N | 2161-2226 | STOPPER | |
| 3O | 2161-9052 | STOPPER;PLATE | |
| 3O | 250201-00028 | PLATE | |
| 3P | 2161-9053 | STOPPER;RUBBER | |
| 3P | 110956-00002 | STOPPER, RUBBER | |
| 3Q | S4012633 | NUT M10X1.5 | |
| 3R | 2116-1522 | PLATE | |
| 3R | 110947-00027 | SHIM | |
| 3S | S5010313 | WASHER;PLAIN | |
| 3T | S0504553 | BOLT M6X1.0X14 | |
| 3T | S0504353 | BOLT M6X1.0X10 | |
| 3U | S0504453 | BOLT M6X1.0X12 | |
| 3U | S0504653 | BOLT M6X1.0X12 | |
| 12 | 2120-2196D9 | BOLT;SET M12X1.75X25 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
