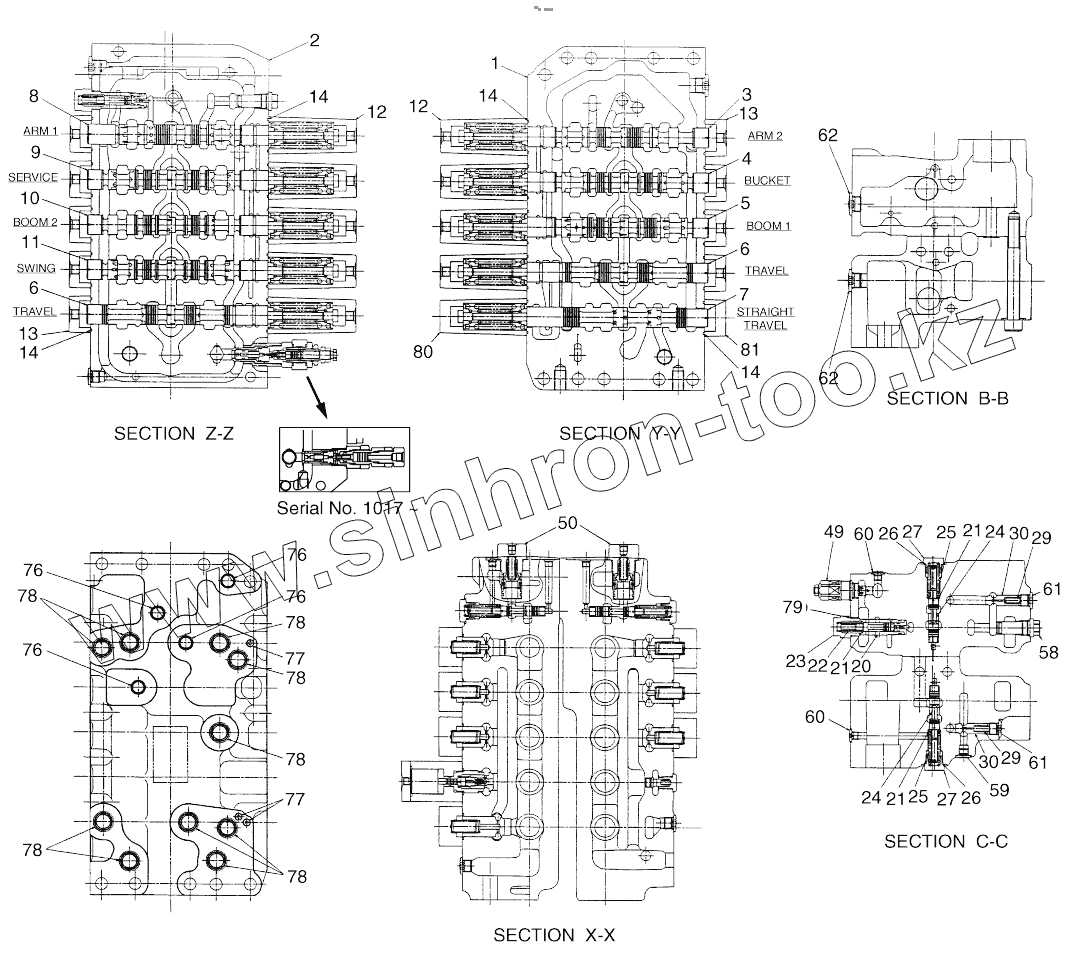

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. CONTROL VALVE (2)
1
2
3
3
4
4
5
5
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
20
20
21
21
21
22
23
24
24
24
24
24
24
25
25
26
26
27
27
29
29
30
30
49
49
50
58
59
60
60
61
61
62
62
76
76
76
76
77
77
78
78
78
78
78
78
79
80
81
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420-00281B | 420-00281B | CONTROL VALVE | |
| 420-00281A | 420-00281A | CONTROL VALVE | |
| 1 | C0151-61003 | HOUSING, VALVE | |
| 2 | C0151-61004 | HOUSING, VALVE | |
| 3 | C011B-50312 | SPOOL KIT | |
| 3 | C017B-71501 | SPOOL KIT | |
| 4 | C011B-50316 | SPOOL KIT-BUCKET | |
| 4 | C017B-71509 | SPOOL KIT-BUCKET | |
| 5 | C011B-50314 | SPOOL KIT-BOOM 1 | |
| 5 | C017B-71510 | SPOOL KIT-BOOM 1 | |
| 6 | C011B-50318 | SPOOL KIT-TRAVEL | |
| 6 | C017B-71511 | SPOOL KIT-TRAVEL | |
| 7 | C011B-50319 | SPOOL KIT | |
| 7 | C017B-71505 | SPOOL KIT | |
| 8 | C011B-50321 | SPOOL KIT-ARM 1 | |
| 8 | C017B-71512 | SPOOL KIT-ARM 1 | |
| 9 | C011B-50326 | SPOOL KIT | |
| 9 | C017B-71513 | SPOOL KIT | |
| 10 | C011B-50323 | SPOOL KIT-BOOM 2 | |
| 10 | C017B-71514 | SPOOL KIT-BOOM 2 | |
| 11 | C011B-50325 | SPOOL KIT-SWING | |
| 11 | C017B-71515 | SPOOL KIT-SWING | |
| 12 | C0001-63001 | CAP | |
| 13 | C0001-63002 | CAP | |
| 14 | 95121-05500 | O-RING | |
| 20 | C011B-50328 | SPOOL KIT | |
| 20 | C017B-71517 | SPOOL KIT | |
| 21 | 21111-30702 | Seat, spring | |
| 22 | T1461-16002 | SPRING | |
| 23 | T1152-33301 | PLUG | |
| 24 | C011B-50327 | SPOOL KIT | |
| 24 | C017B-71518 | SPOOL KIT | |
| 25 | T1461-20005 | SPRING | |
| 26 | 21001-00213 | O-ring | |
| 27 | 21111-55956 | PLUG | |
| 29 | 21111-56512 | SPRING | |
| 30 | T1411-18005 | POPPET | |
| 49 | C011B-40377 | Valve, overload relief | |
| 49 | 21113-40051 | Valve, overload relief | |
| 50 | C0003-60001 | RELIEF VALVE ASSY | |
| 58 | C0003-01209 | PLUG ASSY | |
| 59 | 21003-00383 | Plug assy | |
| 60 | 21003-00382 | Plug assy | |
| 61 | 21003-00384 | PLUG ASSY | |
| 62 | 21003-00385 | PLUG ASSY | |
| 76 | T1515-22001 | O-ring | |
| 77 | T1515-10001 | O-ring | |
| 78 | T1515-30001 | O-RING | |
| 79 | 21001-00182 | O-RING | |
| 80 | C0001-63003 | CAP | |
| 81 | C0001-63005 | CAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
