604-00142
604-00142

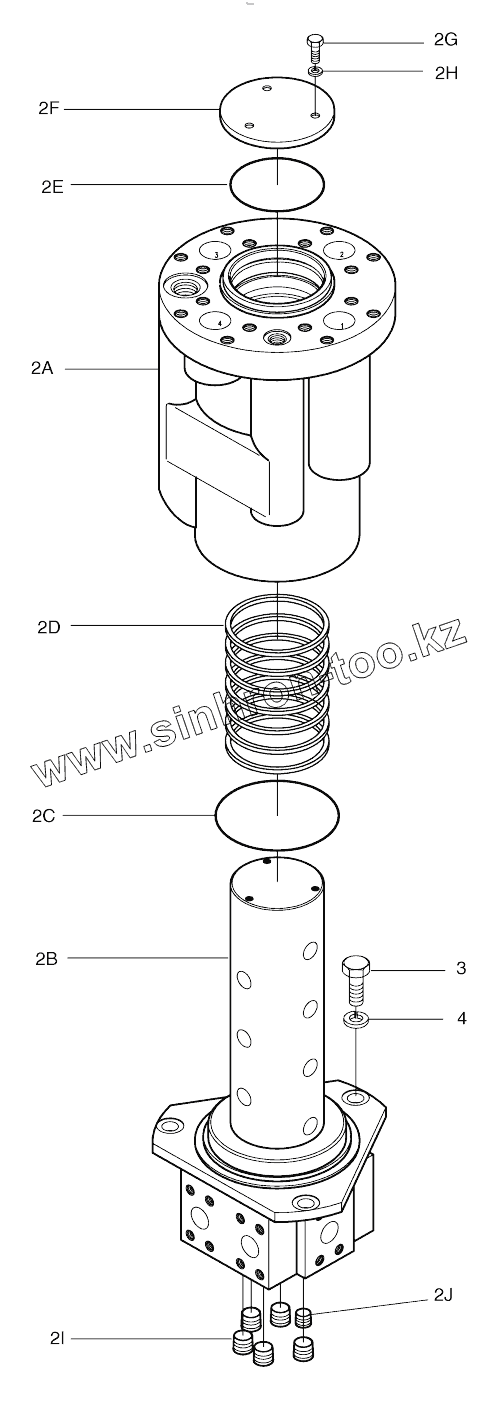

TRACK ASSY
2
2480-9405B
JOINT, CENTER
2A
03C271-2
BODY
2B
03C272-4
SPINDLE
2C
E6301581
O-RING
2D
E5430420
SEAL, SLIPPER
2E
E6490049
O-RING
2F
03C273-1
COVER
2G
E0020335
BOLT
2H
E3110092
WASHER;SPRING
2I
E1500050
PLUG;HEX SOCKET
2J
E1500030
PLUG;HEX.
3
S0521261
BOLT
4
S5102901
WASHER;SPRING
4
S5102903
WASHER;SPRING
2480-9405BKT
2480-9405BKT
SEAL KIT, CENTER JOINT
