Вернуться на главную
Поиск
Каталоги запчастей к технике
Спецтехника
Doosan
SOLAR 420LC-V
CABIN (3)

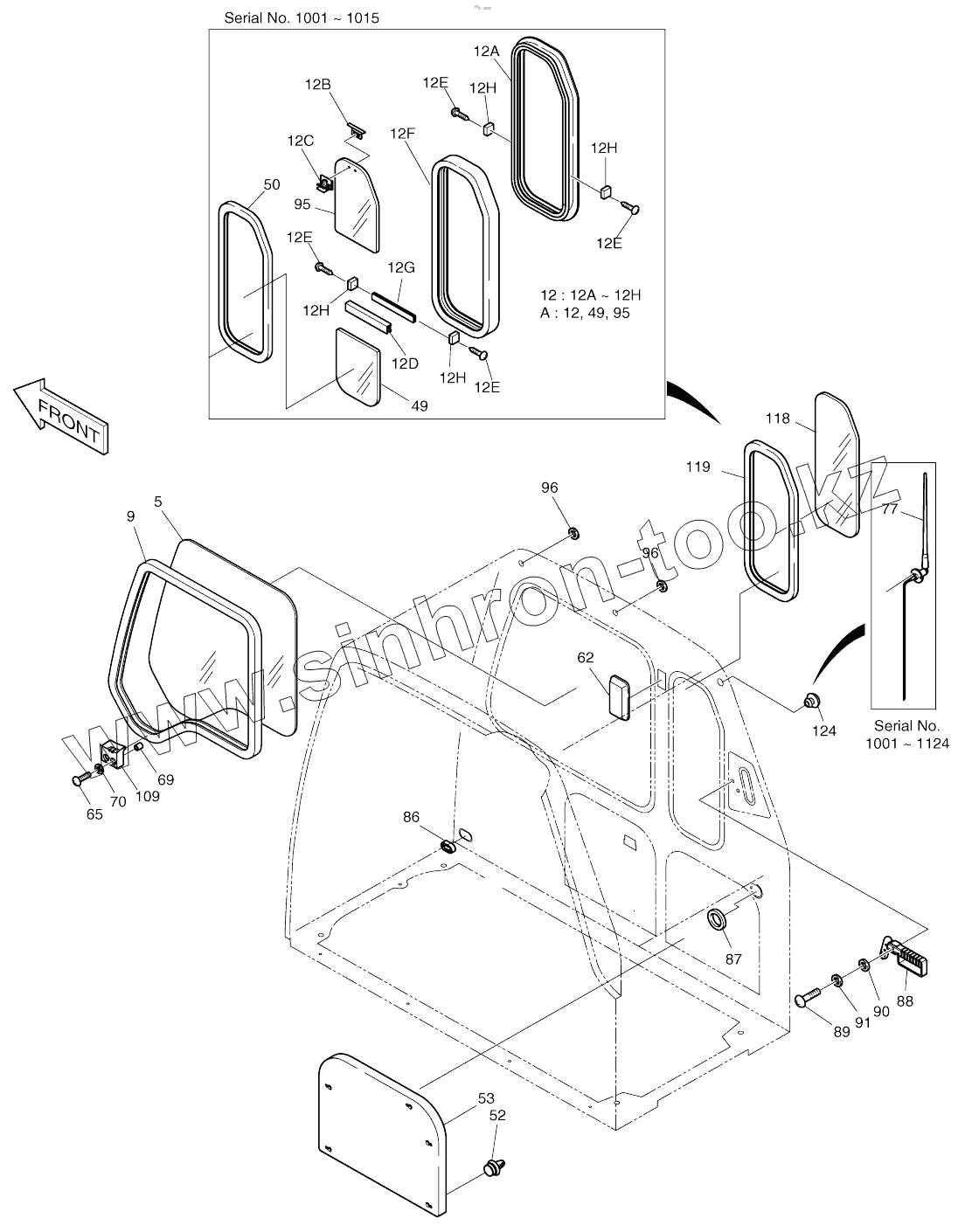

Каталог запасных частей к технике: Doosan SOLAR 420LC-V. CABIN (3)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
DL220 (2010)
DX140W (2017)
DX225LC (2009)
DX225LCA (2012)
S225LC-V (2009)
S340LC-V (2009)
S500LC-V (2007)
SOLAR 130W-V(1) (2017)
SOLAR 130W-V(2) (2017)
SOLAR 140W-V (2017)
SOLAR 140W-V & S160W-V (2017)
SOLAR 160W-V (2017)
SOLAR 170W-V (2017)
SOLAR 180W-V (2017)
SOLAR 210W-V (2017)
SOLAR 255LC-V (DI EXP) (2017)
SOLAR 420LC-V (2017)
Мини-погрузчик 430 Plus (2010)
Мини-погрузчик 440 Plus (2010)
Мини-погрузчик 450 Plus (2010)
Мини-погрузчик 450 Plus (Tier3) (2010)
Мини-погрузчик 460 Plus (2010)
Мини-погрузчик 460 Plus (Tier3) (2010)
Мини-погрузчик 470 Plus (2010)
Экскаватор SOLAR 140LC-V (2010)
Экскаватор SOLAR 175LC-V (2010)
Схема
>
Не выбрано
CYLINDER BLOCK
TIMING GEAR CASE
FLYWHEEL HOUSING
DRIVING SYSTEM
CYLINDER HEAD
CYLINDER HEAD COVER
TIMING SYSTEM
OIL PUMP
OIL FILTER
OIL COOLER
OIL PAN
COOLING WATER PIPE
COOLING WATER PUMP
COOLING FAN
EXHAUST MANIFOLD
INTAKE MANIFOLD
TURBOCHARGER
INJECTION NOZZLE
INJECTION PIPE
INJECTION PUMP
INJECTION PUMP DRIVE
INJECTION PUMP MOUNTING
FUEL PIPE
FUEL FILTER
ALTERNATOR MOUNTING
STARTER
PRESSURE GAUGE
AIR CONDITIONER
ENGINE MOUNTING
OVER HAUL GASKET KIT - TOP
OVER HAUL GASKET KIT - ALL
CYLINDER BLOCK
TIMING GEAR CASE
FLYWHEEL, HOUSING
DRIVING SYSTEM
CYLINDER HEAD
CYLINDER HEAD COVER
TIMING SYSTEM
OIL PUMP
OIL PUMP (120924)
OIL FILTER
OIL COOLER
OIL PAN
COOLING WATER PIPE
WATER PUMP
COOLING FAN
EXHAUST MANIFOLD
INTAKE MANIFOLD
TURBOCHARGER
NOZZLE & HOLDER
INJECTION PIPE
INJECTION PUMP
INJECTION PUMP DRIVE
INJECTION PUMP MOUNTING
FUEL PIPE
FUEL FILTER
ALTERNATOR MOUNTING
STARTER
PRESSURE GAUGE
AIR CONDITIONER
ENGINE MOUNTING
OVER HAUL GASKET KIT - TOP
OVER HAUL GASKET KIT - ALL
MAIN FRAME
ENGINE MOUNTING
RADIATOR (1001 - 10299)
RADIATOR (10300 - )
RESERVE TANK
MUFFLER
CAC PIPING
AIR CLEANER ASSY
AIR CLEANER
PUMP MOUNTING
FUEL PIPING
FUEL TANK
SWING DEVICE ASSY
OIL TANK
OIL COOLER PIPING (1)
OIL COOLER PIPING (2)
OIL COOLER PIPING (3)
MAIN PIPING (1)
MAIN PIPING (2)
MAIN PIPING (3)
MAIN PIPING (4)
MAIN PIPING (5)
ENGINE CONTROL
PILOT PIPING (1)
PILOT PIPING (2)
PILOT PIPING (3)
PILOT PIPING (4)
PILOT PIPING (5)
PILOT PIPING (6)
PILOT PIPING (7)
PILOT PIPING (8)
CONTROL STAND - L.H
CONTROL STAND - R.H
SEAT & ELECTRIC BOX COVER
SEAT MOUNTING - EUROPE & U.S.A
SEAT - EUROPE & U.S.A
SEAT MOUNTING - EXCEPT EUROPE
SEAT - EXCEPT EUROPE & U.S.A (1001 - 1014)
SEAT - EXCEPT EUROPE & U.S.A (1015 - )
DUCT COVER
HEATER COVER
CABIN MOUNT ASSY
CABIN ASSY
CABIN (1)
CABIN (2)
CABIN (3)
CABIN (4)
CABIN (5)
SUPPORT
COVER (1)
COVER (2)
COVER (3)
COVER (4)
COVER (5)
UNDER COVER
BAFFLE
ACOUSTIC FOAM ASSY
LUBRICATION PIPING
ELECTRIC BOX ASSY (1) - BOX
ELECTRIC BOX ASSY (2) - ELECTRIC PARTS
ELECTRIC PARTS (1) - GAUGE & SWITCH PANEL
ELECTRIC PARTS (2) - STAND R.H
ELECTRIC PARTS (3) - STAND L.H
ELECTRIC PARTS (4) - CABIN
ELECTRIC PARTS (5) - BATTERY (1001 - 10365)
ELECTRIC PARTS (5) - BATTERY (10366 - )
ELECTRIC PARTS (6) - ENGINE
ALTERNATOR
ELECTRIC PARTS (7) - RELATED PARTS
ELECTRIC WIRING (1) - BATTERY
ELECTRIC WIRING (2) - ENGINE
ELECTRIC WIRING (3) - RELATED PARTS
AIR CONDITIONER (1)
AIR CONDITIONER (2) - AIRCON UNIT
HEATER PIPING
TRACK FRAME
IDLER
TRACK SPRING
UPPER ROLLER (1001 - 10049)
UPPER ROLLER (10050 -)
LOWER ROLLER (1001 - 10049)
LOWER ROLLER (10050 -)
TRACK SHOE ASSY - 600G (1001 - 10051)
TRACK SHOE ASSY - 600G (10052 - )
CENTER JOINT (1001 - 2285)
CENTER JOINT (2286 - 10621)
CENTER JOINT (10622 - )
TRAVEL PIPING
BOOM 6.7M
ARM 3.25M
BUCKET 1.9m3
BOOM PIPING
ARM PIPING
FRONT LUBRICATION PIPING
MAIN PUMP
MAIN PUMP - PUMP
MAIN PUMP - CONTROL
MAIN PUMP - EPPR VALVE
SWING MOTOR
SWING REDUCTION GEAR (1001 - 1021)
SWING REDUCTION GEAR (1022 - )
TRAVEL MOTOR (1001 - 1051)
TRAVEL MOTOR (1052 - )
TRAVEL REDUCTION GEAR (1001 - 1051)
CONTROL VALVE (1)
CONTROL VALVE (2)
CONTROL VALVE (3)
REMOTE CONTROL VALVE (1001-1404)
REMOTE CONTROL VALVE (1405 - )
REMOTE CONTROL VALVE - 3 SWITCH
PEDAL VALVE
SOLENOID VALVE
PILOT VALVE
BREAKER VALVE
BOOM CYLINDER (R.H)
BOOM CYLINDER (L.H)
ARM CYLINDER
BUCKET CYLINDER
BOOM CYLINDER (R.H) - LOCK VALVE
BOOM CYLINDER (L.H) - LOCK VALVE
ARM CYLINDER - LOCK VALVE
PEDAL VALVE
OPTION VALVE
LOCK VALVE - BOOM
LOCK VALVE - ARM
TOOLS
SPARE PARTS
FUEL FILLER PUMP ASSY
NOISE FILTER ASSY - EUROPE
CABIN LAMP ASSY
6 - LAMP & BEACON (TELESCOPIC)
ROTATING BEACON
TRAVEL ALARM ASSY
TRAVEL/SWING ALARM ASSY
COVER - EUROPE OPT.
ACOUSTIC FOAM - EUROPE OPT.
RETURN FILTER PRESS SWITCH
ALTERNATOR
SUN VISOR ASSY
SUN ROOF ASSY
FLOOR PLATE - TILTING
OVERLOAD WARNING ASSY
JOYSTICK VALVE ASSY - 3 SWITCH
TRACK SHOE - OPT. (1001 - 10041)
TRACK SHOE - OPT. (10042 - )
ARM - 2.6M
ARM - 4.0M
ARM PIPING - 2.6M
ARM PIPING - 4.0m
BUCKET ASSY - 1.44m3
BUCKET ASSY - 1.68m3
BUCKET ASSY - 2.16m3
BUCKET - 1.55M3 (48") - SIDE PIN
BUCKET - 1.41M3 (48") - VERTICAL PIN
BUCKET - 1.80M3 (63") - SIDE PIN
BUCKET - 1.63M3 (54") - VERTICAL PIN
BUCKET - 2.05M3 (60") - SIDE PIN
BUCKET - 1.85M3 (60") - VERTICAL PIN
BUCKET - 2.31M3 (66") - SIDE PIN
BUCKET - 2.07M3 (66") - VERTICAL PIN
LOCK VALVE PIPING
MAIN PIPING - ONE & TWO WAY
PILOT PIPING - BREAKER
BOOM PIPING - ONE & TWO WAY
ARM PIPING - ARM 3.25M (ONE & TWO WAY)
ARM PIPING - ARM 2.6M (ONE & TWO WAY)
ARM PIPING - ARM 4.0M (ONE & TWO WAY)
NAME PLATE - ONE & TWO WAY
ADDITIONAL WORKING LAMP
F.O.G.S GUARD (1018 - )
CABIN LOW GUARD (1038 - )
TROPICAL COVER (1067 - )
BOOM 6.7M - HEAVY DUTY
ARM - 3.25M - HEAVY DUTY
ROCK BUCKET ASSY 1.31M - HEAVY DUTY
BOOM PIPING - BOOM 6.7M - HEAVY DUTY
LUBRICATION PIPING - H.D ARM 3.25M
BOOM - 9.0M
ARM - 5.0M
BUCKET - 1,46
BOOM PIPING - 9.0m
ARM PIPING - ARM 5.0M
LUBRICATION PIPING - BOOM 9.0m
LUBRICATION PIPING - ARM 5.0M
FLOOR PLATE - ARTI.BOOM
FLOOR ASSY - TILT & ARTI.BOOM
MAIN FRAME & COUNTER WEIGHT
UNDER COVER - LONG FRONT
TRACK FRAME
UNDER COVER - HEAVY DUTY
TRACK FRAME - HEAVY DUTY
TRACK SHOE ASSY - 600G - HEAVY DUTY (1001 - 1999)
TRACK SHOE ASSY - 600G - HEAVY DUTY (2000 - 10051)
TRACK SHOE ASSY - 600G - HEAVY DUTY (10052 - )
DOUBLE FUEL FILTER ASSY
CABIN GUARD - HEAVY DUTY
MAIN PIPING - ROTATION & TILTING
BOOM PIPING - ROTATION & TILTING (BOOM 6.7M)
ARM PIPING - ROTATION & TILTING (ARM 3.25M)
ARM PIPING - ROTATION & TILTING (ARM 2.6M)
MAIN PIPING - PE3C
PILOT PIPING - PE3C & PERO
PILOT PIPING - PE3C
PILOT PIPING - PERO
BOOM PIPING - PE3C (BOOM 6.7m)
FOGS GUARD ASSY
TROPICAL PARTS - TIER 2
RADIATOR - TROPICAL
5
9
12A
12B
12C
12D
12E
12E
12E
12E
12F
12G
12H
12H
12H
12H
49
50
52
53
53
62
65
69
70
77
86
87
88
89
90
91
95
96
96
109
118
119
124
Позиция на иллюстрации
Заводской номер детали
Название детали
622-00177B
622-00177B
CABIN ASSY
622-00177E
622-00177E
CABIN ASSY
622-00177G
622-00177G
CABIN ASSY
622-00177H
622-00177H
Cabin assy
622-00177J
622-00177J
CABIN ASS'Y
622-00177K
622-00177K
CABIN ASS'Y
622-00177L
622-00177L
CABIN ASS'Y
622-00177M
622-00177M
CABIN ASS'Y
622-00177N
622-00177N
CABIN ASS'Y
622-00177P
622-00177P
CABIN ASS'Y
622-00177Q
622-00177Q
CABIN ASS'Y
220101-00687
220101-00687
CABIN ASSY
220101-00687A
220101-00687A
CABIN ASSY
220101-00687B
220101-00687B
CABIN ASSY
A
622-00018
Sash assy
5
903-00051
GLASS;FRONT(R.H)
9
198-00034
H-RUBBER 3800L
12
2622-9029
Sash assy
12A
2622-6015
Sash
12B
STOPPER
Stopper
12C
2123-6119
DOOR LOCK
12D
2731-6004
Bar, seal
12E
2622-6011-04
Screw
12F
2161-6062
Run channer
12G
2731-6005
Bar, center
12H
2161-6063
STOPPER;CLASS
49
2903-1218
Glass
50
2161-2228
Finisher, sash
52
2124-1607
TRIM CLIP
53
161-00429
Pad, rear
53
161-00429A
PAD;REAR(R.H)
62
2534-9063
LAMP;ROOM
65
S3450993
SCREW M6X1.0X25
69
2140-1338
PIPE;SPACER
70
2114-1058D52
WASHER
77
541-00005
ANTENNA
86
2110-1347
BUSH 135L
87
2110-1349
BUSH;RUBBER
88
2199-9058
HAMMER
89
S3458582
SCREW M4X0.7X12
90
S5000111
WASHER;PLAIN M4
91
S5102101
WASHER;SPRING M4
95
2903-1242
Glass
96
2160-1310
BUSHING;RUBBER
109
161-00449
STOPPER
118
903-00060
GLASS;R.H
119
198-00044
RUBBER;H
124
160-00083
BUSHING;RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
