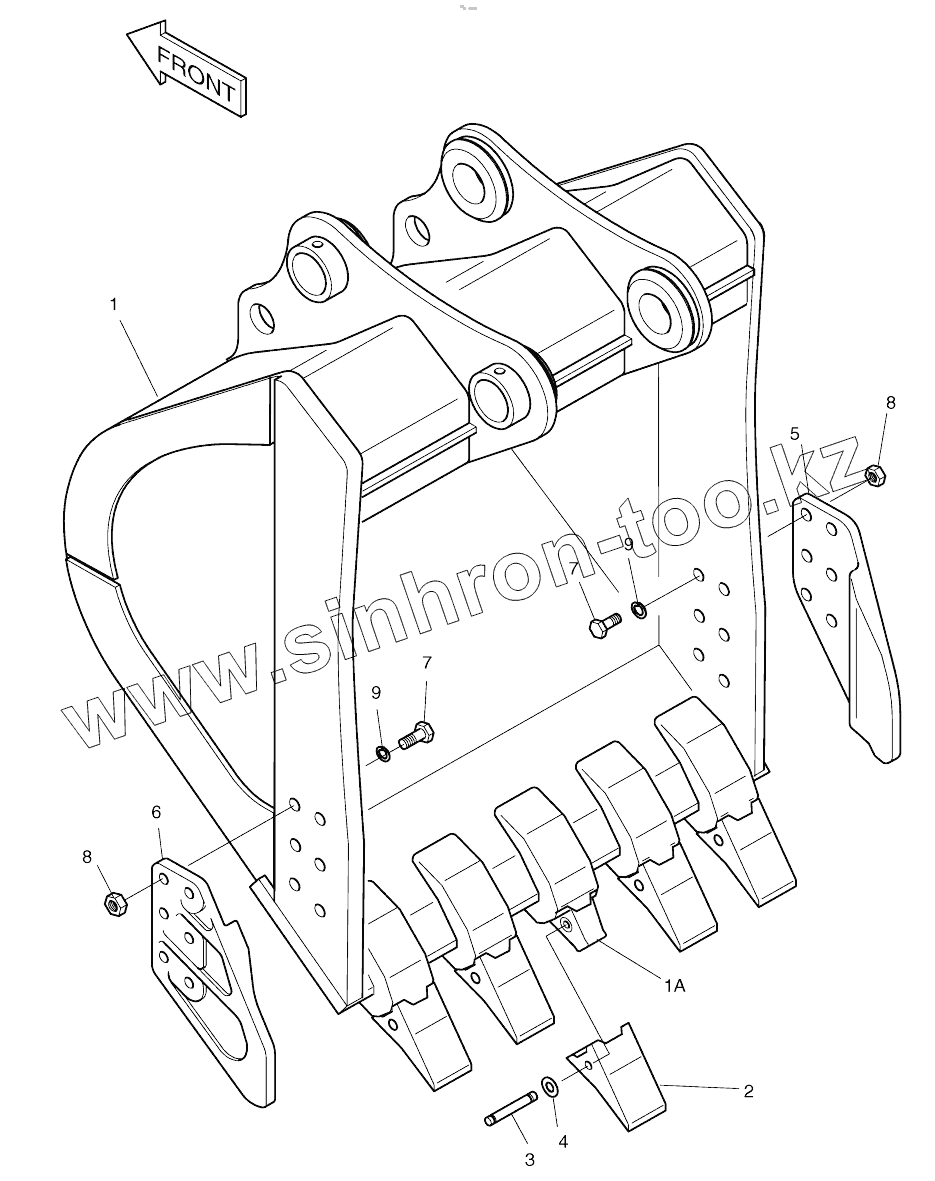

Позиция на иллюстрации
Заводской номер детали
Название детали
704-00003A
704-00003A
BUCKET ASSY
230104-01690
230104-01690
BUCKET SUB ASSY
1
BUCKET
Bucket
1A
2713-1273
ADAPTER, TOOTH
2
2713-1236
POINT, TOOTH
3
2705-1034
PIN,LOCKING
4
2114-1931
WASHER,LOCKING
5
2713-1240
CUTTER, SIDE
6
2713-1241
CUTTER, SIDE
7
S0574961
Bolt
8
S4013333
NUT M24
9
2114-1831
WASHER;HARDEN
