Каталог запасных частей к технике: Doosan SOLAR 420LC-V. ARM - 4.0M
1
1
1
1
1
1B
1B
1B
1B
1C
1C
1C
1C
1D
1D
2
2
2B
2C
2C
2C
2C
2C
2C
2C
2C
3
4
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
10
11
11
12
12
12
12
12
12
12
12
12
12
13
13
14
14
15
15
16
16
17
17
18
18
20
20
20
20
21
22
22
22
23
23
23
23
23
23
23
23
24
24
25
25
25
25
25
25
25
25
25
25
26
26
26
26
26
26
26
28
28
28
28
29
29
30
30
30
30
30
30
30
30

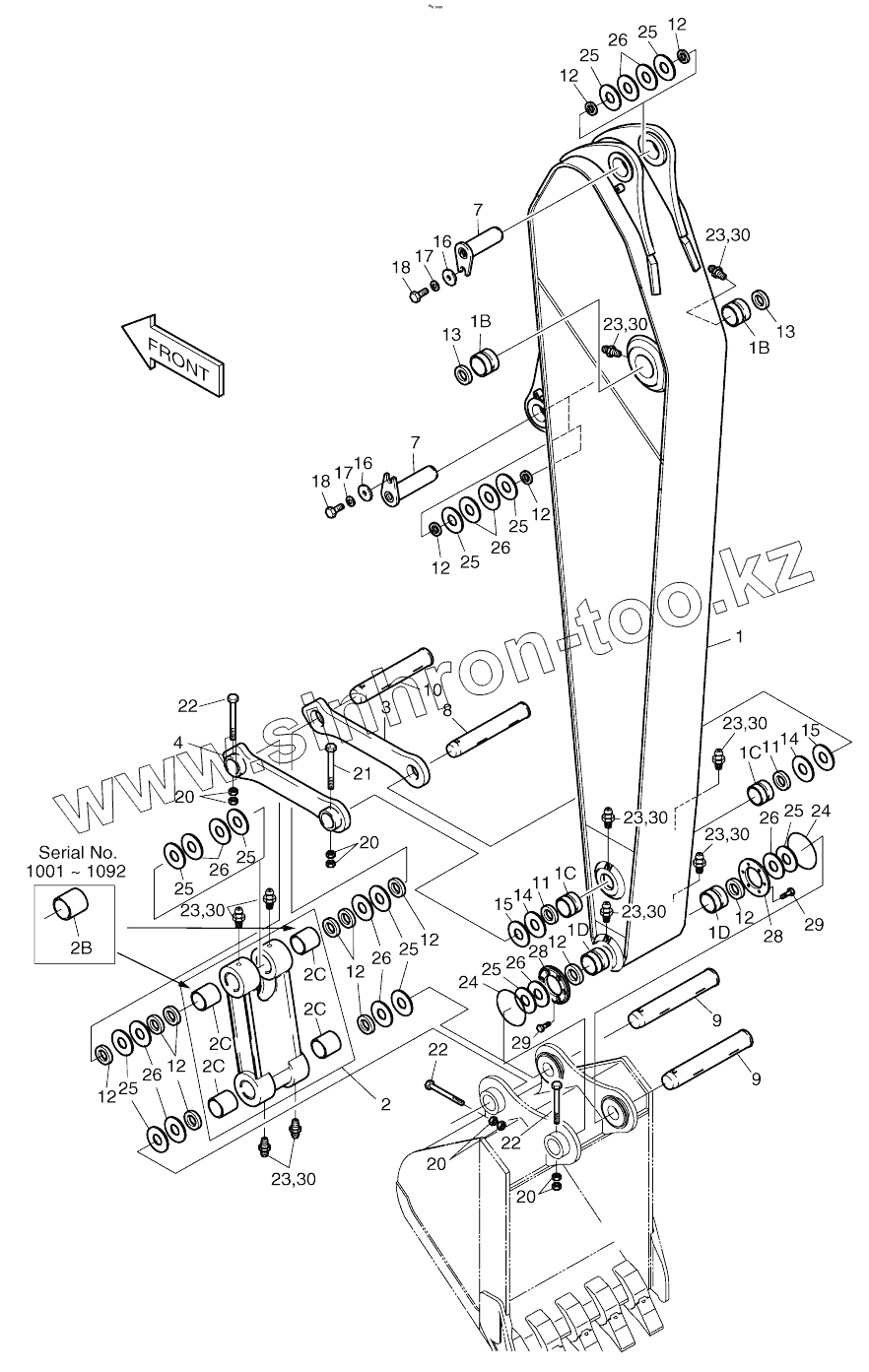

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2701-1712A | 2701-1712A | ARM ASSY | |
| 230201-00437 | 230201-00437 | ARM ASSY | |
| 230201-00437A | 230201-00437A | ARM ASSY | |
| 1 | 2701-1713G | ARM SUB ASSY | |
| 1 | 2701-1713H | ARM SUB ASSY | |
| 1 | 2701-1713J | ARM SUB ASSY | |
| 1 | 2701-1713K | ARM SUB ASSY | |
| 1 | 230204-00192 | ARM | |
| 1B | 110-00182 | BUSHING | |
| 1B | K1000746 | BUSH | |
| 1C | 110-00171 | BUSHING | |
| 1C | 2110-1378A | BUSHING | |
| 1D | 110-00204 | BUSHING | |
| 2 | 2155-1359C | PUSH LINK ASSY | |
| 2 | 2155-1359E | PUSH LINK ASSY | |
| 2B | 110-00183 | BUSHING | |
| 2C | 2110-1375 | BUSHING | |
| 2C | 2110-1375 | BUSHING | |
| 3 | 2155-1360 | LINK, GUIDE | |
| 4 | 2155-1361 | LINK, GUIDE | |
| 7 | 2123-2060A | PIN | |
| 7 | 120501-01108 | PIN, ARM CYL.HEAD | |
| 8 | 2123-2380A | PIN | |
| 8 | 120501-01104 | PIN, ARM TO GUIDE LINK | |
| 9 | 2123-2381A | PIN | |
| 9 | 120501-01105 | PIN | |
| 10 | 2123-2382A | PIN | |
| 10 | 120501-01106 | PIN, BUCKET CYL. ROD | |
| 11 | 2180-1106BD14 | SEAL;DUST | |
| 12 | 2180-1106BD15 | SEAL, DUST | |
| 13 | 2180-1106BD18 | SEAL, DUST | |
| 14 | 2114-1059D73 | Shim | |
| 15 | 2114-1059D72 | Shim | |
| 16 | 2116-1060D5 | STOPPER | |
| 17 | S5102903 | WASHER;SPRING | |
| 18 | S0521366 | BOLT M16X2.0X35 | |
| 20 | S4013133 | Nut | |
| 21 | S0571966 | BOLT | |
| 22 | S0572066 | BOLT | |
| 23 | S6710041 | NIPPLE;GREASE | |
| 24 | 180-00077D8 | O-RING | |
| 25 | 2114-1058D41 | SHIM | |
| 26 | 2114-1058D40 | SHIM | |
| 28 | 114-00436 | SPACER | |
| 28 | 114-00436A | SPACER | |
| 29 | 120-00223 | BOLT | |
| 30 | 160-00020 | CAP;GREASE NIPPLE |
