Каталог запасных частей к технике: Doosan SOLAR 420LC-V. AIR CLEANER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER OIL COOLER OIL PAN COOLING WATER PIPE COOLING WATER PUMP COOLING FAN EXHAUST MANIFOLD INTAKE MANIFOLD TURBOCHARGER INJECTION NOZZLE INJECTION PIPE INJECTION PUMP INJECTION PUMP DRIVE INJECTION PUMP MOUNTING FUEL PIPE FUEL FILTER ALTERNATOR MOUNTING STARTER PRESSURE GAUGE AIR CONDITIONER ENGINE MOUNTING OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL, HOUSING DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL PUMP (120924) OIL FILTER OIL COOLER OIL PAN COOLING WATER PIPE WATER PUMP COOLING FAN EXHAUST MANIFOLD INTAKE MANIFOLD TURBOCHARGER NOZZLE & HOLDER INJECTION PIPE INJECTION PUMP INJECTION PUMP DRIVE INJECTION PUMP MOUNTING FUEL PIPE FUEL FILTER ALTERNATOR MOUNTING STARTER PRESSURE GAUGE AIR CONDITIONER ENGINE MOUNTING OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME ENGINE MOUNTING RADIATOR (1001 - 10299) RADIATOR (10300 - ) RESERVE TANK MUFFLER CAC PIPING AIR CLEANER ASSY AIR CLEANER PUMP MOUNTING FUEL PIPING FUEL TANK SWING DEVICE ASSY OIL TANK OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) ENGINE CONTROL PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) CONTROL STAND - L.H CONTROL STAND - R.H SEAT & ELECTRIC BOX COVER SEAT MOUNTING - EUROPE & U.S.A SEAT - EUROPE & U.S.A SEAT MOUNTING - EXCEPT EUROPE SEAT - EXCEPT EUROPE & U.S.A (1001 - 1014) SEAT - EXCEPT EUROPE & U.S.A (1015 - ) DUCT COVER HEATER COVER CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) UNDER COVER BAFFLE ACOUSTIC FOAM ASSY LUBRICATION PIPING ELECTRIC BOX ASSY (1) - BOX ELECTRIC BOX ASSY (2) - ELECTRIC PARTS ELECTRIC PARTS (1) - GAUGE & SWITCH PANEL ELECTRIC PARTS (2) - STAND R.H ELECTRIC PARTS (3) - STAND L.H ELECTRIC PARTS (4) - CABIN ELECTRIC PARTS (5) - BATTERY (1001 - 10365) ELECTRIC PARTS (5) - BATTERY (10366 - ) ELECTRIC PARTS (6) - ENGINE ALTERNATOR ELECTRIC PARTS (7) - RELATED PARTS ELECTRIC WIRING (1) - BATTERY ELECTRIC WIRING (2) - ENGINE ELECTRIC WIRING (3) - RELATED PARTS AIR CONDITIONER (1) AIR CONDITIONER (2) - AIRCON UNIT HEATER PIPING TRACK FRAME IDLER TRACK SPRING UPPER ROLLER (1001 - 10049) UPPER ROLLER (10050 -) LOWER ROLLER (1001 - 10049) LOWER ROLLER (10050 -) TRACK SHOE ASSY - 600G (1001 - 10051) TRACK SHOE ASSY - 600G (10052 - ) CENTER JOINT (1001 - 2285) CENTER JOINT (2286 - 10621) CENTER JOINT (10622 - ) TRAVEL PIPING BOOM 6.7M ARM 3.25M BUCKET 1.9m3 BOOM PIPING ARM PIPING FRONT LUBRICATION PIPING MAIN PUMP MAIN PUMP - PUMP MAIN PUMP - CONTROL MAIN PUMP - EPPR VALVE SWING MOTOR SWING REDUCTION GEAR (1001 - 1021) SWING REDUCTION GEAR (1022 - ) TRAVEL MOTOR (1001 - 1051) TRAVEL MOTOR (1052 - ) TRAVEL REDUCTION GEAR (1001 - 1051) CONTROL VALVE (1) CONTROL VALVE (2) CONTROL VALVE (3) REMOTE CONTROL VALVE (1001-1404) REMOTE CONTROL VALVE (1405 - ) REMOTE CONTROL VALVE - 3 SWITCH PEDAL VALVE SOLENOID VALVE PILOT VALVE BREAKER VALVE BOOM CYLINDER (R.H) BOOM CYLINDER (L.H) ARM CYLINDER BUCKET CYLINDER BOOM CYLINDER (R.H) - LOCK VALVE BOOM CYLINDER (L.H) - LOCK VALVE ARM CYLINDER - LOCK VALVE PEDAL VALVE OPTION VALVE LOCK VALVE - BOOM LOCK VALVE - ARM TOOLS SPARE PARTS FUEL FILLER PUMP ASSY NOISE FILTER ASSY - EUROPE CABIN LAMP ASSY 6 - LAMP & BEACON (TELESCOPIC) ROTATING BEACON TRAVEL ALARM ASSY TRAVEL/SWING ALARM ASSY COVER - EUROPE OPT. ACOUSTIC FOAM - EUROPE OPT. RETURN FILTER PRESS SWITCH ALTERNATOR SUN VISOR ASSY SUN ROOF ASSY FLOOR PLATE - TILTING OVERLOAD WARNING ASSY JOYSTICK VALVE ASSY - 3 SWITCH TRACK SHOE - OPT. (1001 - 10041) TRACK SHOE - OPT. (10042 - ) ARM - 2.6M ARM - 4.0M ARM PIPING - 2.6M ARM PIPING - 4.0m BUCKET ASSY - 1.44m3 BUCKET ASSY - 1.68m3 BUCKET ASSY - 2.16m3 BUCKET - 1.55M3 (48") - SIDE PIN BUCKET - 1.41M3 (48") - VERTICAL PIN BUCKET - 1.80M3 (63") - SIDE PIN BUCKET - 1.63M3 (54") - VERTICAL PIN BUCKET - 2.05M3 (60") - SIDE PIN BUCKET - 1.85M3 (60") - VERTICAL PIN BUCKET - 2.31M3 (66") - SIDE PIN BUCKET - 2.07M3 (66") - VERTICAL PIN LOCK VALVE PIPING MAIN PIPING - ONE & TWO WAY PILOT PIPING - BREAKER BOOM PIPING - ONE & TWO WAY ARM PIPING - ARM 3.25M (ONE & TWO WAY) ARM PIPING - ARM 2.6M (ONE & TWO WAY) ARM PIPING - ARM 4.0M (ONE & TWO WAY) NAME PLATE - ONE & TWO WAY ADDITIONAL WORKING LAMP F.O.G.S GUARD (1018 - ) CABIN LOW GUARD (1038 - ) TROPICAL COVER (1067 - ) BOOM 6.7M - HEAVY DUTY ARM - 3.25M - HEAVY DUTY ROCK BUCKET ASSY 1.31M - HEAVY DUTY BOOM PIPING - BOOM 6.7M - HEAVY DUTY LUBRICATION PIPING - H.D ARM 3.25M BOOM - 9.0M ARM - 5.0M BUCKET - 1,46 BOOM PIPING - 9.0m ARM PIPING - ARM 5.0M LUBRICATION PIPING - BOOM 9.0m LUBRICATION PIPING - ARM 5.0M FLOOR PLATE - ARTI.BOOM FLOOR ASSY - TILT & ARTI.BOOM MAIN FRAME & COUNTER WEIGHT UNDER COVER - LONG FRONT TRACK FRAME UNDER COVER - HEAVY DUTY TRACK FRAME - HEAVY DUTY TRACK SHOE ASSY - 600G - HEAVY DUTY (1001 - 1999) TRACK SHOE ASSY - 600G - HEAVY DUTY (2000 - 10051) TRACK SHOE ASSY - 600G - HEAVY DUTY (10052 - ) DOUBLE FUEL FILTER ASSY CABIN GUARD - HEAVY DUTY MAIN PIPING - ROTATION & TILTING BOOM PIPING - ROTATION & TILTING (BOOM 6.7M) ARM PIPING - ROTATION & TILTING (ARM 3.25M) ARM PIPING - ROTATION & TILTING (ARM 2.6M) MAIN PIPING - PE3C PILOT PIPING - PE3C & PERO PILOT PIPING - PE3C PILOT PIPING - PERO BOOM PIPING - PE3C (BOOM 6.7m) FOGS GUARD ASSY TROPICAL PARTS - TIER 2 RADIATOR - TROPICAL

1

2

3

4

5

6

7

7

8

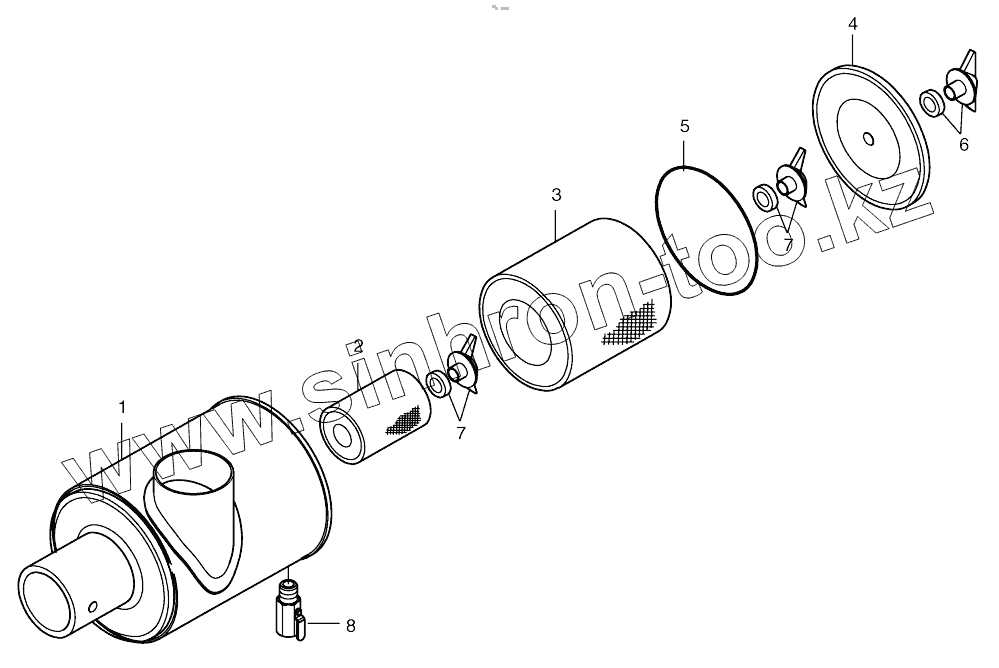

Позиция на иллюстрации	Заводской номер детали		Название детали
2204-2012A	2204-2012A		Air cleaner
1	BODY		Body
2	2474-9057		Element, inner
3	2474-9051		Element, outer
4	2621-6012		Cover, front
5	2180-6085		Packing
6	121-00041		Nut, wing
7	121-00078		Nut, wing
8	2422-6021		VALVE;VACUATOR

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
