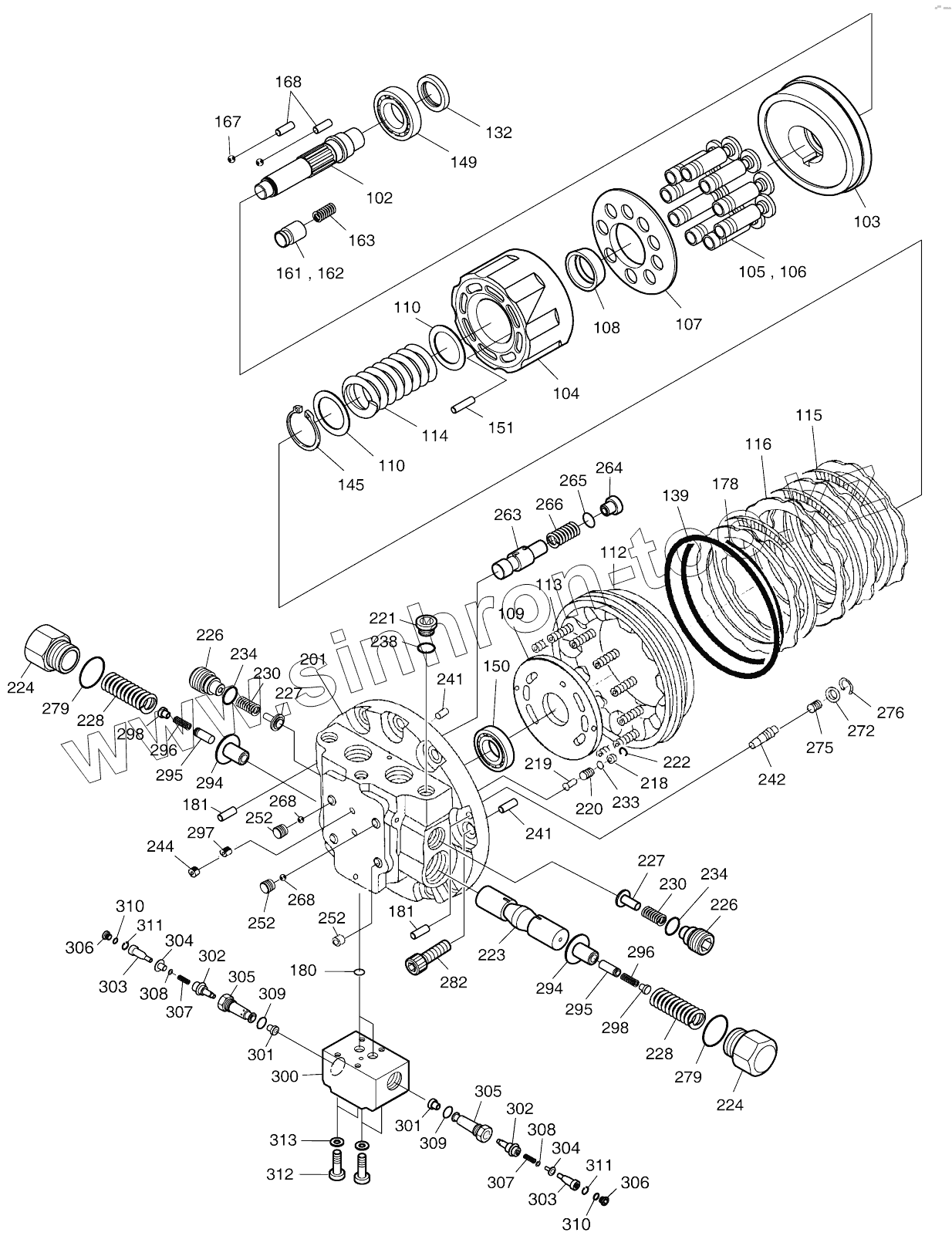

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). TRAVEL MOTOR
102
103
104
105
106
107
108
109
110
110
112
113
114
115
116
132
139
145
149
150
151
161
162
163
167
168
178
180
181
181
201
218
219
220
221
222
223
223
224
224
226
226
227
227
228
228
230
230
234
234
238
241
241
242
244
252
252
252
263
264
265
266
268
268
272
275
276
279
279
282
294
294
295
295
296
296
297
298
298
300
301
301
302
302
303
303
304
304
305
305
306
306
307
307
308
308
309
309
310
310
311
311
312
313
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| K1003939A | K1003939A | Travel device | |
| 130401-00014B | 130401-00014B | Box, travel gear | |
| 102 | 1.405-00022 | Shaft, main | |
| 103 | K9001055 | Plate, swash | |
| 104 | 1.441-00292 | Block, cyl'd | |
| 105 | 1.409-00232 | Piston | |
| 106 | 1.355-00011 | Shoe | |
| 107 | 1.412-00093 | Plate, retainer | |
| 108 | 1.148-00016 | Ball, thrust | |
| 109 | 1.412-00203 | Plate, timing | |
| 110 | 1.114-00305 | Washer | |
| 112 | K9005002 | Piston, parking | |
| 113 | 1.131-00055 | Spring, p/piston | |
| 114 | 1.129-00019 | Spring, for cyl'd | |
| 115 | 1.412-00061 | Plate, friction | |
| 116 | 1.412-00072 | Plate, mating | |
| 132 | 1.180-00631 | Seal, oil | |
| 139 | S8002101 | O-ring | |
| 145 | S6510700 | Ring, snap | |
| 149 | 1.109-00147 | Bearing, ball | |
| 150 | 1.109-00026 | Bearing, ball | |
| 151 | 1.109-00135 | Roller | |
| 161 | 1.409-00116 | Piston | |
| 162 | 1.355-00012 | Shoe | |
| 163 | 1.131-00042 | Spring | |
| 167 | 1.540-00006 | Pivot | |
| 168 | 1.123-00053 | Pin, parallel | |
| 178 | S8011951 | O-ring | |
| 180 | S8000201 | O-RING | |
| 181 | S5701242 | Pin | |
| 201 | K9001040 | Flange, rear | |
| 218 | 1.427-00029 | Valve, seat t-type | |
| 219 | 1.420-00009 | Valve, t-type | |
| 220 | 1.131-00041 | Spring, t-type | |
| 221 | 2181-1890D4 | Plug | |
| 222 | 1.115-00139 | Ring, t-type | |
| 223 | 1.424-00062 | Spool, main | |
| 224 | 1.181-00059 | Plug, for main | |
| 226 | 1.181-00067 | Plug, check | |
| 227 | 1.420-00013 | Valve, check | |
| 228 | 1.131-00058 | Spring, for main | |
| 230 | 1.129-00006 | Spring, check | |
| 233 | S8000091 | O-RING | |
| 234 | S8002731 | O-ring | |
| 238 | S8000181 | O-RING | |
| 241 | S5700891 | Pin, parallel | |
| 242 | 1.420-00014 | Valve, reducing | |
| 244 | 2181-1116D1 | Plug | |
| 252 | 2181-1116D2 | PLUG | |
| 263 | 422-00031 | Valve, two speed | |
| 264 | K9001047 | Plug | |
| 265 | S8000111 | O-RING | |
| 266 | 1.131-00099 | Spring, two speed | |
| 268 | S6250161 | Ball, steel | |
| 272 | 1.427-00031 | Seat, valve reducing | |
| 275 | 1.131-00062 | Spring, reducing v/v | |
| 276 | 1.115-00141 | Ring, reducing | |
| 279 | S8000321 | O-ring | |
| 282 | S2221471 | Bolt, socket | |
| 294 | K9001042 | Stopper(a) | |
| 295 | 1.424-00063 | Spool, main | |
| 296 | K9001045 | Spring | |
| 297 | 1.415-00005 | Orifice | |
| 298 | K9007381 | Stopper b | |
| 300 | 1.441-00294 | Block, valve | |
| 301 | 1.429-00037 | Seat | |
| 302 | 1.424-00064 | Plunger | |
| 303 | 1.424-00065 | Rod | |
| 304 | 1.409-00233 | Piston | |
| 305 | 1.441-00295 | Body | |
| 306 | 1.181-00154 | Plug | |
| 307 | 1.129-00020 | Spring | |
| 308 | 1.114-00543 | Shim | |
| 309 | S8000181 | O-RING | |
| 310 | S8000181 | O-RING | |
| 311 | S8060181 | Ring, backup | |
| 312 | S2209661 | Bolt | |
| 313 | S5110501 | Washer, spring | |
| M | K9001050 | Motor part | |
| M1 | 1.441-00291 | Kit, cyl'd block and piston | |
| M2 | K9005000 | Piston assy | |
| M11 | 1.409-00231 | Piston assy | |
| R | 1.441-00293 | Kit, relief v/v block | |
| RL | K9001038 | Rear flange assy | |
| RL1 | K9001039 | Kit, rear flange | |
| RL2 | 1.416-00026 | Stopper assy | |
| R1 | 1.426-00024 | Relief valve assy | |
| 2401-9082K | 2401-9082K | Seal kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
