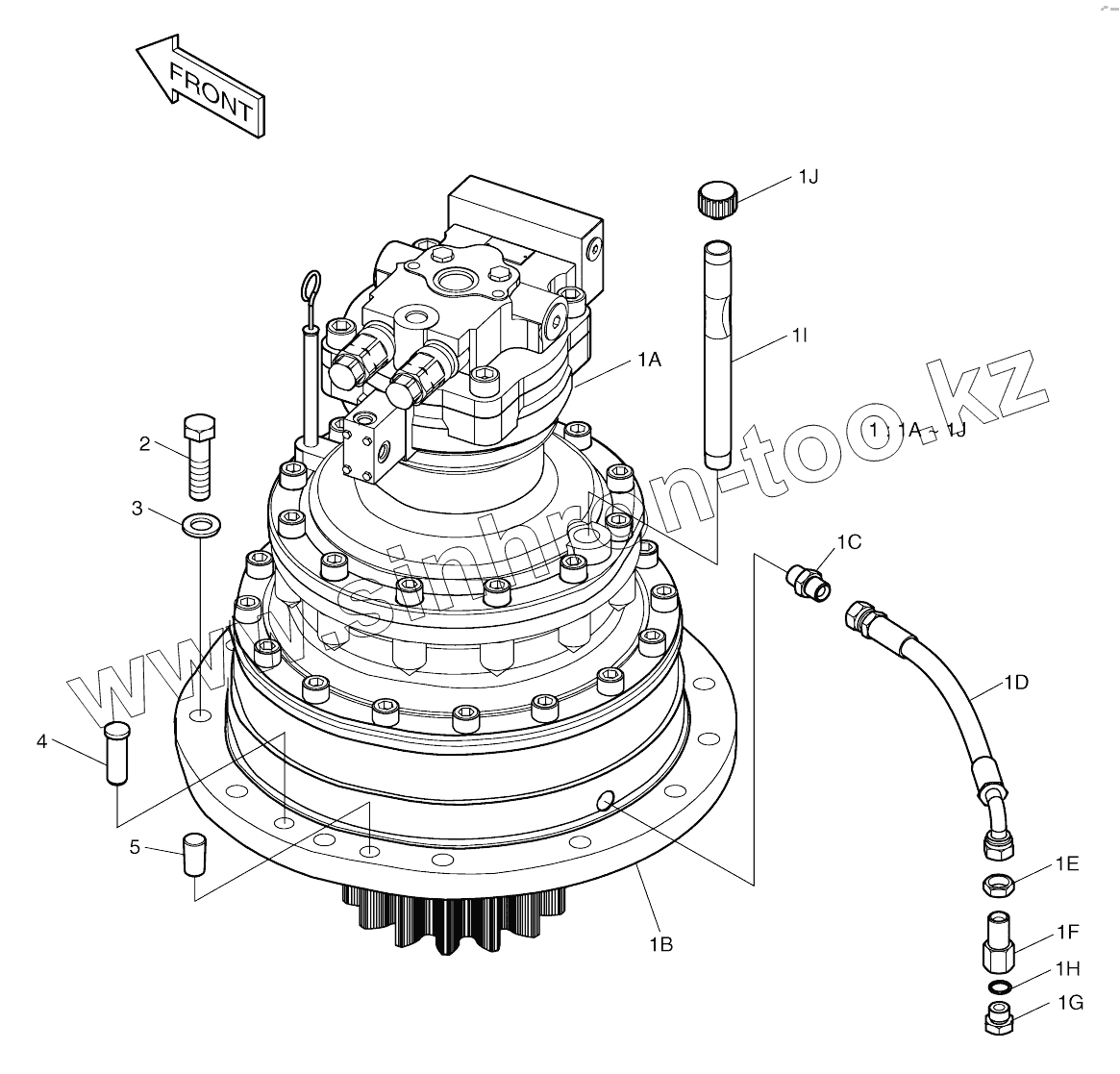

1
1
1A
1A
1B
1B
1C
1D
1E
1F
1G
1H
1I
1J
1J
2
3
4
5
Позиция на иллюстрации
Заводской номер детали
Название детали
401-00317A
401-00317A
Swing device installation
1
401-00316A
Swing device assy
1
401-00316B
Swing device assy
1A
401-00352
Motor, swing
1B
2101-1025I
Gear, reduction
1B
2101-1025K
Gear, reduction
1C
2181-1110D3
ADAPTER
1D
2184-1036D232
Hose
1E
121-00010D3
NUT
1F
181-00698
REDUCER
1G
2181-1950D3
PLUG
1H
S8000181
O-RING
1I
2182-1662
PIPE
1J
2119-1063A
CAP;PIPE
2
S0570466
Bolt
3
2114-9012A
WASHER;HARD
4
2123-1458
PIN;LOCK
5
160-00027
CAP;RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
