Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). SOLENOID VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME ENGINE MOUNTING RADIATOR (1001 - 2210) RADIATOR (2211 - ) RESERVE TANK MUFFLER CAC PIPING AIR CLEANER ASSY AIR CLEANER PUMP MOUNTING FUEL PIPING FUEL TANK SWING DEVICE ASSY OIL TANK OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) ENGINE CONTROL ASSY PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) CONTROL STAND - L.H CONTROL STAND - R.H SEAT AND ELECTRIC BOX SEAT MOUNTING SEAT SEAT MOUNTING SEAT DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT (1) SUPPORT (2) COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ACOUSTIC FOAM UNDER COVER LUBRICATION PIPING ELECTRIC BOX ASSY (1) ELECTRIC BOX ASSY (2) ELECTRIC PARTS (1) - GAUGE ELECTRIC PARTS (2) - STAND R.H. ELECTRIC PARTS (3) - STAND L.H. ELECTRIC PARTS (4) - CABIN ELECTRIC PARTS (5) - BATTERY ELECTRIC PARTS (6) - ENGINE ELECTRIC PARTS (7) - RELATED ELECTRIC WIRING (1) - BATTERY ELECTRIC WIRING (2) - ENGINE ELECTRIC WIRING (3) - RELATED AIRCONDITIONER (1) AIRCONDITIONER (2) - AIRCON HEATER PIPING TRACK FRAME TRAVEL DEVICE IDLER TRACK SPRING UPPER ROLLER LOWER ROLLER CENTER JOINT (1001 - 2066) CENTER JOINT (2067 - ) TRACK SHOE ASSY - 600G TRAVEL PIPING COVER TRAVEL PIPING BOOM - 5.9m ARM - 3.0m BUCKET - 1.10M3 BOOM PIPING ARM PIPING FRONT LUBRICATION PIPING MAIN PUMP (1001 - 2164) REGULATOR GEAR PUMP PTO ASSY SWING MOTOR SWING REDUCTION GEAR TRAVEL MOTOR TRAVEL REDUCTION GEAR CONTROL VALVE (1) CONTROL VALVE (2) CONTROL VALVE (3) REMOTE CONTROL VALVE (1001 - ) REMOTE CONTROL VALVE (1388 - ) REMOTE CONTROL VALVE - 3 PEDAL VALVE SOLENOID VALVE PILOT VALVE BREAKER VALVE BOOM CYLINDER (LH) BOOM CYLINDER (RH) ARM CYLINDER BUCKET CYLINDER BOOM CYLINDER(L.H) - LOCK BOOM CYLINDER(R.H) - LOCK ARM CYLINDER - LOCK VALVE OPTION VALVE (1001 - 1226) OPTION VALVE (1227 - ) PEDAL VALVE TRAVEL REDUCTION GEAR TRAVEL MOTOR TOOLS SPARE PARTS CABIN NAME PLATE - EUROPE NAME PLATE - EUROPE CABIN NAME PLATE - ENGLISH NAME PLATE - ENGLISH FUEL FILLER PUMP ASSY DOUBLE FUEL FILTER ASSY NOISE FILTER ASSY - EUROPE CABIN LAMP ASSY 6 - LAMP AND BEACON (TELESCOPIC) ROTATING BEACON TRAVEL/SWING ALARM ASSY TRAVEL ALARM ASSY RETURN FILTER PRESS SWITCH ALTERNATOR OVERLOAD WARNING ASSY FLOOR PLATE - TILTING SUN VISOR ASSY SUN ROOF ASSY TRACK - NARROW (2.99M) TRACK SHOE - 700G TRACK SHOE - 800G TRACK SHOE - 900G SEALED TRACK SHOE - 600G BOOM - 5.3M ARM - 2.0m ARM - 2.5m ARM - 3.5m BOOM PIPING - 5.3M ARM PIPING - 2.0m ARM PIPING - 2.5m ARM PIPING - 3.5m FRONT LUBRICATION PIPING BUCKET - 0.50m3 BUCKET - 0.81m3 BUCKET - 0.93m3 BUCKET - 1.05m3 BUCKET - 1.17m3 BUCKET - 1.18m3 BUCKET - 0.73M3 (36") - SIDE PIN BUCKET - 0.673M3 (36") - VERTICAL PIN BUCKET - 0.90M3 (42") - SIDE PIN BUCKET - 0.80M3 (42") - VERTICAL PIN BUCKET - 1.07M3 (48") - SIDE PIN BUCKET - 0.95M3 (48") - VERTICAL PIN BUCKET - 1.24m3 (54") - SIDE PIN BUCKET - 1.24m3 (54") - VERTICAL BUCKET - 1.32m3 (57") - SIDE PIN BUCKET - 1.173m3 (57") - VERTICAL PIN BUCKET - 1.49M3(63") - SIDE PIN BUCKET - 1.31m3 (63") - VERTICAL PIN BREAKER PIPING PILOT PIPING - BREAKER BOOM PIPING - 5.9m BOOM (ONE) BOOM PIPING - 5.3m BOOM (ONE) ARM PIPING - ARM 2.0M (ONE AND TWO WAY) (1001-1030) ARM PIPING - ARM 2.0M (ONE AND TWO WAY) (1031-) ARM PIPING - ARM 2.5M (ONE AND TWO WAY) (1001-1030) ARM PIPING - ARM 2.5M (ONE AND TWO WAY) (1031-) ARM PIPING - ARM 3.0M (ONE AND TWO WAY) (1001-1030) ARM PIPING - ARM 3.0M (ONE AND TWO WAY) (1031-) ARM PIPING - ARM 3.5M (ONE AND TWO WAY) (1001-1030) ARM PIPING - ARM 3.5M (ONE AND TWO WAY) (1031-) NAME PLATE - ONE and TWO WAY LOCK VALVE PIPING - 5.9M PILOT PIPING and ROTATING MAIN PIPING - ROTATING BOOM PIPING - ROTATING ARM PIPING ROTATION JOYSTICK VALVE ASSY 3 - SWITCH CABIN LOW GUARD F.O.G.S ASSY (1012 - ) SEALED TRACK SHOE - 700G (1012 - ) SEALED TRACK SHOE - 800G (1012 - ) SEALED TRACK SHOE - 900G (1012 - ) TROPICAL COVER (1072 - ) FLOOR PLATE - ARTI.BOOM FLOOR ASSY - TILT AND ARTI.BOOM BOOM PIPING - BOOM 5.9m(PE3C) MAIN PIPING - PE3C PILOT PIPING - PE3C AND PERO PILOT PIPING - PE3C PILOT PIPING - PERO ACOUSTIC FOAM

1

2

3

3

3A

3A

4

5

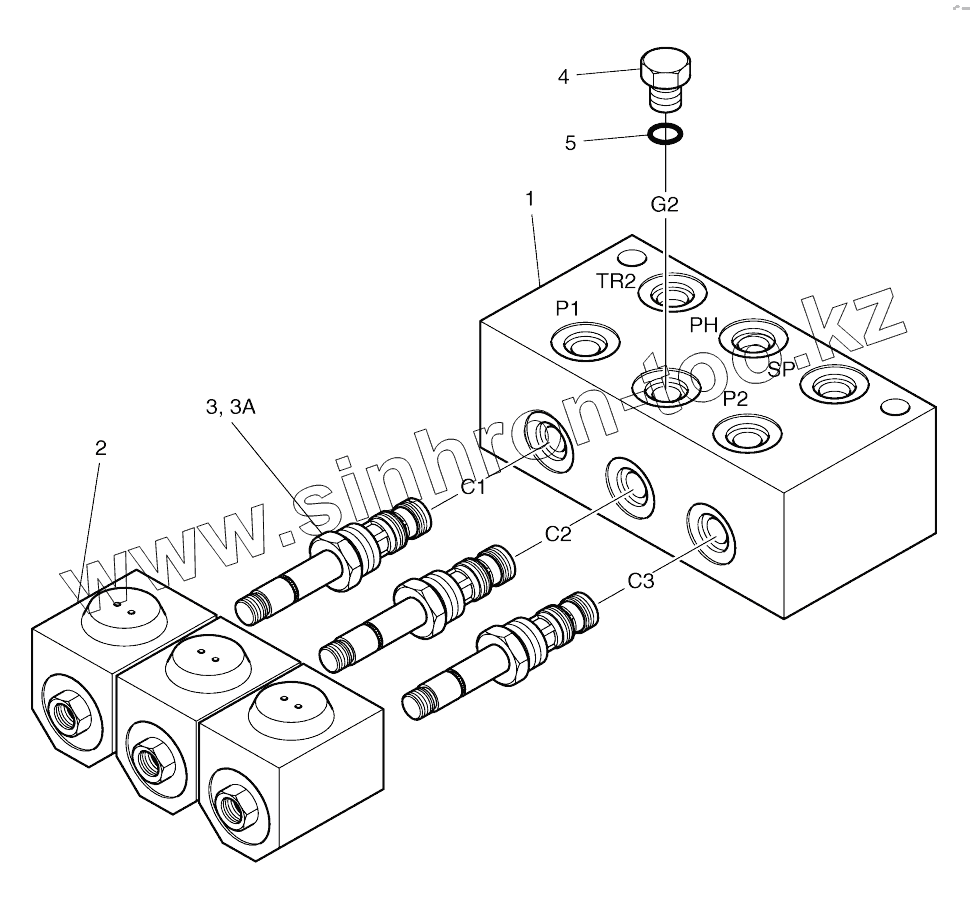

Позиция на иллюстрации	Заводской номер детали		Название детали
426-00163	426-00163		Solenoid valve
426-00163A	426-00163A		Solenoid valve
1	BLOCK		Block
2	VDL24		COIL
3	DF-S3A-00		SOLENOID SPOOL
3	TF-S3A-00		SOLENOID SPOOL
3A	DF-S3A-S-01		SEAL KIT
3A	TF-S3A-S-01		SEAL KIT
4	2181-1950D1		PLUG
5	S8000111		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
