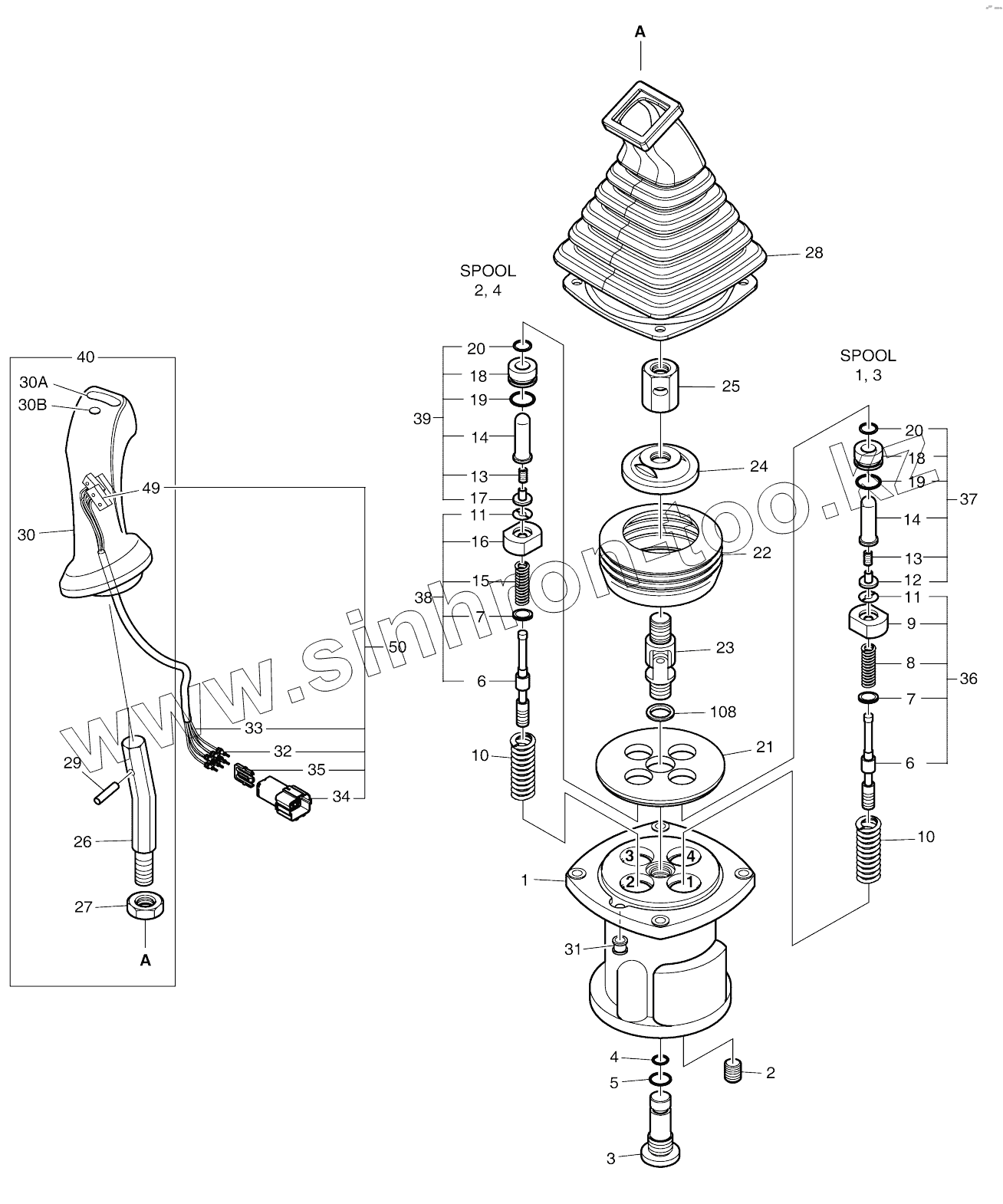

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). REMOTE CONTROL VALVE - 3
1
1
2
2
3
3
4
4
5
6
6
7
7
8
9
10
10
11
11
12
13
13
14
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
24
24
24
25
26
27
28
29
30
30
30A
30A
30B
31
32
33
34
35
36
36
37
37
37
38
38
39
39
39
40
40
40
49
50
108
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420-00344A | 420-00344A | REMOTE CONTROL VALVE(L.H) | |
| 410113-00149 | 410113-00149 | Valve assy, joystick, lh | |
| 410113-00149A | 410113-00149A | Valve assy, joystick, lh | |
| 420-00345A | 420-00345A | REMOTE CONTROL VALVE(R.H) | |
| 410113-00150 | 410113-00150 | Valve assy, joystick, rh | |
| 410113-00150A | 410113-00150A | Valve assy, joystick, rh | |
| 1 | JA1G1001 | CASE | |
| 2 | WPT18 | PLUG | |
| 3 | J95C1002 | PLUG | |
| 4 | P0010A | O-RING | |
| 5 | P0014 | O-RING | |
| 6 | J95C1003 | SPOOL | |
| 7 | J95C1004 | SHIM | |
| 8 | JA0D3001 | SPRING(1.3) | |
| 9 | JA0D3002 | SEAT;SPRING(1.3) | |
| 10 | J95C1007 | SPRING | |
| 11 | JA0D3003 | STOPPER | |
| 12 | J97A5011 | STOPPER(1.3) | |
| 13 | JA0D3004 | SPRING | |
| 14 | ROD | Rod, push | |
| 15 | JA0D3006 | SPRING(2.4) | |
| 16 | JA0D3007 | SEAT;SPRING(2.4) | |
| 17 | J97A5012 | STOPPER(2.4) | |
| 18 | PLUG | Plug | |
| 19 | P0020 | O-RING | |
| 20 | RSY12 | SEAL;ROD | |
| 21 | JA1G1002 | PLATE | |
| 21 | 250201-02097 | Plate | |
| 22 | J97A5018 | BOOT | |
| 22 | K9001128 | Boot | |
| 23 | J95C1012 | JOINT ASS'Y | |
| 24 | JA1G1004 | PLATE;SWASH | |
| 24 | K9001129A | Plate, swash | |
| 24 | 400901-00076 | Plate, swash | |
| 25 | J95C1014 | NUT;HEX. | |
| 26 | JA1D2001 | BAR;HANDLE | |
| 27 | HNM14 | NUT;HEX. | |
| 28 | JA1D2002 | BOOT | |
| 29 | SP0528 | PIN;SPRING | |
| 30 | 1.172-00004 | HANDLE ASS'Y | |
| 30 | 1.172-00017 | HANDLE ASS'Y | |
| 30A | 1.161-00016 | CAP;PEANUT | |
| 30A | 1.161-00021 | CAP;PEANUT | |
| 30B | 1.161-00017 | CAP;ROUND | |
| 31 | JA1G1003 | BUSHING | |
| 32 | TERMINAL | Terminal | |
| 33 | WIRE | Wire, seal | |
| 34 | SWP6PT | HOUSING | |
| 35 | SWP6P | HOLDER;REAR | |
| 36 | JA0D3009 | SPOOL KIT(1.3PORT) | |
| 36 | 410207-00527 | Spool kit | |
| 37 | JA0D3010 | PLUG KIT (1.3PORT) | |
| 37 | 430221-00922 | Plug kit | |
| 37 | 430221-01047 | Plug kit | |
| 38 | JA0D3011 | SPOOL KIT(2.4PORT) | |
| 38 | 410207-00528 | Spool kit | |
| 39 | JA0D3012 | PLUG KIT (2.4PORT) | |
| 39 | 430221-00923 | Plug kit | |
| 39 | 430221-01048 | Plug kit | |
| 40 | JA1G2001 | HANDLE KIT | |
| 40 | 110925-00367 | Handle kit, l.h | |
| 40 | 110925-00368 | Handle kit, r.h | |
| 49 | SWITCH | Switch | |
| 50 | K9001002 | SWITCH ASS'Y | |
| 108 | 110951-01142 | Spacer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
