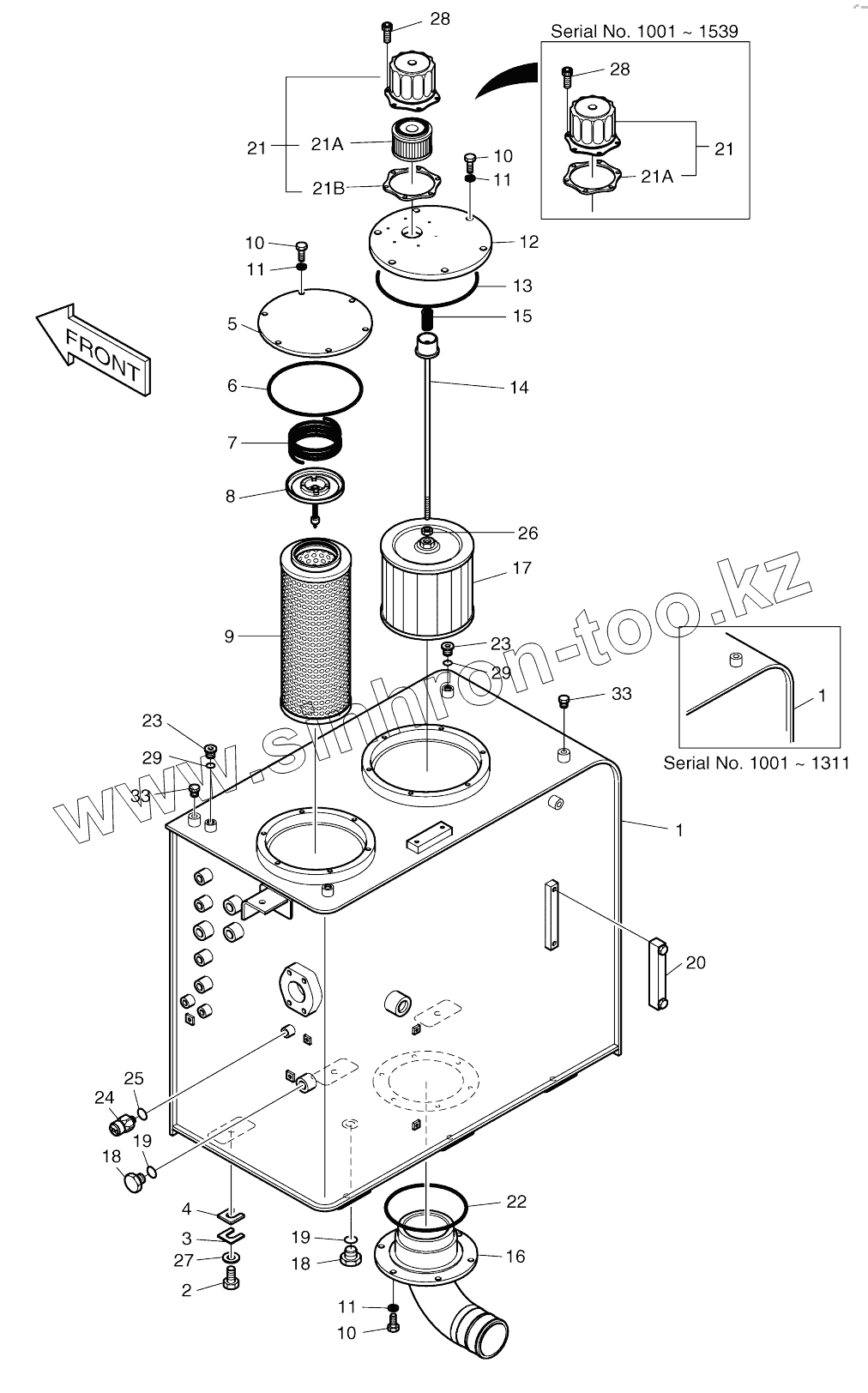

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). OIL TANK
470-00104A
1
1
1
1
1
1
2
3
4
5
6
7
8
8
9
10
10
10
11
11
11
12
12
13
14
15
16
17
18
18
19
19
20
21
21A
21A
21A
21A
21
21
21A
21A
21A
21A
21A
21A
21A
21A
21B
22
23
23
23
23
23
23
24
25
26
27
28
28
29
29
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 470-00104A | 470-00104A | Oil tank assy | |
| 1 | 470-00103A | Tank, oil | |
| 1 | 470-00103B | Tank, oil | |
| 2 | S0565561 | BOLT M16X2.0X65 | |
| 3 | 2114-1813 | SHIM D20X0.8T | |
| 4 | 2114-1814 | SHIM D20X1.6T | |
| 5 | 2473-1080A | COVER | |
| 6 | S8012000 | O-RING | |
| 7 | 2129-1393 | SPRING | |
| 8 | 2426-1175 | VALVE;BY-PASS | |
| 8 | 410128-00031 | Valve, by-pass | |
| 9 | 2474-9404A | ELEMENT;RETURN OIL | |
| 10 | S0512053 | BOLT M10X1.5X25 | |
| 11 | S5102603 | WASHER;SPRING M10 | |
| 12 | 2473-1088B | COVER | |
| 13 | S8011650 | O-RING | |
| 14 | 136-00002 | Rod | |
| 15 | 2129-1008 | SPRING | |
| 16 | 140-01349 | Pipe | |
| 17 | 2474-9016A | FILTER;SUCTION | |
| 18 | 2181-1950D7 | PLUG PF1/2 | |
| 19 | S8000181 | O-RING | |
| 20 | 2119-1007 | GAUGE;LEVEL | |
| 21 | 422-00027A | BREATHER;AIR | |
| 21A | 180-00200 | PACKING | |
| 21 | K1012685A | Breather, air | |
| 21 | 400811-00087 | Breather, air | |
| 21A | K1029257 | Element, air breather | |
| 21A | 400504-00254 | Element, air breather | |
| 21B | K9005662 | Gasket | |
| 22 | S8011200 | O-RING | |
| 23 | 2181-1890D2 | PLUG PT1/4 | |
| 23 | 2181-1950D1 | PLUG | |
| 24 | 2549-1135D2 | SWITCH;PRESSURE | |
| 25 | S8180221 | PACKING | |
| 26 | S4012733 | NUT M12 | |
| 27 | 114-00425 | Spacer | |
| 28 | 2120-2166D41 | BOLT;SOCKET M5X0.8X8 | |
| 29 | S8000111 | O-RING | |
| 33 | S0514653 | BOLT M12X1.75X16 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
