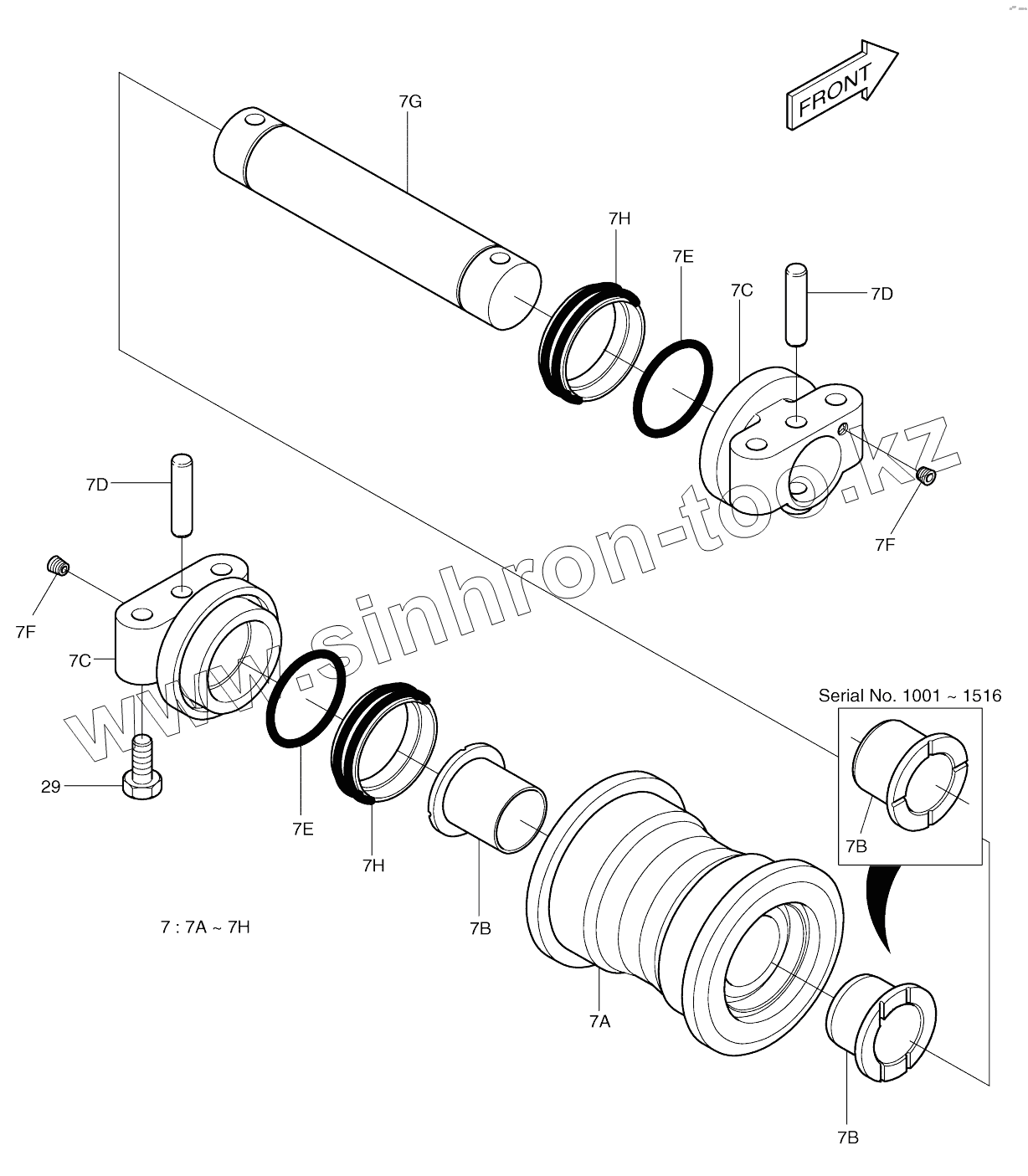

Позиция на иллюстрации
Заводской номер детали
Название детали
604-00011A
604-00011A
Track assy
7
2270-1098A
Roller, lower
7
2270-1098B
Roller, lower
7A
2270-1099A
Body, roller
7B
2110-1303
Bushing
7B
K1011738
Bushing
7C
2271-1037A
Collar
7C
K1011294A
Collar
7D
2123-1719
Pin
7E
S8010650
O-ring
7F
2181-1116D2
PLUG
7G
2220-1028A
Axle
7H
2180-9149A
Seal, group
7H
K1036458
Seal, group
29
S0766061
BOLT M16X1.5X90
29
S0766066
BOLT M16X1.5X90
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
