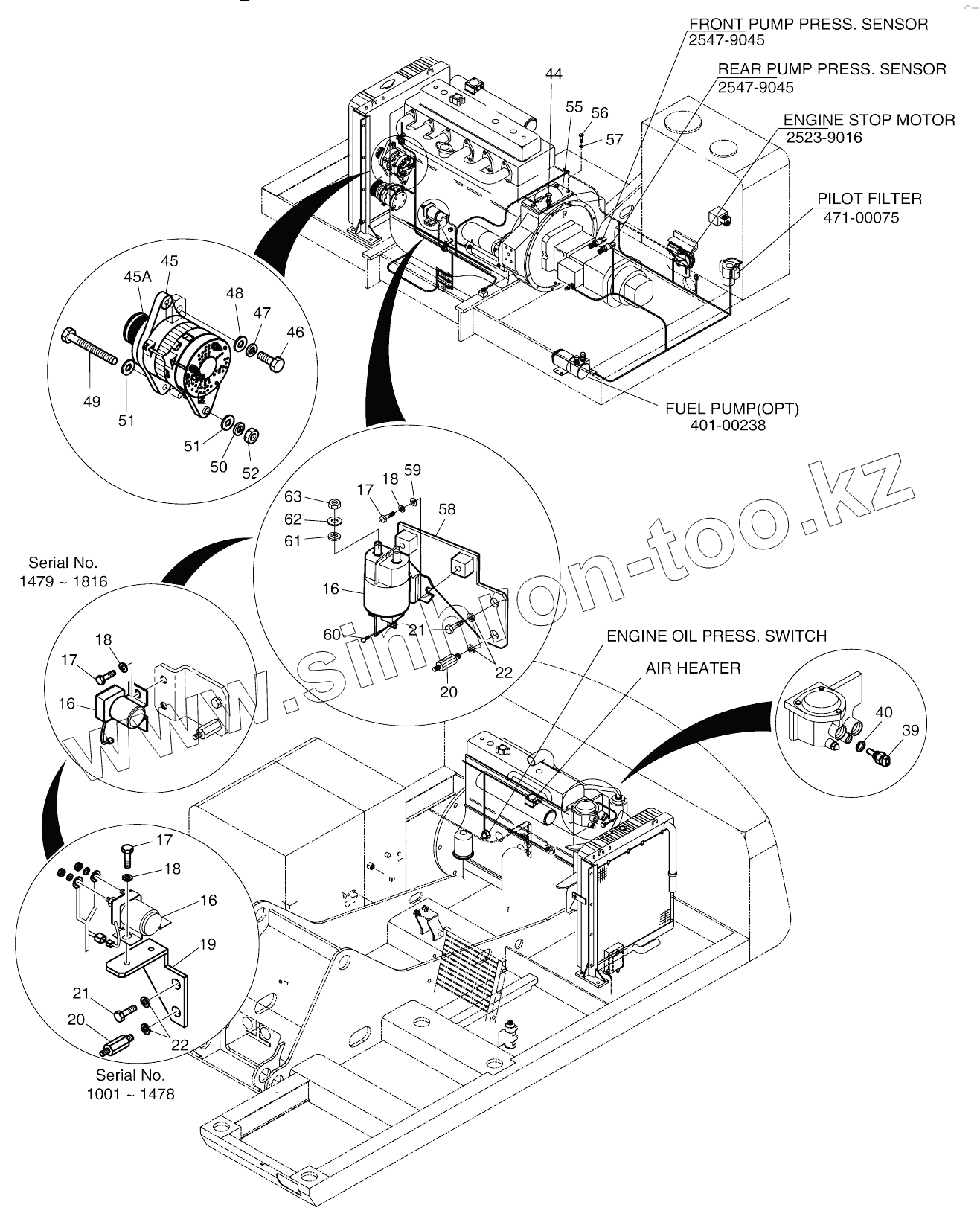

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). ELECTRIC PARTS (6) - ENGINE
16
16
16
16
16
16
17
17
17
17
17
17
18
18
18
18
18
18
19
20
20
20
20
21
21
21
21
22
22
22
22
39
40
44
45
45A
46
47
48
49
50
51
51
52
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 500-00138A | 500-00138A | Electric parts | |
| 300619-00615B | 300619-00615B | Electric assy, chassis | |
| 16 | 544-00007 | RELAY;PREHEAT | |
| 16 | 301202-00067 | Relay, pre heater | |
| 17 | S0504453 | BOLT M6X1.0X12 | |
| 17 | S0508666 | Bolt | |
| 18 | S5102303 | WASHER;SPRING M6 | |
| 18 | S5102503 | WASHER;SPRING | |
| 19 | 195-01967 | Bracket, relay | |
| 20 | 2120-2235 | BOLT;STUD M10X1.25X15/M8 | |
| 20 | 2120-2235 | BOLT;STUD M10X1.25X15/M8 | |
| 21 | S0711653 | Bolt | |
| 21 | S0711653 | Bolt | |
| 22 | S5102603 | WASHER;SPRING M10 | |
| 22 | S5102603 | WASHER;SPRING M10 | |
| 39 | 2547-9038B | SENSOR;WATER TEMP | |
| 40 | S8180251 | PACKING M16/D22 | |
| 44 | 2547-1015 | SENSOR;ENGINE SPEED | |
| 45 | 2502-9007B | ALTERNATOR 24V 60A | |
| 45A | 130707-00030 | Pulley, alternator | |
| 46 | S0760853 | BOLT M12X1.25X55 | |
| 47 | S5102703 | WASHER;SPRING M10 | |
| 48 | 2114-1058D54 | WASHER | |
| 49 | S0562653 | BOLT M12X1.75X160 | |
| 50 | S5102703 | WASHER;SPRING M10 | |
| 51 | S5010713 | WASHER;PLAIN | |
| 52 | S4012733 | NUT M12 | |
| 55 | 2197-1793 | BRACKET;SPEED SENSOR | |
| 56 | S0512053 | BOLT M10X1.5X25 | |
| 57 | S5102603 | WASHER;SPRING M10 | |
| 58 | 110406-01141 | Bracket | |
| 59 | S5010513 | WASHER;PLAIN M8 | |
| 60 | S3450573 | Screw | |
| 61 | S5102503 | WASHER;SPRING | |
| 62 | S5010513 | WASHER;PLAIN M8 | |
| 63 | S4012533 | NUT M8X1.25 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
