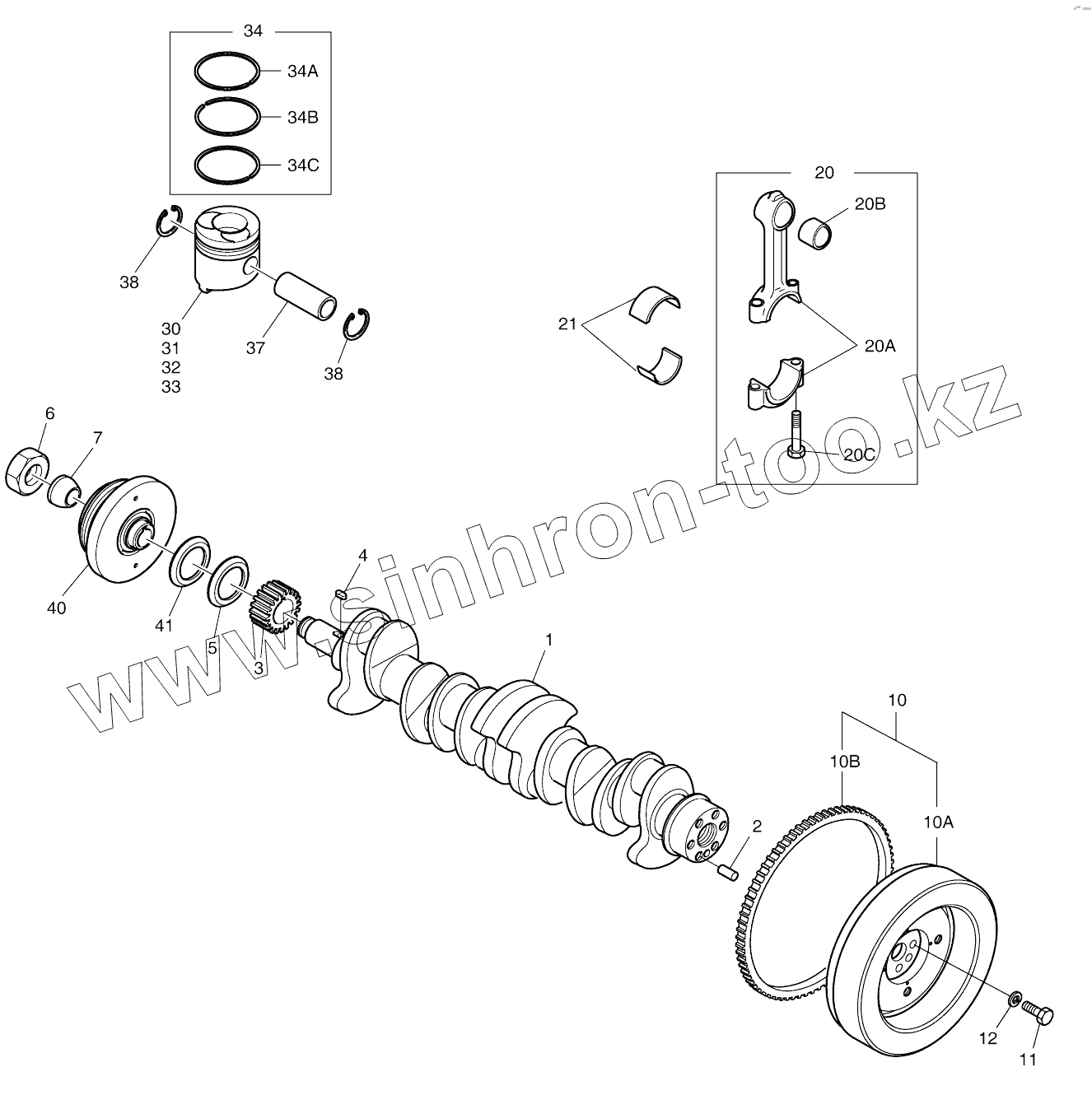

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). CRANK SHAFT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
10
10A
10B
11
12
20
20
20
20A
20A
20B
20C
21
21
21
21
30
30
30
31
31
32
32
33
33
34
34A
34B
34C
37
38
38
40
41
Позиция на иллюстрации Заводской номер детали Название детали
1 65.02101-0045A SHAFT;CRANK
2 06.22022-3212 PIN;PARALLEL
3 65.02115-0009 GEAR;CRANK SHAFT
4 65.91501-0006 KEY;SLIDING
5 65.02120-0002 RING;OIL THROWER
6 65.90501-0006 NUT
7 65.93020-0015 BUSH;TAPER
10 65.02301-5094 Flywheel assy
10A 65.02301-0086 Fly wheel
10B 65.02310-0006 GEAR;STARTING RING
11 06.01494-4506 BOLT M16X1.5X35
12 06.16731-2111 Washer
20 65.02401-6021 CONNECTING ROD ASS'Y
20 150121-00270 Rod assy, connecting
20 150121-00270A Rod assy, connecting
20A 65.02401-0163D ROD;CONNECTING
20A 150121-00319 Rod, connecting
20B 65.02405-0006 BUSH
20C 65.02411-0006A BOLT
21 65.02410-6083B METAL;CON-ROD STD
21 65.02410-6124B METAL;CON-ROD 0.125mm
21 65.02410-6125B METAL;CON-ROD 0.25mm
21 65.02410-6126B METAL;CON-ROD 0.5mm
30 65.02501-0410 Piston
30 65.02501-0416 PISTON(ALTV.)
30 65.02501-0440 Piston
31 65.02501-0416 PISTON(ALTV.)
31 65.02501-0443 Piston
32 65.02501-0417 PISTON;A GRADE
32 65.02501-0444 Piston-2, a grade
33 65.02501-0418 PISTON;B GRADE
33 65.02501-0445 Piston-2, b grade
34 65.02503-8058 Piston ring kit
34A RING, TOP Ring, top
34B RING, SECOND Ring, second
34C RING, OIL Ring, oil
37 65.02502-0082A PIN;PISTON
38 65.90815-0007 RING;RETAINING
40 65.02601-5024 Pulley, damper
41 65.02122-0001 COVER;DUST
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
