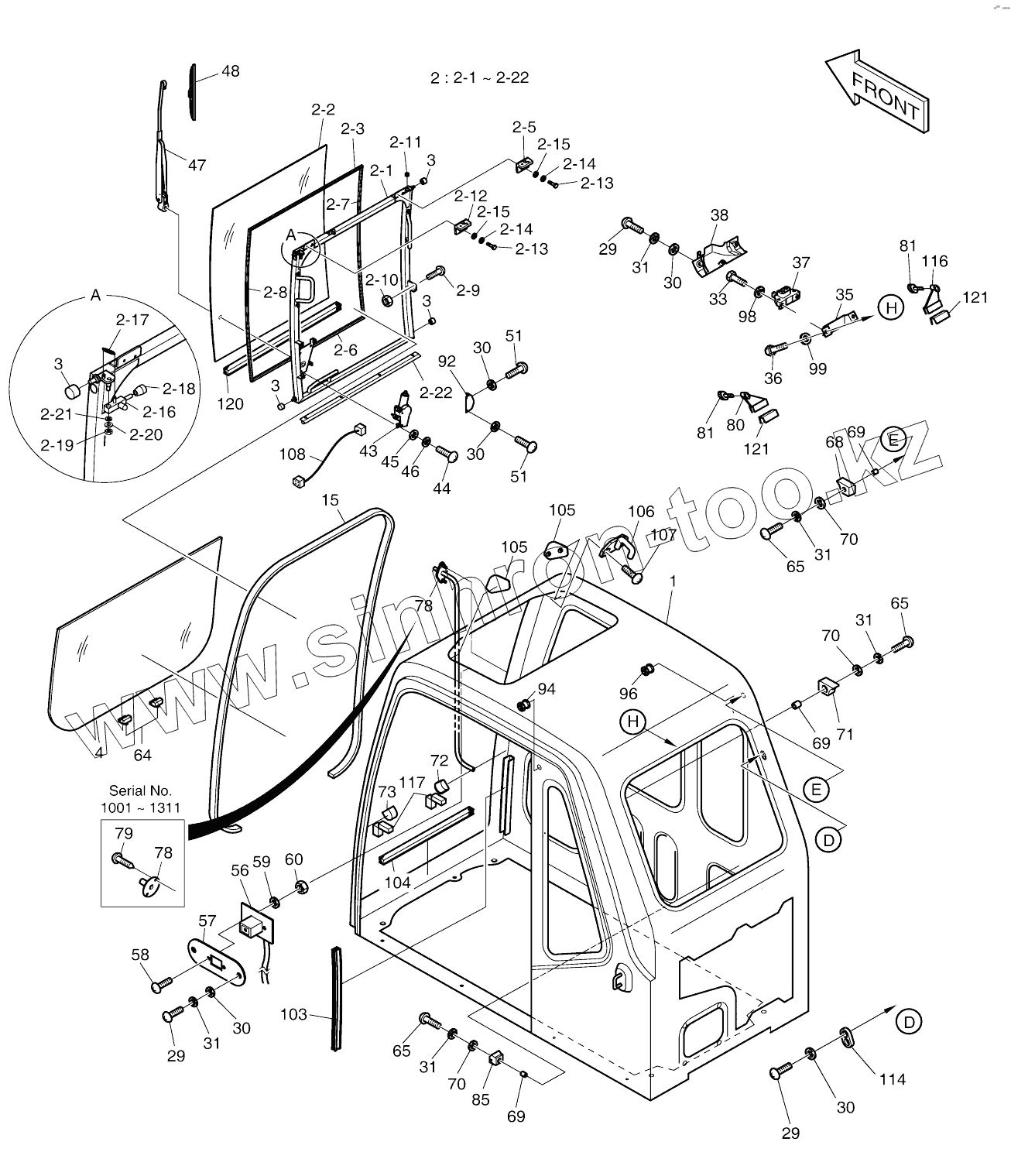

Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). CABIN (1)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2-1
2-1
2-1
2-1
2-1
2-1
2-1
2-1
2-1
2-2
2-2
2-3
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-13
2-14
2-14
2-15
2-15
2-16
2-17
2-18
2-19
2-20
2-21
2-22
2-22
3
3
3
3
4
15
29
29
29
30
30
30
30
30
31
31
31
31
31
33
35
36
37
38
43
44
45
46
47
48
51
51
56
57
58
59
60
64
65
65
65
68
69
69
69
70
70
70
71
72
73
78
78
78
78
78
78
79
80
81
81
85
92
94
94
96
98
99
103
104
104
104
104
104
104
105
105
106
107
108
114
116
117
117
120
120
121
121
Позиция на иллюстрации Заводской номер детали Название детали
622-00177H 622-00177H Cabin assy
622-00177J 622-00177J CABIN ASS'Y
622-00177K 622-00177K CABIN ASS'Y
622-00177L 622-00177L CABIN ASS'Y
622-00177M 622-00177M CABIN ASS'Y
622-00177N 622-00177N CABIN ASS'Y
622-00177Q 622-00177Q CABIN ASS'Y
220101-00687G 220101-00687G Cabin assy
1 CAB Cab assy
2 622-00191A Door assy, front
2 622-00191B DOOR ASS'Y;FRONT
2 622-00191C DOOR ASS'Y;FRONT
2-1 622-00194A Door, front
2-1 622-00194B DOOR;FRONT
2-1 622-00194C DOOR;FRONT
2-2 903-00055 Glass
2-2 903-00055A GLASS 6.76T
2-3 161-00395 DAMPER
2-5 125-00031A CATCH
2-6 161-00395 DAMPER
2-7 161-00395 DAMPER
2-8 161-00395 DAMPER
2-9 2161-2069 STOPPER
2-10 S4032633 NUT M10X1.25
2-11 2110-1347 BUSH 135L
2-12 125-00043 CATCH
2-13 2120-2166D36 BOLT M6X1.0X20
2-14 2114-2031D3 WASHER;SPRING M6
2-15 2114-1898D3 WASHER
2-16 133-00168 BAR
2-17 129-00146A SPRING
2-18 2160-1307 CAP;RUBBER
2-19 S4012533 NUT M8X1.25
2-20 2114-1898D2 WASHER M8
2-21 S5102503 WASHER;SPRING
2-22 K1000868 RUBBER 920L
3 2154-1033 ROLLER
4 903-00049 GLASS;FRONT LOWER
15 162-00025A STRIP;WEATHER 3800L
29 S3450973 SCREW M6X1.0X16
30 S5010313 WASHER;PLAIN
31 S5102303 WASHER;SPRING M6
33 2120-2166D5 BOLT M8X1.25X20
35 2197-1711 BRACKET;AUTO LOCK
36 2120-2166D4 BOLT M10X1.5X20
37 2125-9056 CATCH;AUTO LOCK
38 621-01990 COVER;AUTO LOCK
43 538-00009 MOTOR;WIPER
44 S3450833 SCREW M5X0.8X12
45 S5010213 WASHER PLAIN M5
46 S5102203 WASHER SPRING M5
47 2541-6020 WIPER ARM ASS'Y
48 507-00005 BLADE;WIPER
51 S3450953 SCREW M6X1.0X12
56 530-00212 HARNESS;CABIN LAMP
57 2891-1323 PLATE
58 S3450343 SCREW M3X0.5X10
59 S5020013 WASHER;PLAIN M3
60 S4010003 NUT M3X0.5
64 2161-2211 STOPPER;RUBBER
65 S3450993 SCREW M6X1.0X25
68 2161-2208 STOPPER;RUBBER RH
69 2140-1338 PIPE;SPACER
70 2114-1058D52 WASHER
71 2161-2207 STOPPER;RUBBER LH
72 2161-2210 STOPPER;RUBBER RH
73 2161-2209 STOPPER;RUBBER LH
78 2114-1855 WASHER ASS'Y
78 K1002429 NOZZLE ASS'Y
79 S3643359 SCREW;TAPPING
80 195-01549A BRACKET
81 120-00226 BOLT;KNOB M8X1.25X30
85 2161-2212 STOPPER;RUBBER
92 621-01991 COVER;WIPER MOTOR
94 2160-1004D50 Bushing, rubber
94 110-00230 BUSHING;RUBBER
96 2160-1310 BUSHING;RUBBER
98 2114-1898D2 WASHER M8
99 2114-1058D45 WASHER M10
103 2160-1026 TRIM
104 162-00027 STRIP;WEATHER L=920
104 2160-1023 RUBBER;CUSHION
104 162-00027 STRIP;WEATHER L=920
105 160-00038 RUBBER
106 142-00067 STRIKER
107 S3453118 SCREW M8X1.25X20
108 530-00251 HARNESS;W/MOTOR JOINT
114 2514-1013 HOLDER
116 195-02099 BRACKET
117 2161-2289 RUBBER;CUSHION
117 2161-2289A RUBBER;CUSHION
120 162-00030 STRIP;WEATHER
120 198-00036A STRIP;WEATHER
121 162-00031 TRIM;RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
