Каталог запасных частей к технике: Doosan SOLAR 255LC-V (DI EXP). ARM CYLINDER - LOCK VALVE
400305-00474
440-00044AKT
440-00188A
1
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
22
22
22
22
22
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

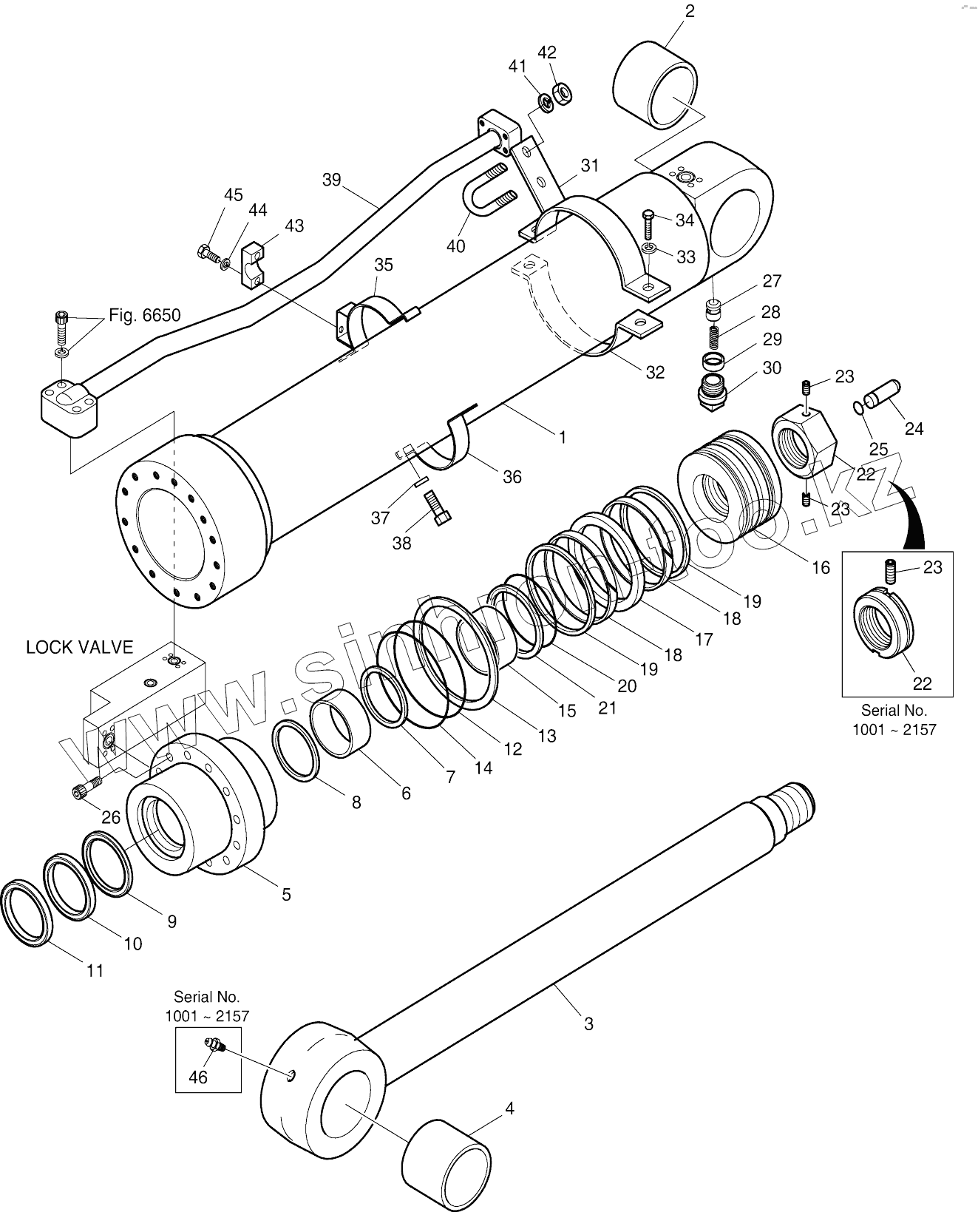

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400305-00474 | 400305-00474 | Cylinder, arm, lock v/v | |
| 440-00044AKT | 440-00044AKT | Seal kit, arm cyl. | |
| 440-00188A | 440-00188A | Cylinder, arm | |
| 1 | 420406-01331 | Tube assy | |
| 1 | 53A602-0 | Tube assy | |
| 2 | 00B122-0 | Bush, steel | |
| 3 | 53A605-0 | Rod assy | |
| 3 | 400337-00562 | Rod assy, cylinder | |
| 4 | 00B122-0 | Bush, steel | |
| 5 | 53A608-1 | Cover, rod | |
| 5 | 110508-18484 | Cover, rod | |
| 6 | E8412283 | Du-bush | |
| 7 | 00M315-0 | RING;RETAINING | |
| 8 | E5500320 | Seal, buffer | |
| 9 | E5303320 | U-packing | |
| 10 | E6020320 | Wiper, dust | |
| 11 | 00M498-0 | Ring, retaining | |
| 12 | E6311741 | O-ring | |
| 13 | 53B316-0 | Ring, back up | |
| 14 | E6490059 | O-ring | |
| 15 | 00C322-0 | Ring, cushion | |
| 16 | 53A611-0 | Piston | |
| 17 | E5130320 | Seal, slipper | |
| 18 | 00Z109-0 | Ring, wear | |
| 19 | 00R730-0 | Ring, slyd | |
| 20 | E6311441 | O-ring | |
| 21 | 53B441-0 | Ring, back up | |
| 22 | 53B432-0 | Nut, piston | |
| 22 | 120312-00478 | Nut, piston | |
| 23 | 120706-00007 | Screw, set | |
| 23 | E1330544 | SCREW | |
| 24 | 03A713-0 | PLUNGER;CUSHION | |
| 25 | 03A714-0 | RING;STOP | |
| 26 | E0502149 | BOLT;SOCKET | |
| 27 | 62E523-0 | Valve, check | |
| 28 | 03A729-0 | SPRING | |
| 29 | 03A728-0 | SUPPORT;SPRING | |
| 30 | E1500030 | PLUG;HEX. | |
| 31 | 53A612-0 | Pipe band assy-a | |
| 32 | 00P374-1 | Band, pipe | |
| 33 | E3110112 | WASHER;SPRING | |
| 34 | E0020963 | BOLT;HEX | |
| 35 | 53U510-1 | Pipe band assy-r | |
| 36 | 00P374-1 | Band, pipe | |
| 37 | E3110112 | WASHER;SPRING | |
| 38 | E0020693 | Bolt, hex | |
| 39 | 53A647-0 | Pipe assy-r | |
| 40 | 03A534-0 | U-bolt | |
| 41 | E3110102 | WASHER;SPRING | |
| 42 | E2022033 | NUT;HEX. | |
| 43 | 00C270-0 | Clamp, pipe | |
| 44 | E3110102 | WASHER;SPRING | |
| 45 | E0020733 | BOLT;HEX. | |
| 46 | E8841022 | NIPPLE;GREASE |
